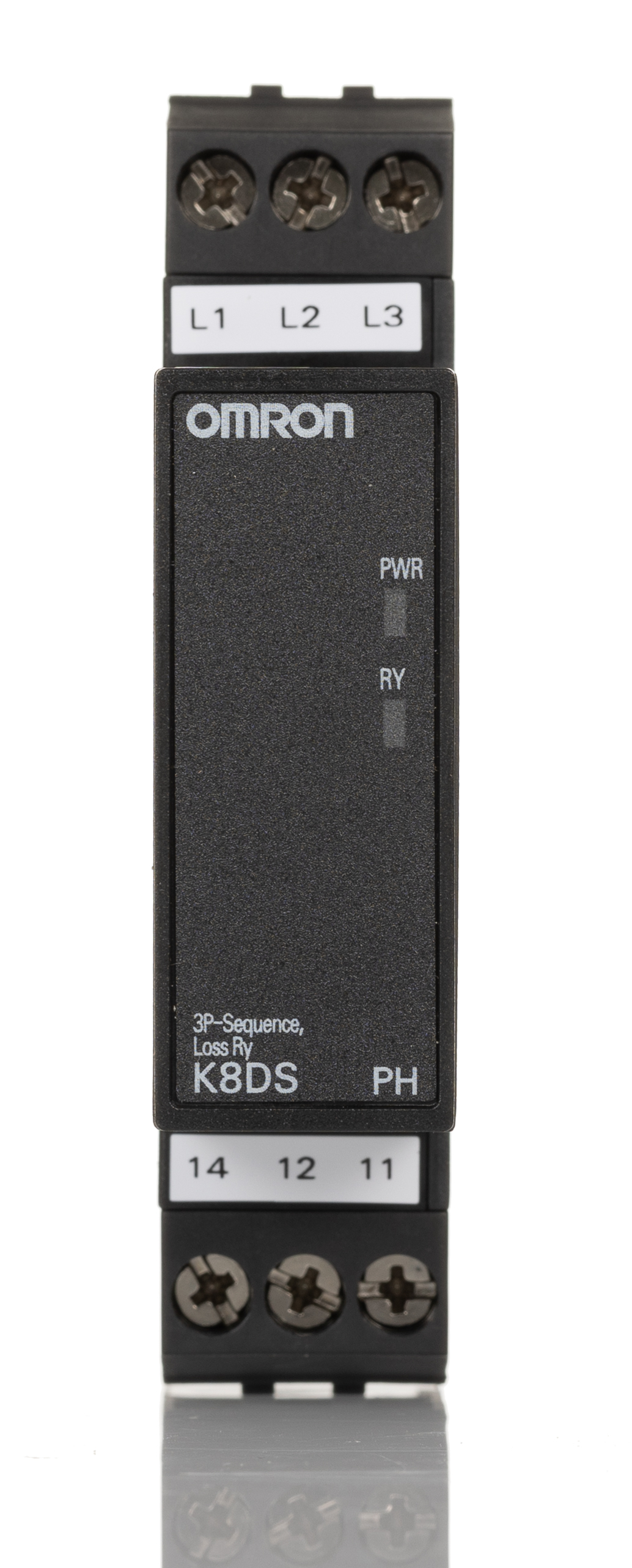

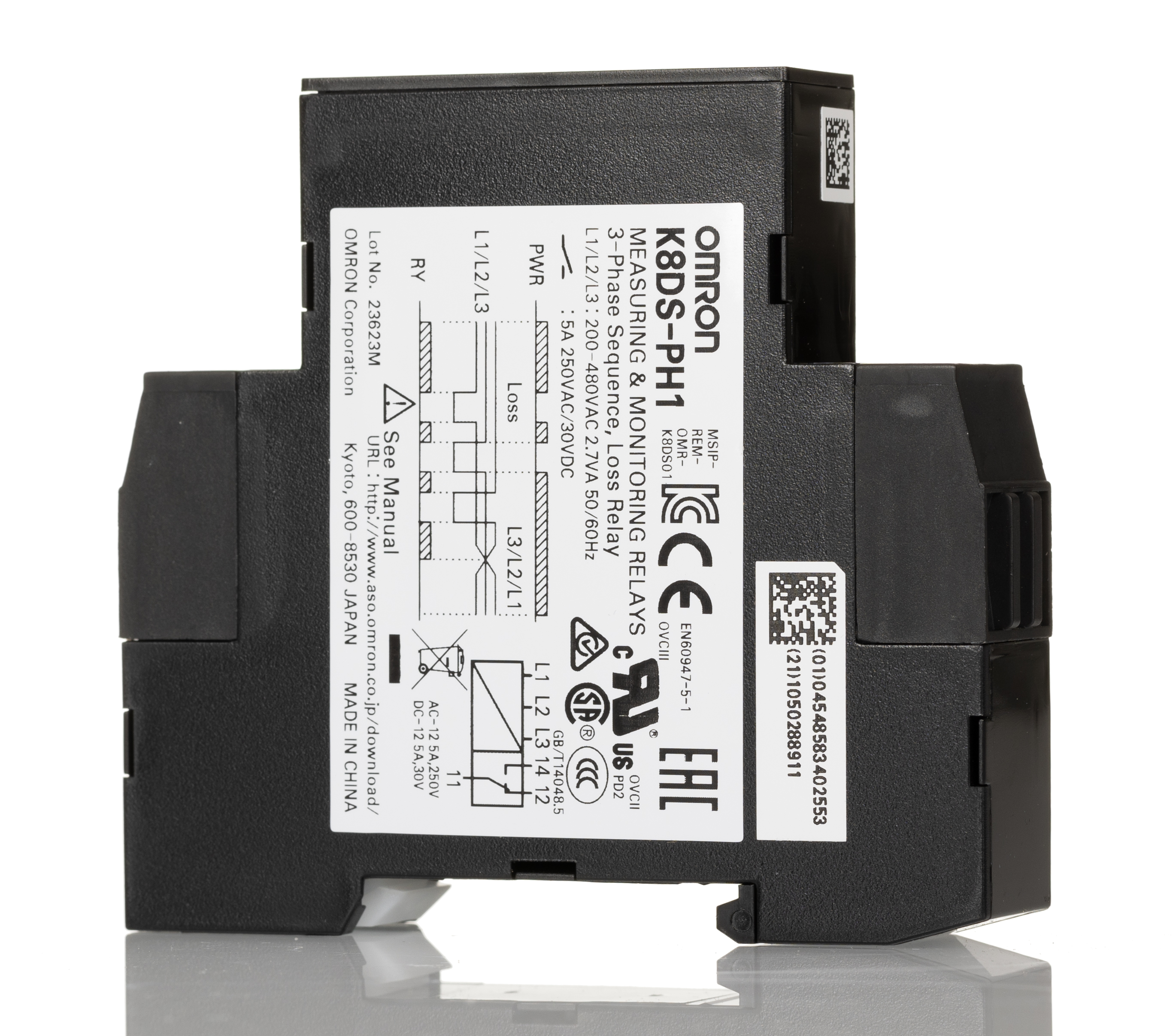

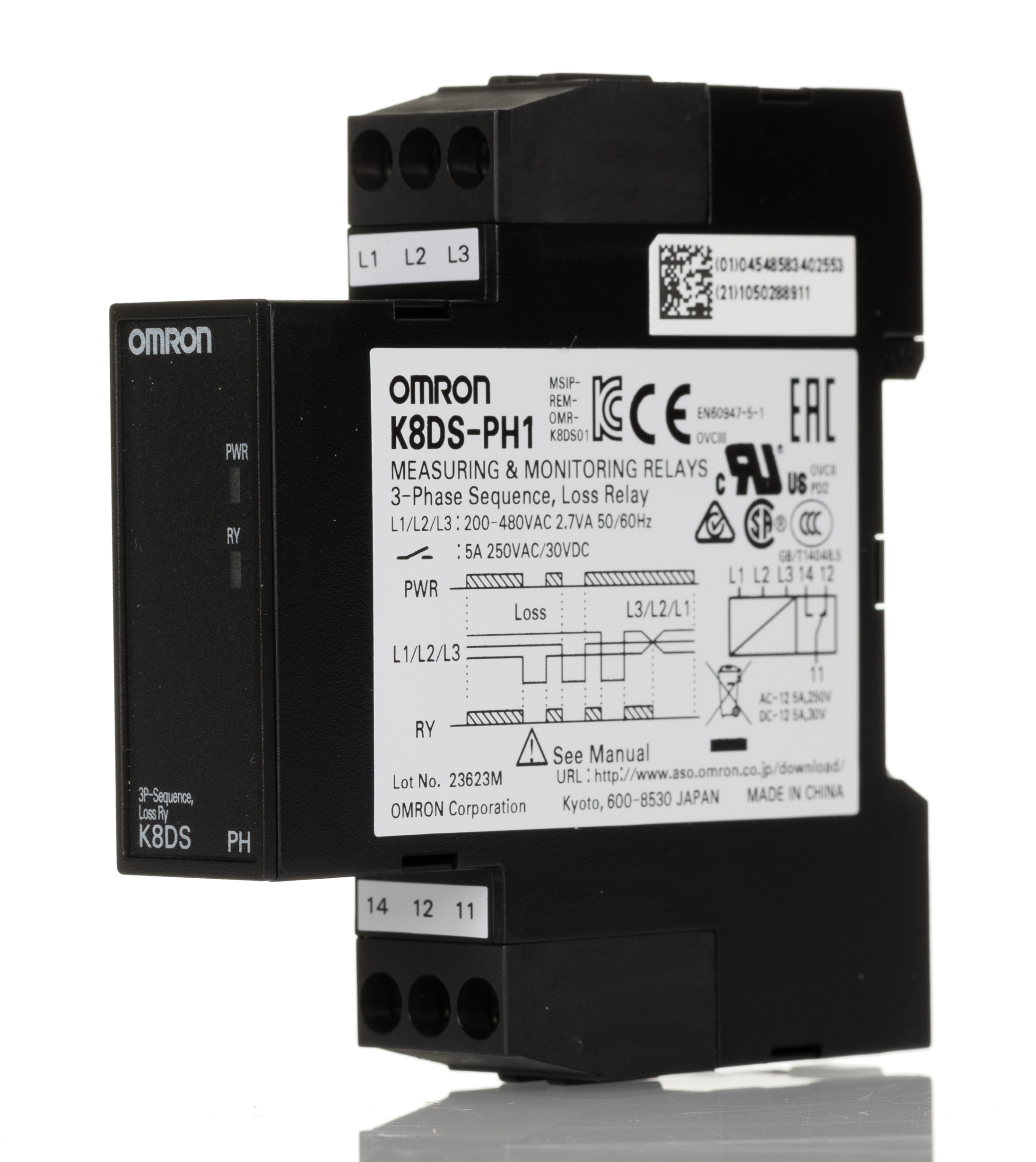

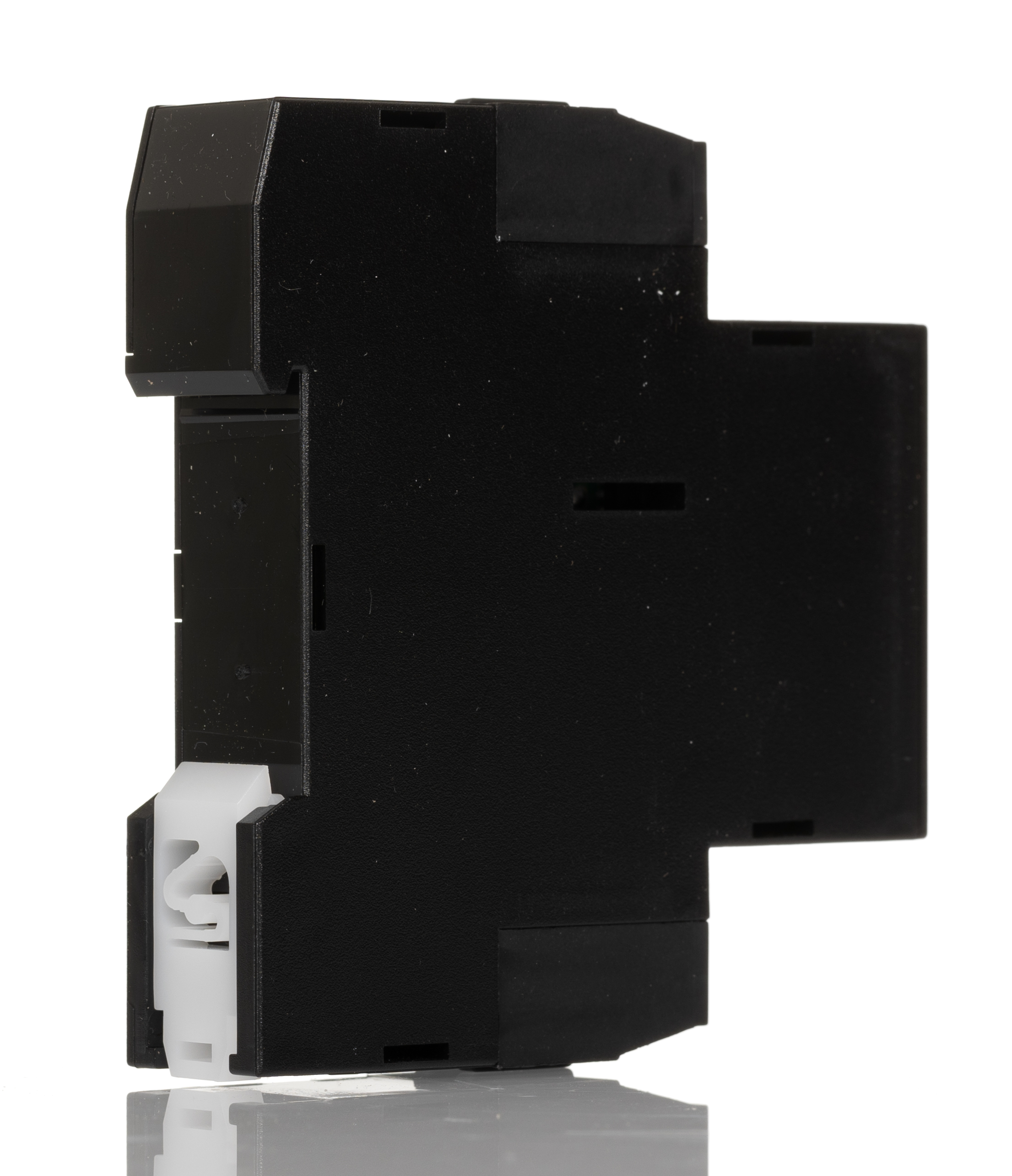

k8ds-ph1 Omron Monitoring Relay, 3 Phase, 200/480 V ac Monitor Range, SPDT, DIN Rail, 200V ac, 480 V ac
k8ds-ph1 Omron Monitoring Relay, 3 Phase, 200/480 V ac Monitor Range, SPDT, DIN Rail, 200V ac, 480 V ac
k8ds-ph1 Omron Monitoring Relay, 3 Phase, 200/480 V ac Monitor Range, SPDT, DIN Rail, 200V ac, 480 V ac
k8ds-ph1 Omron Monitoring Relay, 3 Phase, 200/480 V ac Monitor Range, SPDT, DIN Rail, 200V ac, 480 V ac
k8ds-ph1 Omron Monitoring Relay, 3 Phase, 200/480 V ac Monitor Range, SPDT, DIN Rail, 200V ac, 480 V ac
k8ds-ph1 Omron Monitoring Relay, 3 Phase, 200/480 V ac Monitor Range, SPDT, DIN Rail, 200V ac, 480 V ac
k8ds-ph1 Omron Monitoring Relay, 3 Phase, 200/480 V ac Monitor Range, SPDT, DIN Rail, 200V ac, 480 V ac
k8ds-ph1 Omron Monitoring Relay, 3 Phase, 200/480 V ac Monitor Range, SPDT, DIN Rail, 200V ac, 480 V ac
k8ds-ph1 Omron Monitoring Relay, 3 Phase, 200/480 V ac Monitor Range, SPDT, DIN Rail, 200V ac, 480 V ac

The Omron K8DS-PH series are phase-sequence phase-loss relay, using voltage detection method. Distinguishes between correct phases, phase sequence, and phase loss when power is turned ON. Its Output status can be monitored using LED indicator. Ideal to prevent reverse operation of motors. Operating temperature ranges between -20°C to +60°C

RoHs Compliant

Omron Monitoring Relay, 3 Phase, 200/480 V ac Monitor Range, SPDT, DIN Rail, 200V ac, 480 V ac

Manufacturer:
Omron
Manufacturer Part No:
K8DS-PH1
Enrgtech Part No:
ET21609785
Warranty:
Manufacturer
seller
22 - In Stock

Ships in 2-3 business days

pcs

Quantity
Unit Price (ex VAT)
1
£ 100.58
Order Today!
From: United Kingdom
Est Ship Date: 13 Sep, 2026
Est Fastest Delivery: 14 Sep, 2026
Quantity
Unit Price (ex VAT)
1
£ 60.82
Order Today!
From: United Kingdom
Est Ship Date: 13 Sep, 2026
Est Fastest Delivery: 14 Sep, 2026
Width:
17.5mm
Height:
80mm
Length:
74mm
Series:
K8DS
Function:
Monitoring
IP Rating:
IP20
Mount Type:
DIN Rail
Product Type:
Monitoring Relay
Terminal Type:
Screw
Contact Current:
5A
Electrical Phase:
3
Power Consumption:
2.7VA
Supply AC Voltage:
200, 480V ac
Switching Voltage:
200, 480V ac
Standards/Approvals:
Korean Radio Waves Act (Act 10564), UL 508 (Recognition), CSA:C22.2 No.14, EN 60947-5-1, CCC:GB/T 14048.5
Contact Configuration:
SPDT
Monitoring Voltage Range:
200/480 V ac
Maximum Operating Temperature:
60°C
Minimum Operating Temperature:
-10°C
Width:
17.5mm
Height:
80mm
Length:
74mm
Series:
K8DS
Dimensions:
80 x 74 x 17.5mm
Mounting Type:
DIN Rail
Standards Met:
CE
Terminal Type:
Screw
Electrical Phase:
3
Contact Configuration:
SPDT
Monitoring Application:
Phase
Frequency Sensing Range:
10 → 55Hz
Operating Temperature Range:
-10 → +60°C
Maximum Operating Temperature:
+60°C
Minimum Operating Temperature:
-10°C
