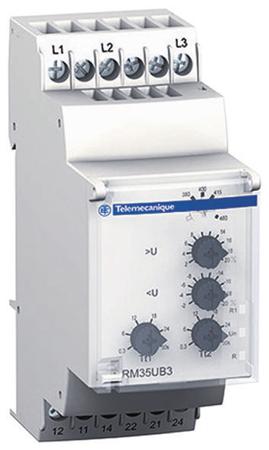

rm35ub3n30 Schneider Electric Voltage Monitoring Relay, 3 Phase, DPDT, 114 → 329V ac, DIN Rail

RM17 UB3 and RM35 UB3 Three-Phase Voltage Control Relay Schneider Electric RM17/35 UB measurement and control relays for 3 phase supplies, monitor correct sequences of phases L1, L2 and L3. It also monitors total loss of one or more phases, asymmetry, and over and undervoltage with independent adjustments. In the event of voltage fault, the relay opens at the end of the time delay set by the user, if the device is switched on with a measured fault, the relay remains open. Checks its own power supply
Clear hinged front cover
Potentiometer selects voltages between phases
LED display of output status
DIN Rail mounting

For more information please check the datasheets.

Schneider Electric Voltage Monitoring Relay, 3 Phase, DPDT, 114 → 329V ac, DIN Rail

Name: Schneider Electric Voltage Monitoring Relay, 3 Phase, DPDT, 114 → 329V ac, DIN Rail
Brand: Schneider Electric
SKU: ET5013035
Availability: InStock

Manufacturer:

Schneider Electric

Manufacturer Part No:

RM35UB3N30

Enrgtech Part No:

ET5013035

Warranty:

Manufacturer

£ 228.40

Checking for live stock

Monitoring Application:

Voltage

Electrical Phase:

Contact Configuration:

DPDT

Voltage Sensing Range:

114 → 329V ac

Voltage Sensitivity:

Absence of Neutral, Overvoltage and Undervoltage Between Neutral, Overvoltage and Undervoltage Between Phase

Mounting Type:

DIN Rail

Time Delay:

0.3 → 30s

Series:

Harmony Control

Better World Product:

Yes

Better World Verification:

Green Premium

Width:

35mm

Maximum Operating Temperature:

+50°C

Datasheet-ed5cdc22(datasheets)

Zelio Selection Guide-efdc27f9(datasheets)

Product Environmental Profile-644dea9f(datasheets)
