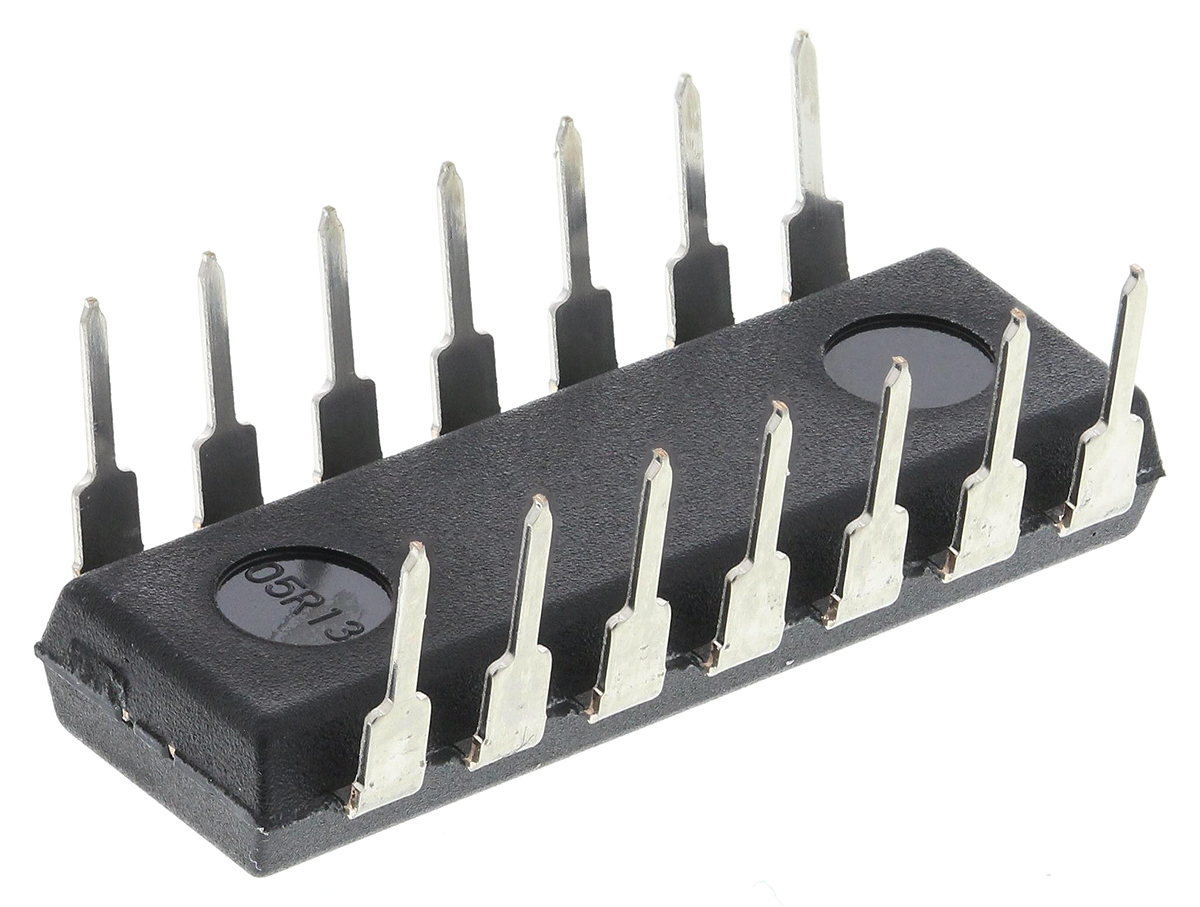

SN74121N Monostable Multivibrator 16mA, 14-Pin PDIP

Logic Family:

74

Logic Function:

Monostable Multivibrator

Number of Elements per Chip:

1

Maximum High Level Output Current:

-0.4mA

Maximum Low Level Output Current:

16mA

Minimum Pulse Width:

50 ns

Maximum Propagation Delay Time @ Maximum CL:

80 ns @ 5 V

Maximum Quiescent Current:

13mA

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

14

Dimensions:

19.3 x 6.35 x 4.57mm

Height:

4.57mm

Length:

19.3mm

Minimum Operating Temperature:

0 °C

Maximum Operating Temperature:

+70 °C

Minimum Operating Supply Voltage:

4.75 V

Maximum Operating Supply Voltage:

5.25 V

Width:

6.35mm
