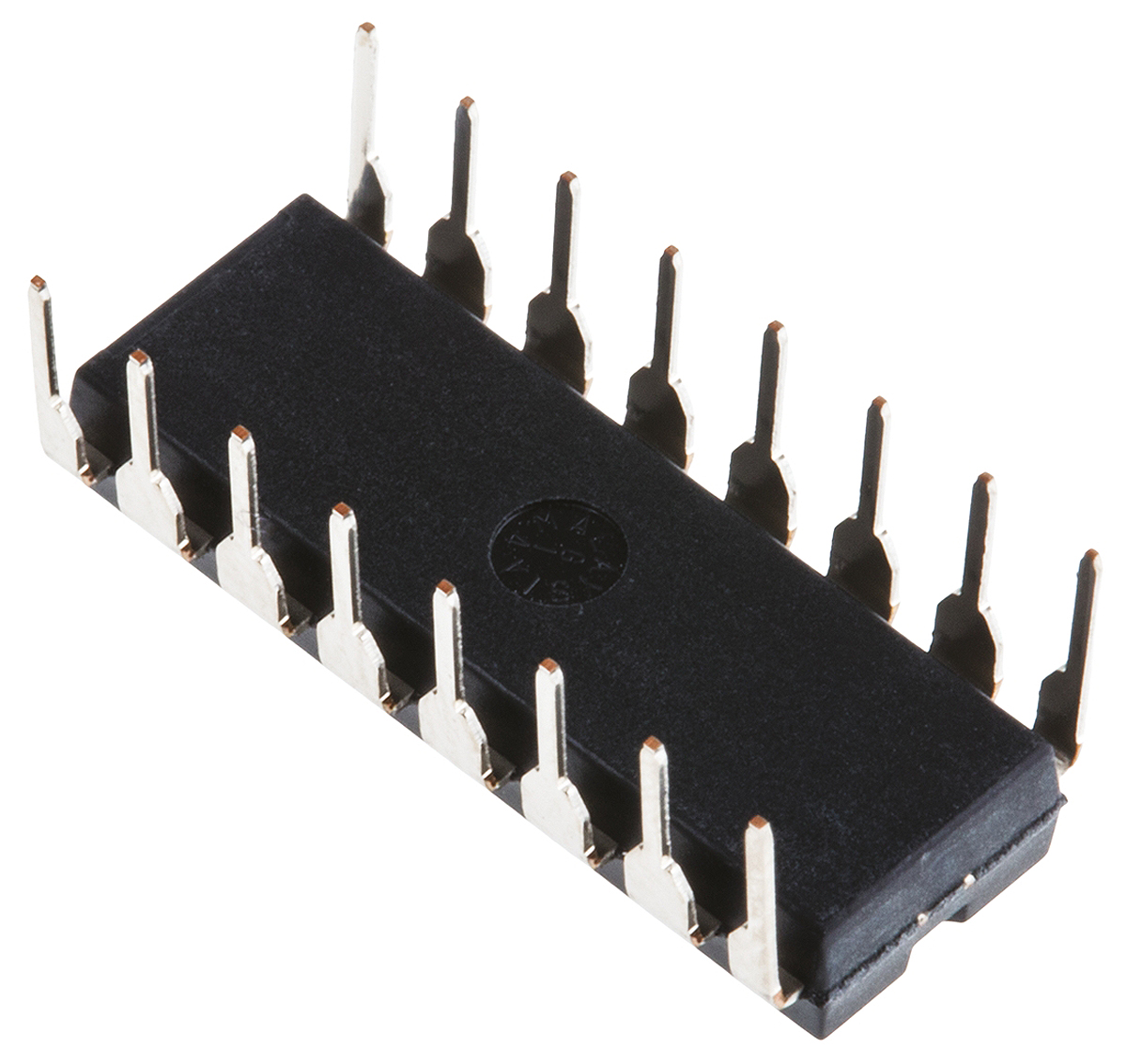

TC74HC4538AP(F), Dual Monostable Multivibrator 5.2mA, 16-Pin PDIP

Logic Family:

HC

Logic Function:

Monostable Multivibrator

Number of Elements per Chip:

2

Maximum High Level Output Current:

-5.2mA

Maximum Low Level Output Current:

5.2mA

Minimum Pulse Width:

13 ns

Maximum Propagation Delay Time @ Maximum CL:

250 ns @ 2 V

Maximum Quiescent Current:

0.004mA

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

16

Dimensions:

19.25 x 6.4 x 3.5mm

Height:

3.5mm

Length:

19.25mm

Maximum Operating Temperature:

+85 °C

Minimum Operating Supply Voltage:

2 V

Width:

6.4mm

Maximum Operating Supply Voltage:

6 V

Minimum Operating Temperature:

-40 °C
