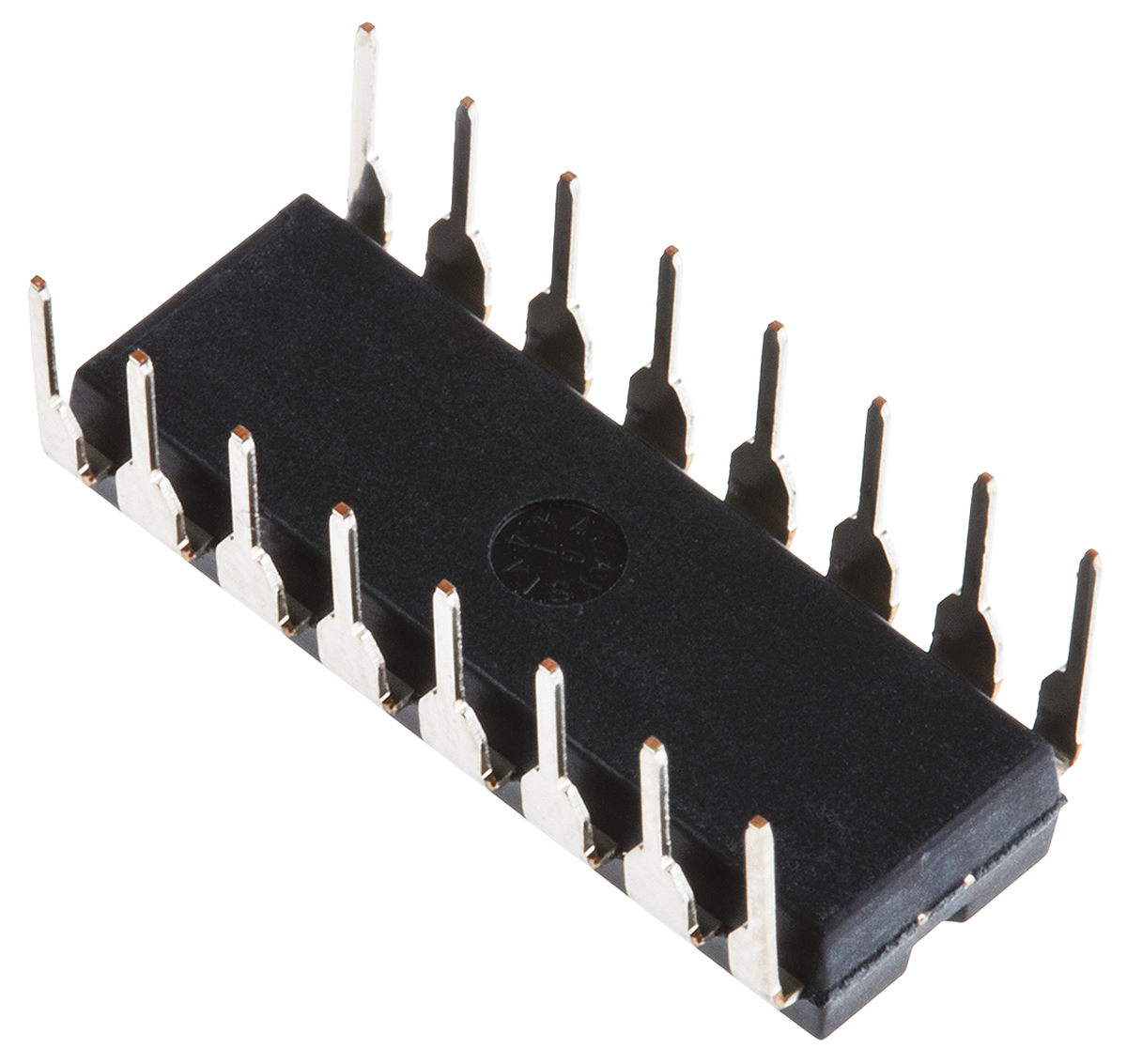

TC4538BP(F), Dual Monostable Multivibrator, 16-Pin PDIP

Logic Family:

4000

Logic Function:

Monostable Multivibrator

Number of Elements per Chip:

2

Minimum Pulse Width:

25 ns

Maximum Propagation Delay Time @ Maximum CL:

760 ns @ 5 V

Maximum Quiescent Current:

20mA

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

16

Dimensions:

19.25 x 6.4 x 3.5mm

Height:

3.5mm

Length:

19.25mm

Width:

6.4mm

Maximum Operating Supply Voltage:

18 V

Maximum Operating Temperature:

+85 °C

Minimum Operating Temperature:

-40 °C

Minimum Operating Supply Voltage:

3 V
