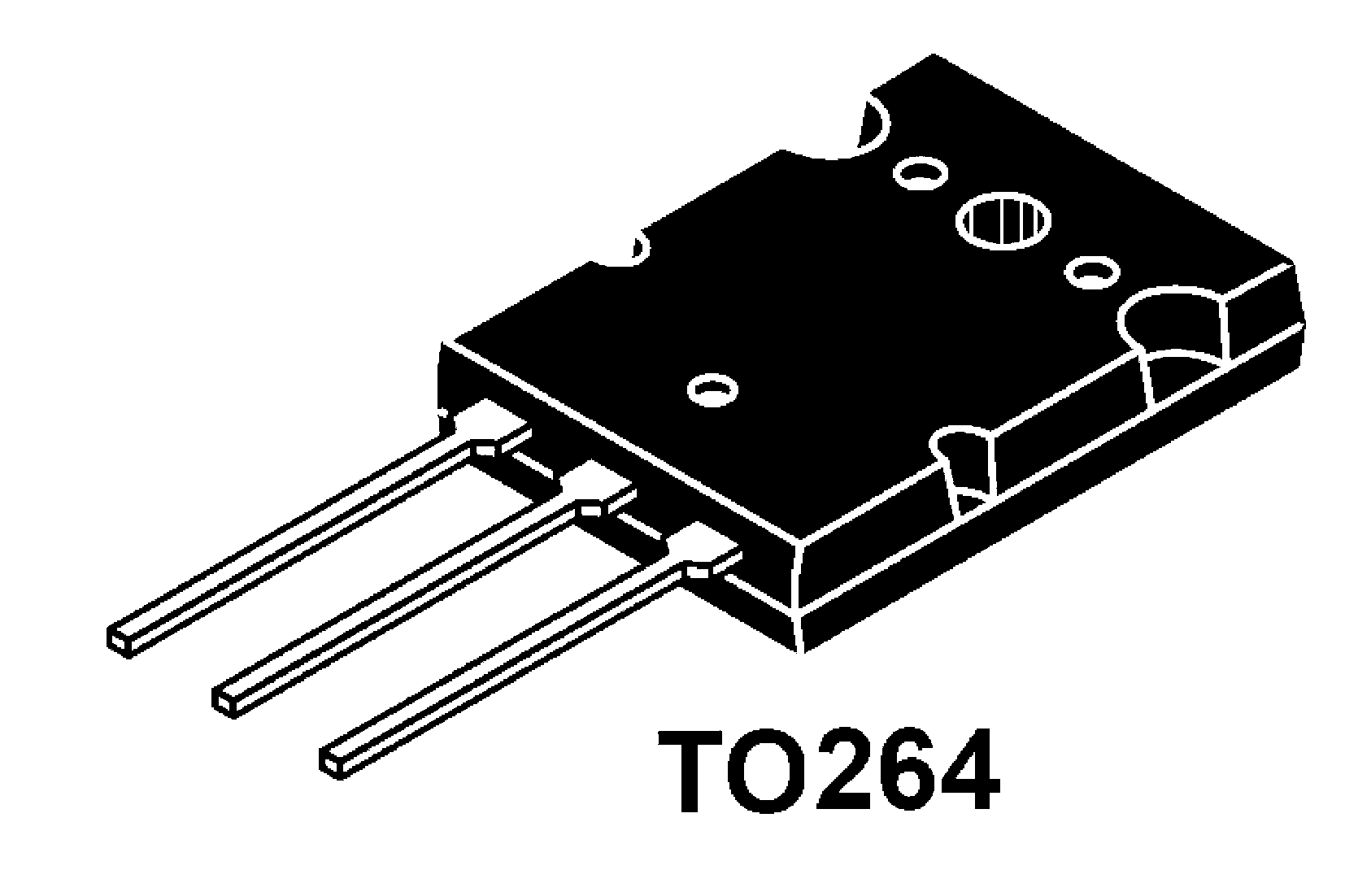

N-Channel MOSFET, 78 A, 500 V, 3-Pin TO-264 IXFK78N50P3

Channel Type:

N

Maximum Continuous Drain Current:

78 A

Maximum Drain Source Voltage:

500 V

Package Type:

TO-264

Series:

HiperFET, Polar3

Mounting Type:

Through Hole

Pin Count:

3

Maximum Drain Source Resistance:

68 mΩ

Channel Mode:

Enhancement

Maximum Gate Threshold Voltage:

5V

Maximum Power Dissipation:

1.13 kW

Transistor Configuration:

Single

Maximum Gate Source Voltage:

-30 V, +30 V

Width:

5.13mm

Maximum Operating Temperature:

+150 °C

Number of Elements per Chip:

1

Typical Gate Charge @ Vgs:

147 nC @ 10 V

Transistor Material:

Si

Length:

19.96mm

Height:

26.16mm

Minimum Operating Temperature:

-55 °C
