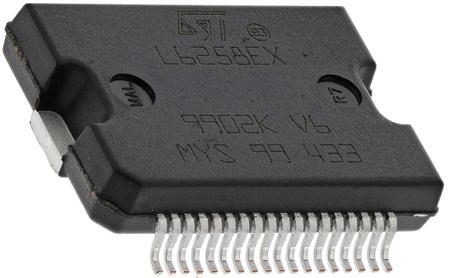

E-L6258EX, Stepper Motor Driver IC, 40 V 1.5A 36-Pin, PowerSO

Motor Type:

Stepper

Output Configuration:

Dual Full Bridge

Maximum IGBT Collector Current:

1.5A

Maximum Collector Emitter Voltage:

40 V

Mounting Type:

Surface Mount

Package Type:

PowerSO

Maximum Operating Supply Voltage:

40 V

Pin Count:

36

Minimum Operating Supply Voltage:

12 V

Height:

3.6mm

Dimensions:

16 x 11.1 x 3.6mm

Maximum Operating Temperature:

+150 °C

Length:

16mm

Width:

11.1mm
