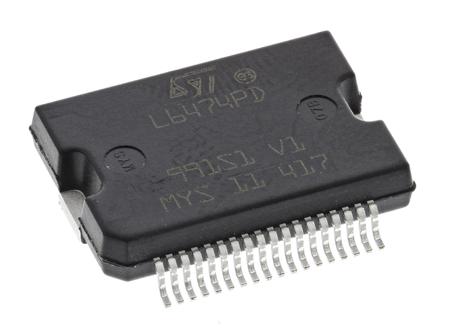

L6474PD, Stepper Motor Driver IC, 45 V 3A 36-Pin, PowerSO

Motor Type:

Stepper

Output Configuration:

Bipolar

Maximum IGBT Collector Current:

3A

Maximum Collector Emitter Voltage:

45 V

Mounting Type:

Surface Mount

Package Type:

PowerSO

Maximum Operating Supply Voltage:

45 V

Pin Count:

36

Minimum Operating Supply Voltage:

4 V

Typical Switching Frequency:

800kHz

Dimensions:

16 x 11.1 x 3.3mm

Height:

3.3mm

Length:

16mm

Width:

11.1mm

Minimum Operating Temperature:

-45 °C

Maximum Operating Temperature:

+150 °C
