The miniaturized low profile PCB antenna is based on smart The Stripe antenna technology. It offers high efficiency and optimal performance for applications within the 868MHz ISM Band. With customizable cable lengths and connectors, this antenna is versatile and easy to install.
Efficiency of 50.46% for reliable performance
Compact dimensions of 34mm*7mm*0.8mm (PCB) and 16mm*6mm*7mm (foam)
Compatible with Hirose U.FL connector for versatile connectivity options
Easy installation with 3M Adhesive on the foam attachment
Omni-Directional radiation pattern for enhanced coverage
Compact dimensions of 34mm*7mm*0.8mm (PCB) and 16mm*6mm*7mm (foam)
Compatible with Hirose U.FL connector for versatile connectivity options
Easy installation with 3M Adhesive on the foam attachment
Omni-Directional radiation pattern for enhanced coverage

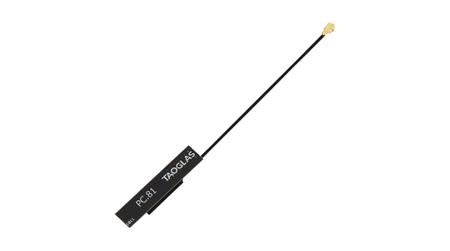

PC81.07.0100A.DB Multiband Antenna with MHF Connector, ISM Band
Manufacturer:
Taoglas
Manufacturer Part No:
PC81.07.0100A.DB
Enrgtech Part No:
ET28330306
Warranty:
Manufacturer
£ 12.28
Checking for live stock
RF Protocols:
ISM Band
Frequency Range:
868 → 870 MHz
Connector Type:
MHF
Gain:
2.5dBi
Internal/External:
Internal
Antenna Mounting Type:
Adhesive
Series:
SPE-12-8-85/B/SS
