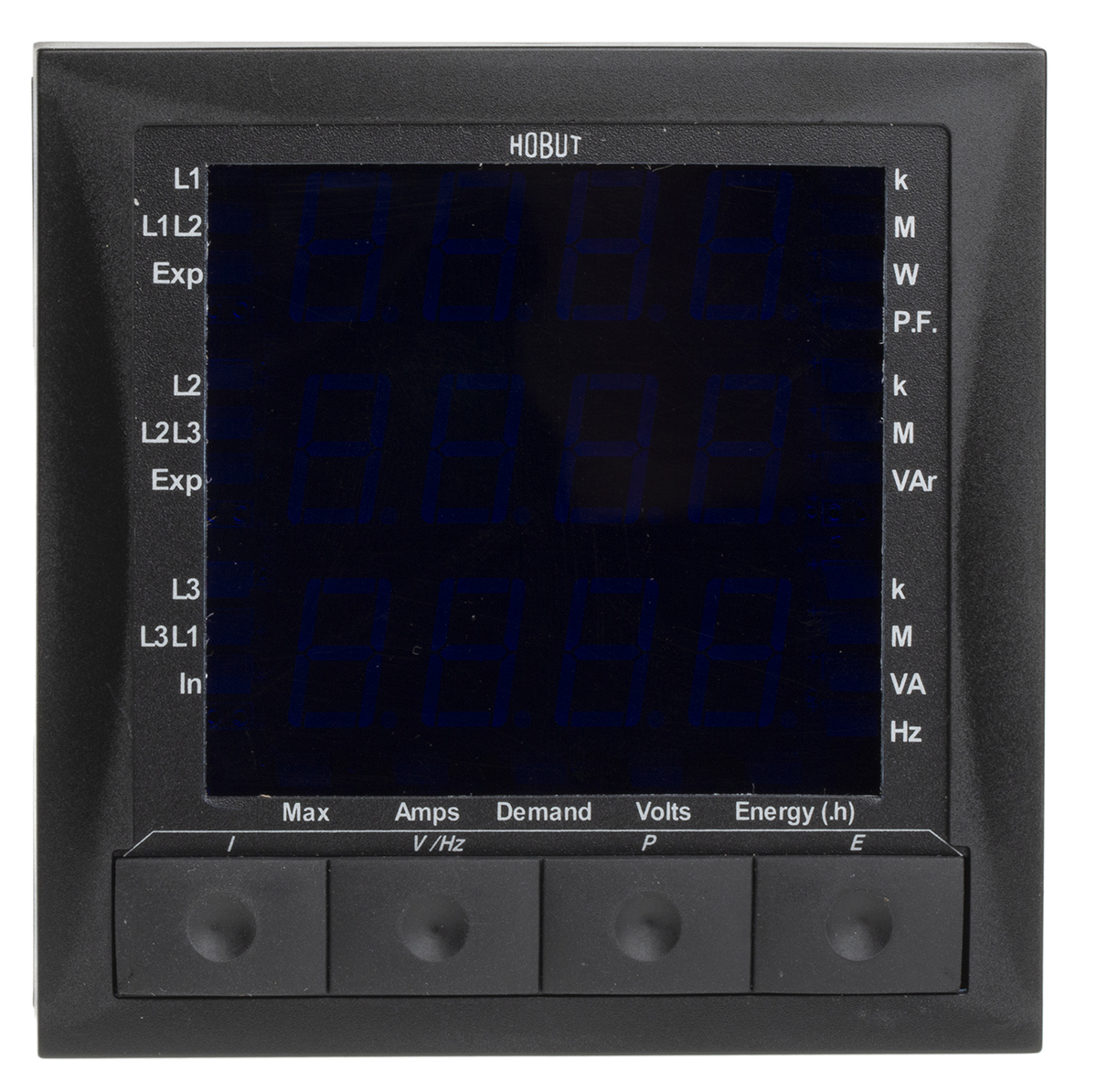

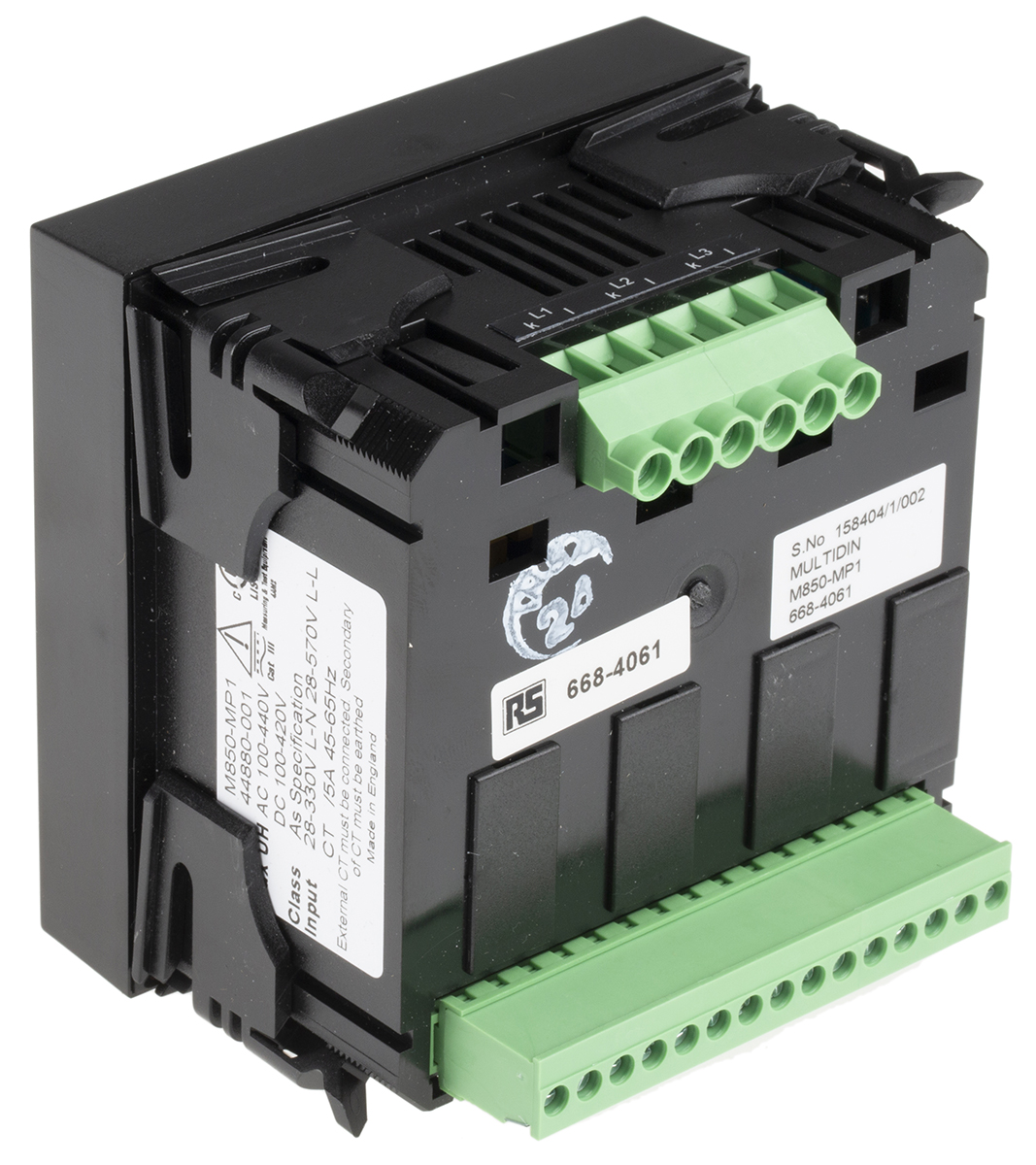

HOBUT Multi-Function Meter The HOBUT Multi-Function meter is a multifunction, easy to use universal LCD power indicator that features 96mm x 96mm moulded cases and selectable 3-colour backlight LCD screens. It is easy to use and features user-programmable CT and VT ratios and can be used on any single or 3-phase system with any input voltage without reprogramming. This multifunction meter measures current, energy, frequency, power and voltage.
Note:
Both RS485 output 668-4070 (Modbus protocol) and pulsed output 668-4073 (for Wh or VArh) are plug-in options Features and Benefits 1A or 5A CT
AC or DC AUX
Cost effective
Current transformer ratio
Cut-out height is 96mm
Cut-out width is 96mm
Depth is 82mm
Input voltage ranges between 28V and 570V
Number of digits are four
Operating temperature ranges between 0°C and 60°C
Security code access for programming
Selectable screen colour
Voltage transformer ratio Applications Building management systems
Gensets
Low, medium and high voltage control panels
Power management Certifications ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
CE certified
