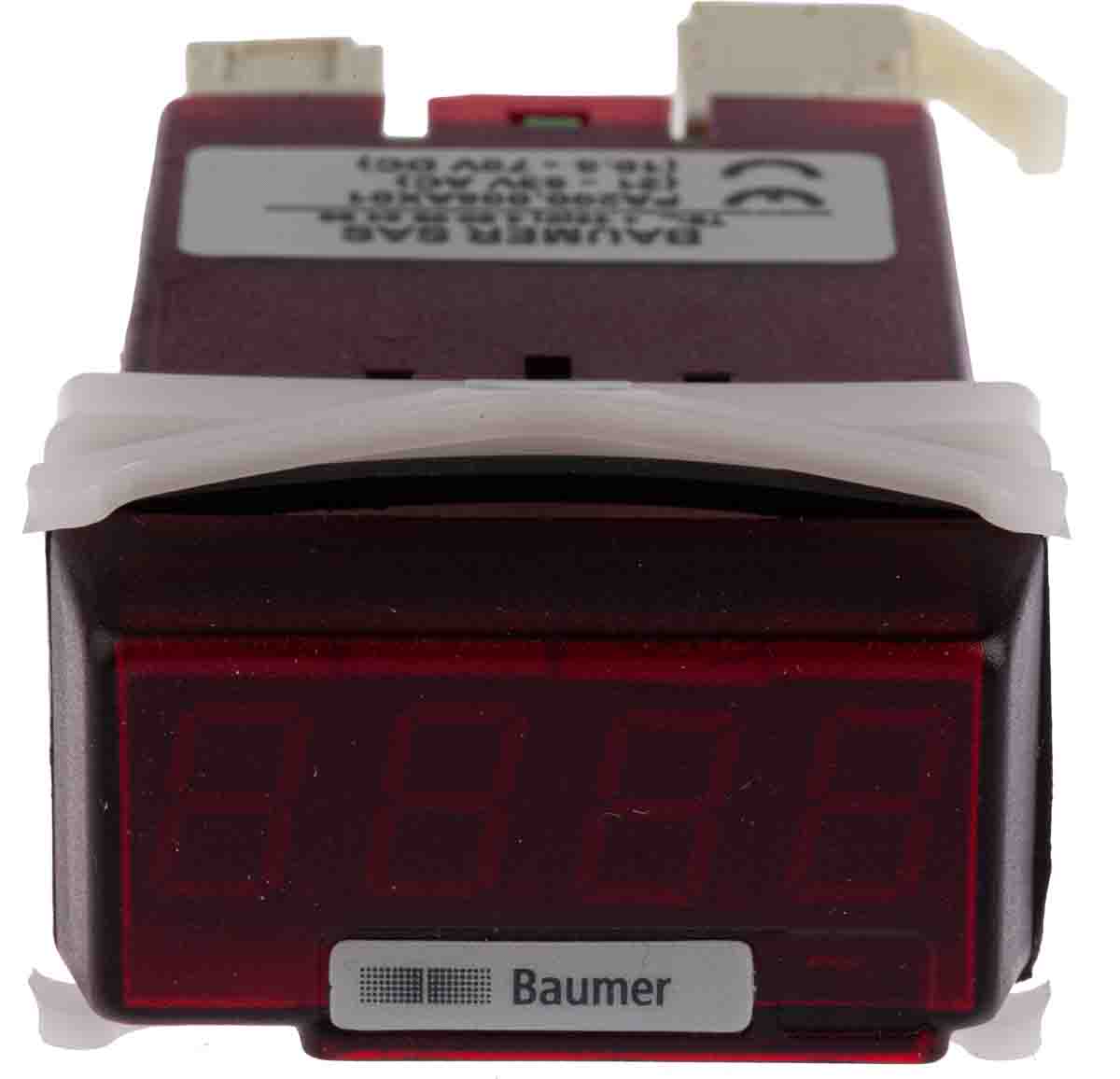

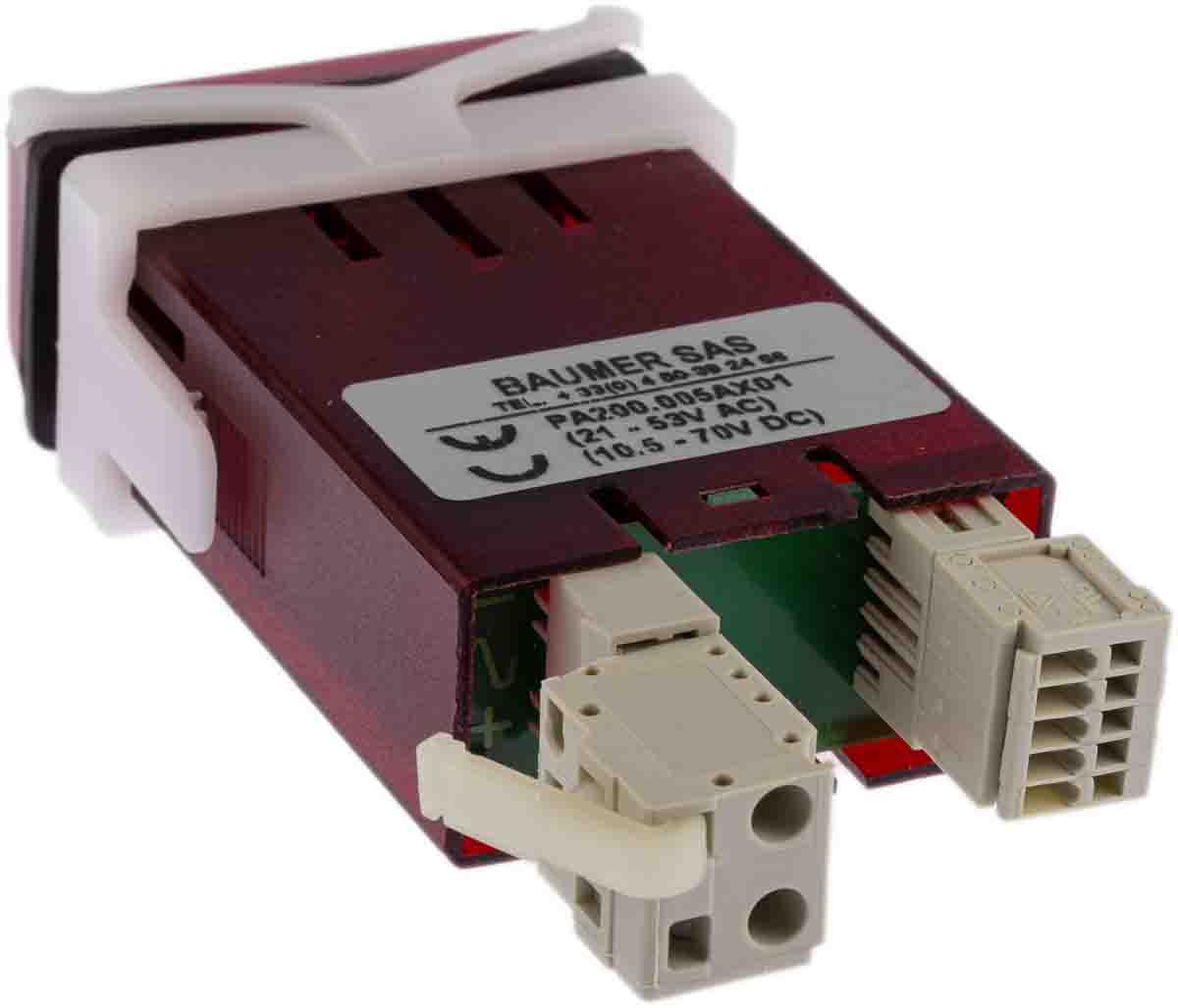

Baumer Multi-Function Meter The Baumer Multi-Function meter is a programmable process indicator with an LED display. It is compatible with all the process signals within the range of ±10VDC or +/-20 mADC. Its continuous voltage indicator indicates voltage rating ranging between ±20V and ±200 V and the external shunt direct indicator indicates voltage up to 100mV. Features and Benefits Current input is ±20 mA
Cut-out height is 22.5mm
Cut-out width is 45mm
DIN housing is 48mm x 24mm
Display range can be linearized
Operating temperature ranges between -10°C and 60°C
Power consumption is 1.8W Certifications ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
