The Trumeter APM M1 with negative LCD is an all in one meter that can be configured to measure amps, voltage or frequency, making it an incredibly versatile meter for a wide range of applications. It has user programmable bar graph and alarms to immediately alert operators when a parameter is out of range. It has 4 character messaging area displays custom messages, alarms and annunciators. It provides interface to other equipment using digital and analogue outputs. It has 10 independent alarm set-points It has configurable digital output delays It has programmable starburst display

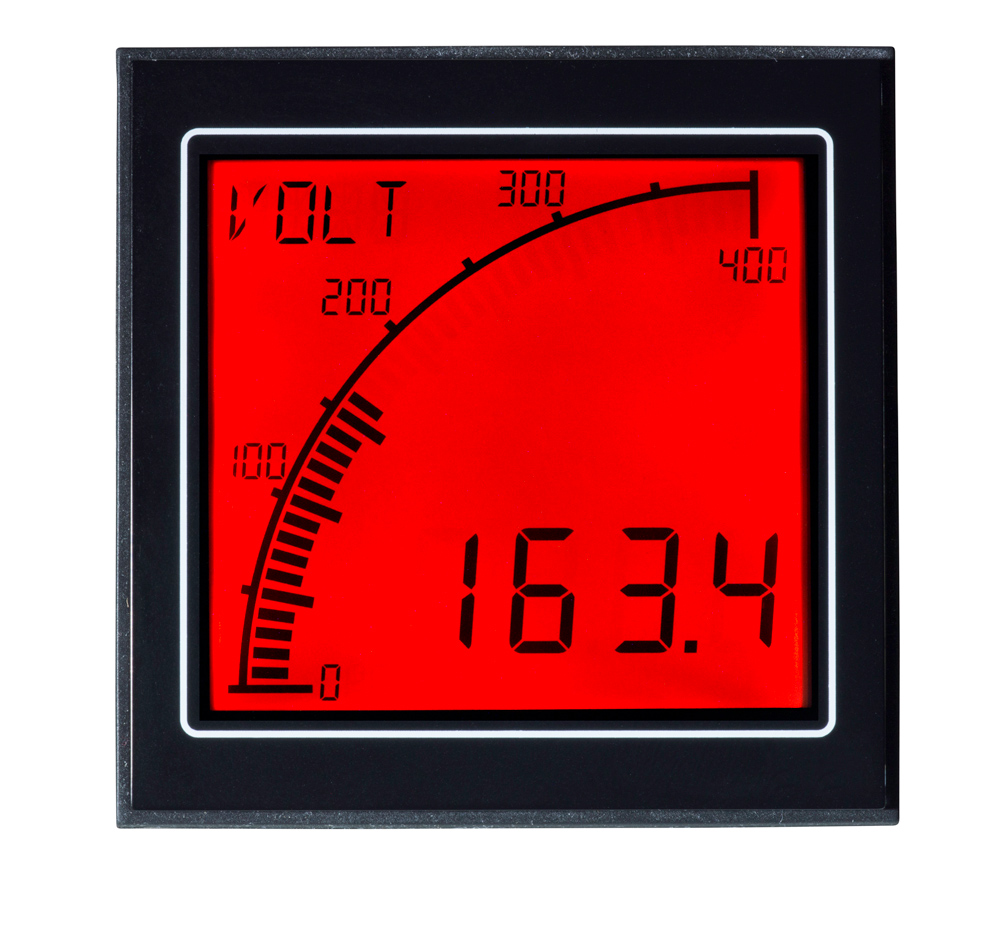

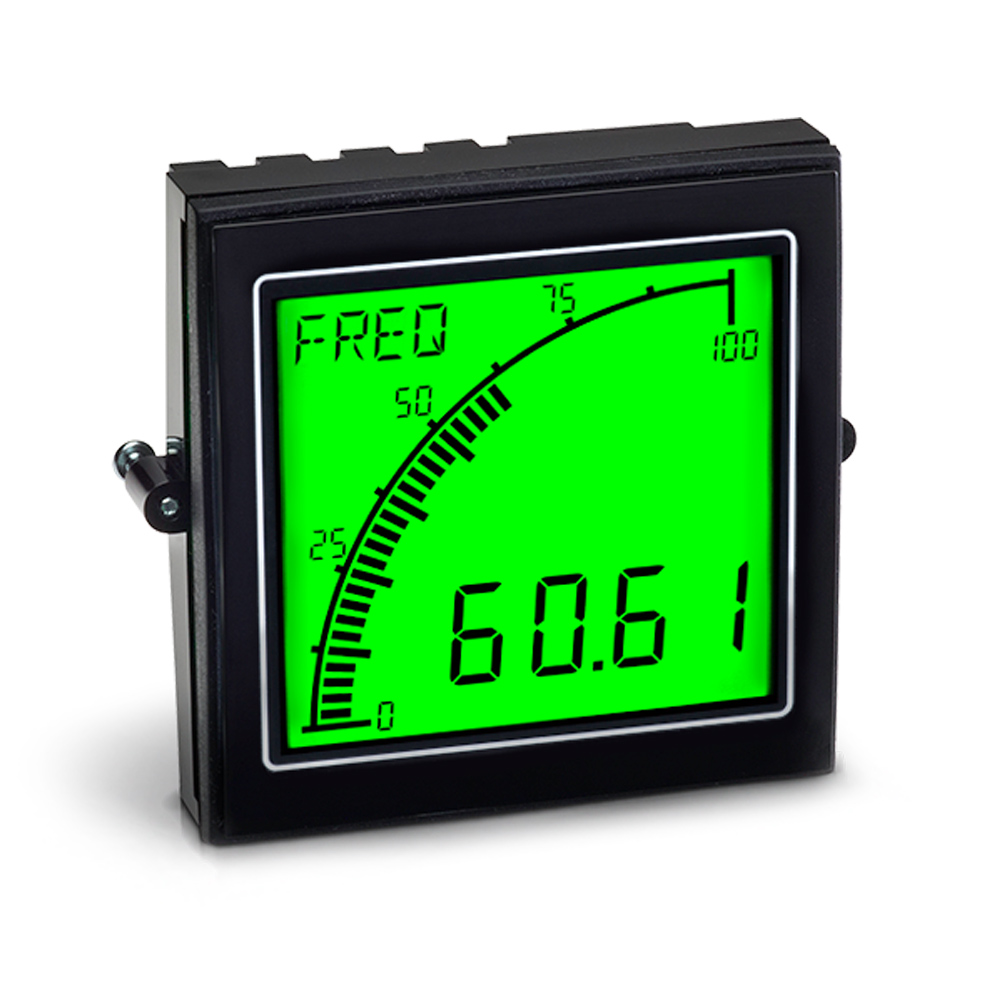

Trumeter APM-M1-ANO , LCD Digital Panel Multi-Function Meter for Current, Frequency, Voltage, 68mm x 68mm

Manufacturer:
Manufacturer Part No:
APM-M1-ANO
Enrgtech Part No:
ET22128243
Warranty:
Manufacturer
£ 116.65
Checking for live stock
Display Type:
LCD
Cutout Width:
68mm
Number of Digits:
4
Depth:
53mm
Cutout Height:
68mm
Properties Measured:
Current, Frequency, Voltage
Measuring Range:
0 ~ 10000A, 0 ~ 600VAC/DC, 2 ~ 400Hz
RoHS Status:
RoHS non-compliant
Termination Style:
Screw Terminal
Operating Temperature:
-10°C ~ 60°C
Panel Cutout Dimensions:
Square - 68.07mm x 68.07mm
Mounting Type:
Panel Mount
Type:
Multifunction Meter
Number of Characters Per Row:
4
REACH Status:
Vendor Undefined
Output Type:
Analog, Digital (2)
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
Measuring Type:
Current, Frequency, Voltage
Display Type:
LCD - Black Characters, Tri Color Backlight
Ingress Protection:
IP65 - Dust Tight, Water Resistant, NEMA 4, 12
Features:
-
Weight:
-
Display Characters - Height:
-
Series:
APM
Voltage - Supply:
12 ~ 24VDC
Base Product Number:
APM-M1
