Width:
90mm
Height:
190mm
Weight:
500g
True RMS:
Yes
Calibrated:
RSCAL

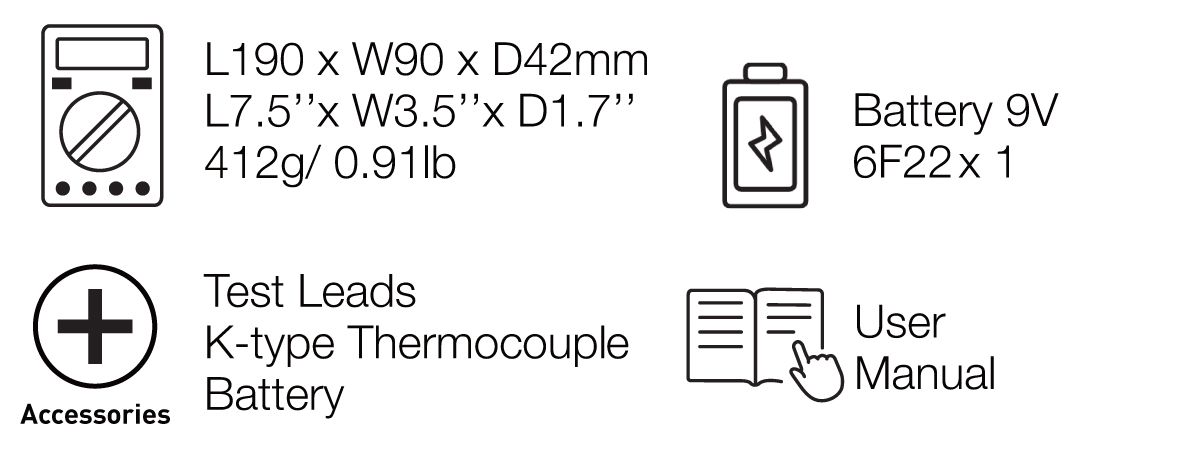

Battery Type:
6F22 (9V)

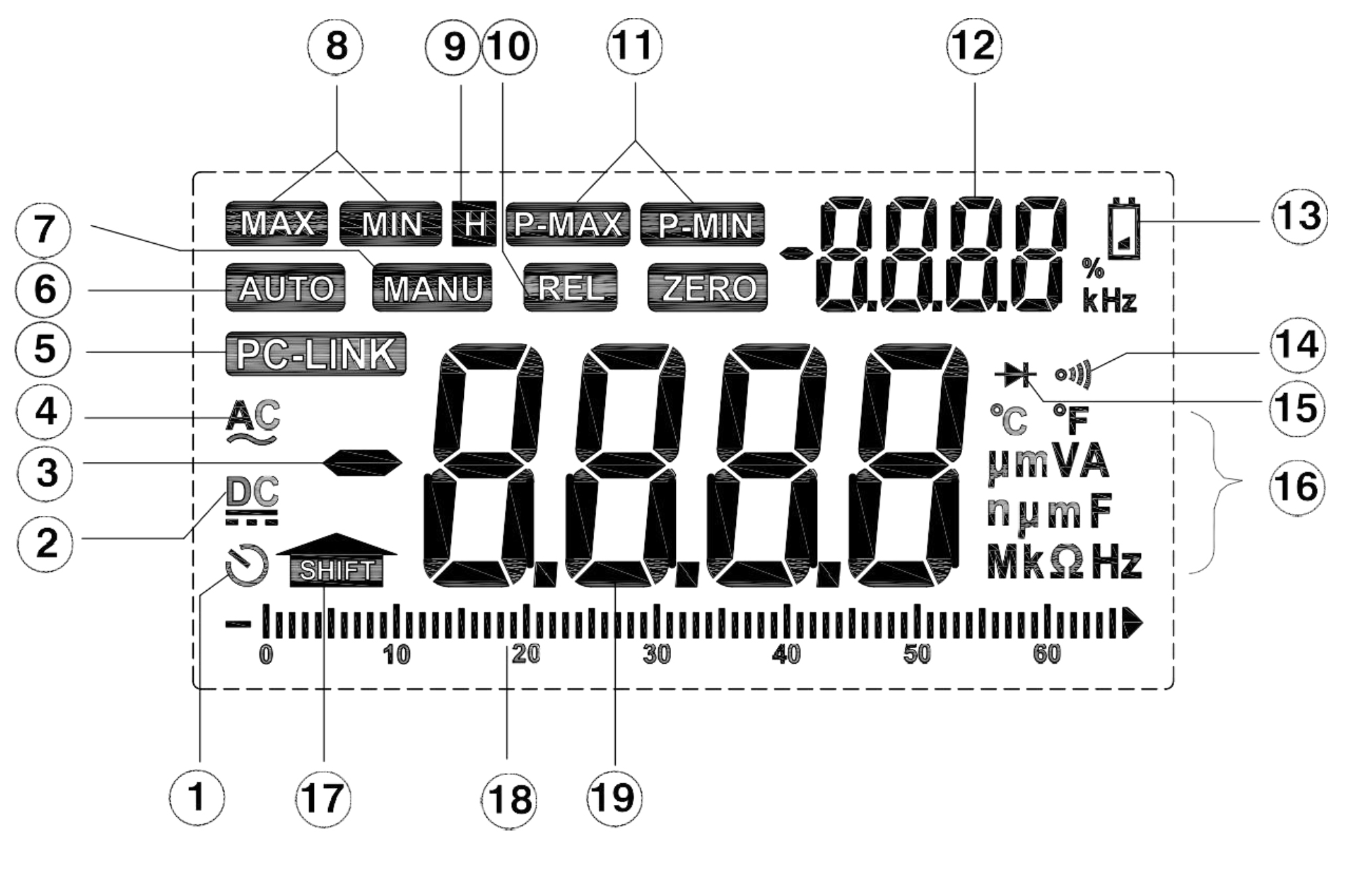

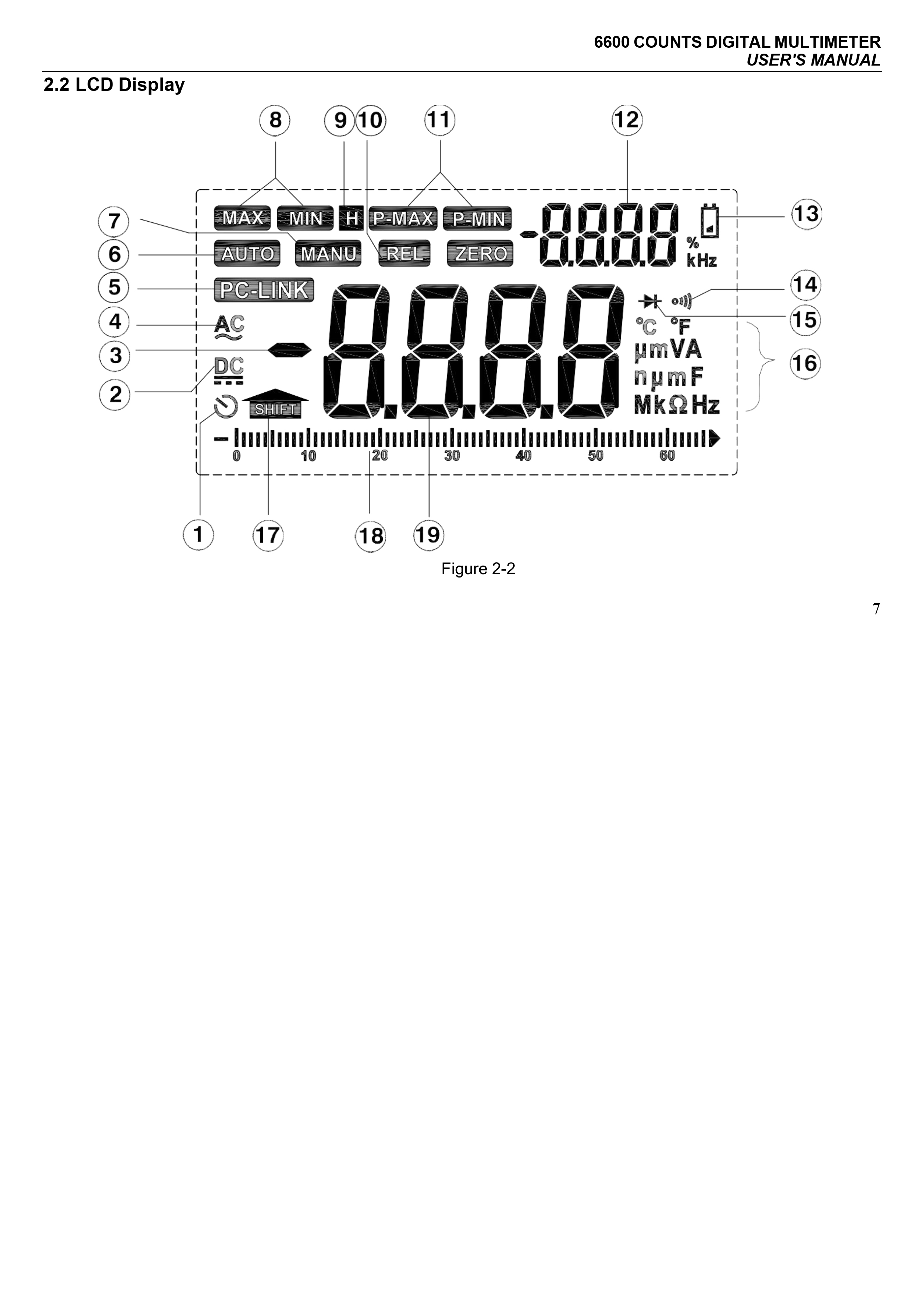

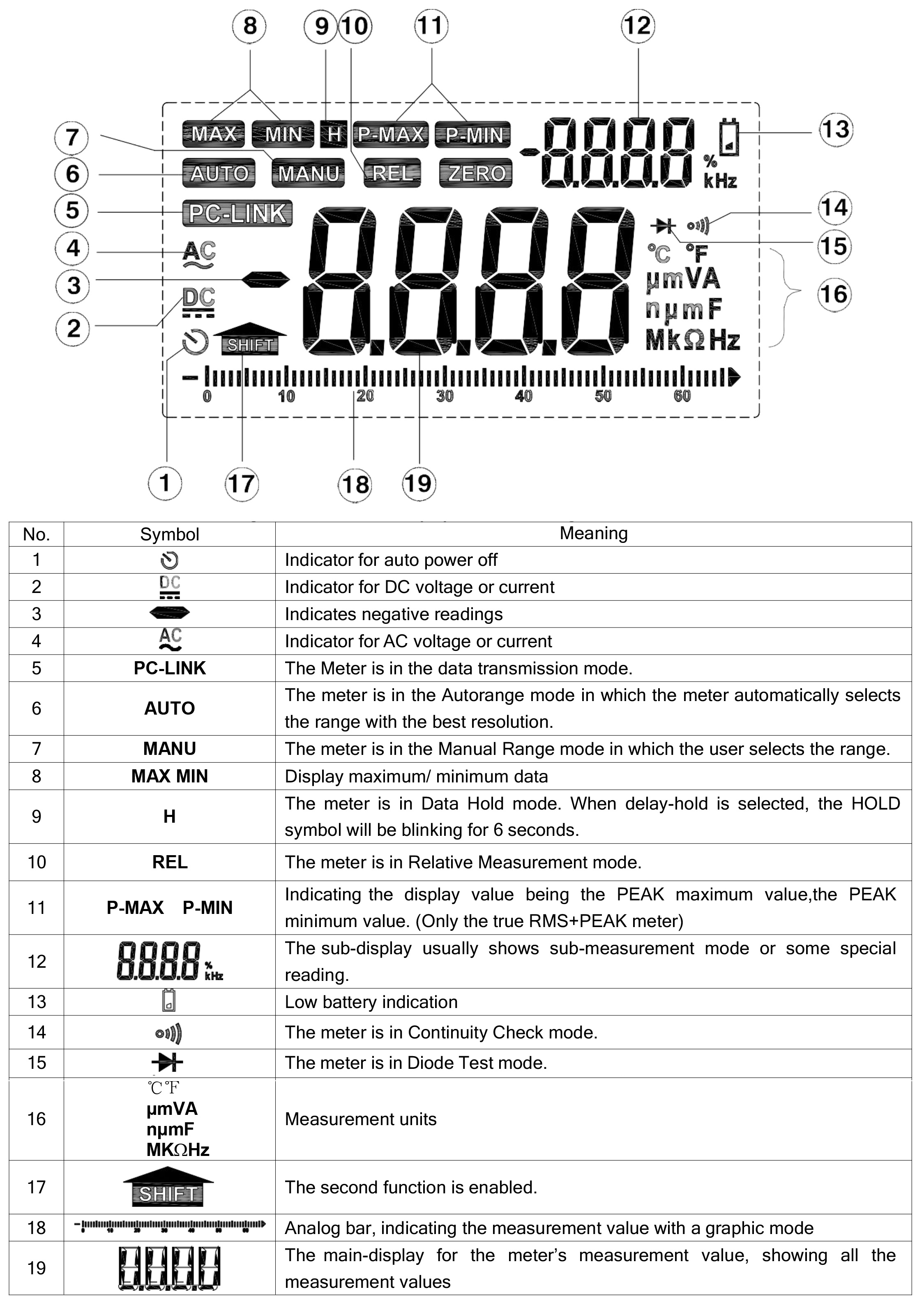

Display Type:
Digital
Power Source:
Battery
Product Type:
Digital Multimeter
Multimeter Type:
Digital
Maximum Frequency:
2MHz
Functions Measured:

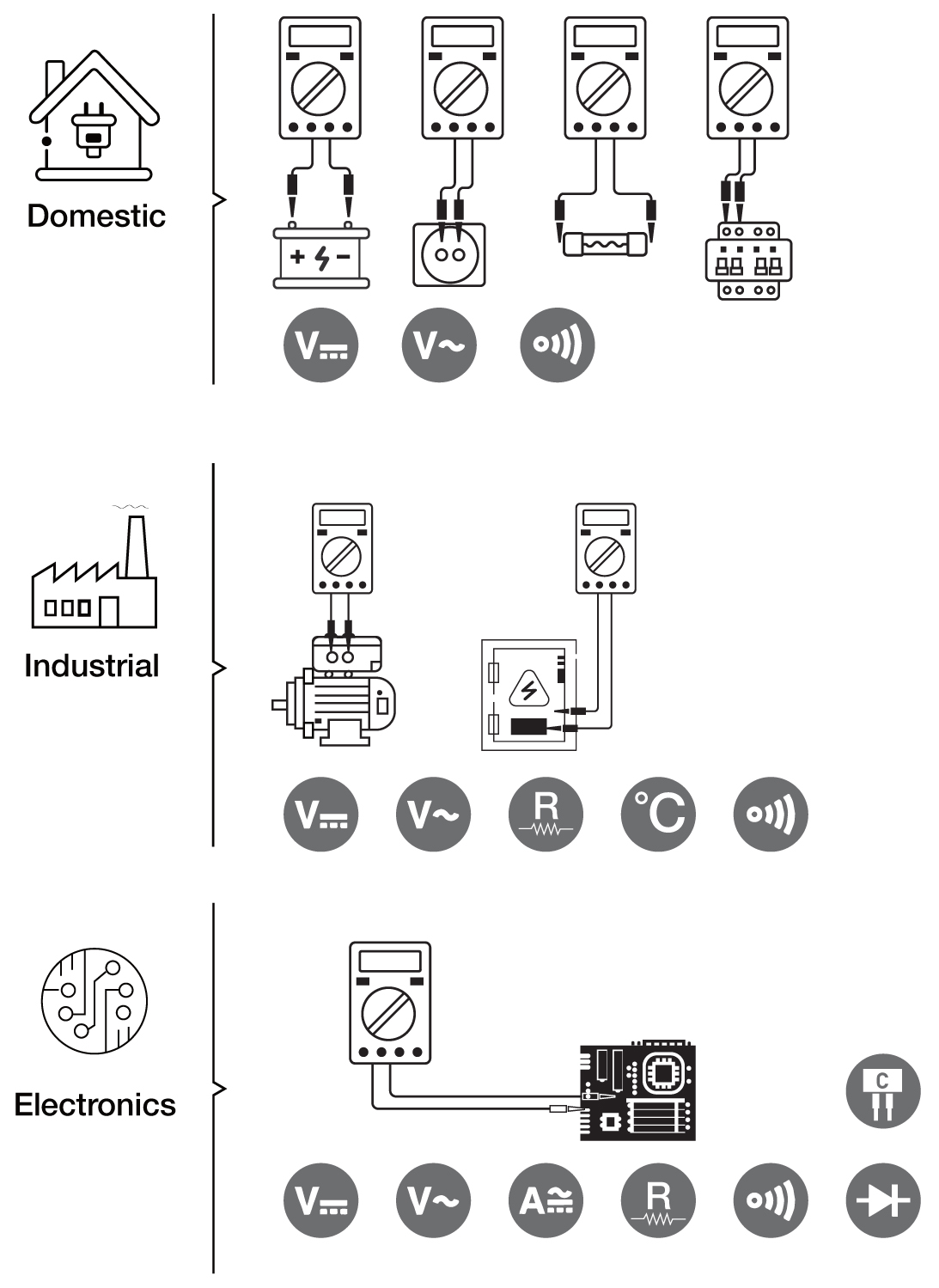

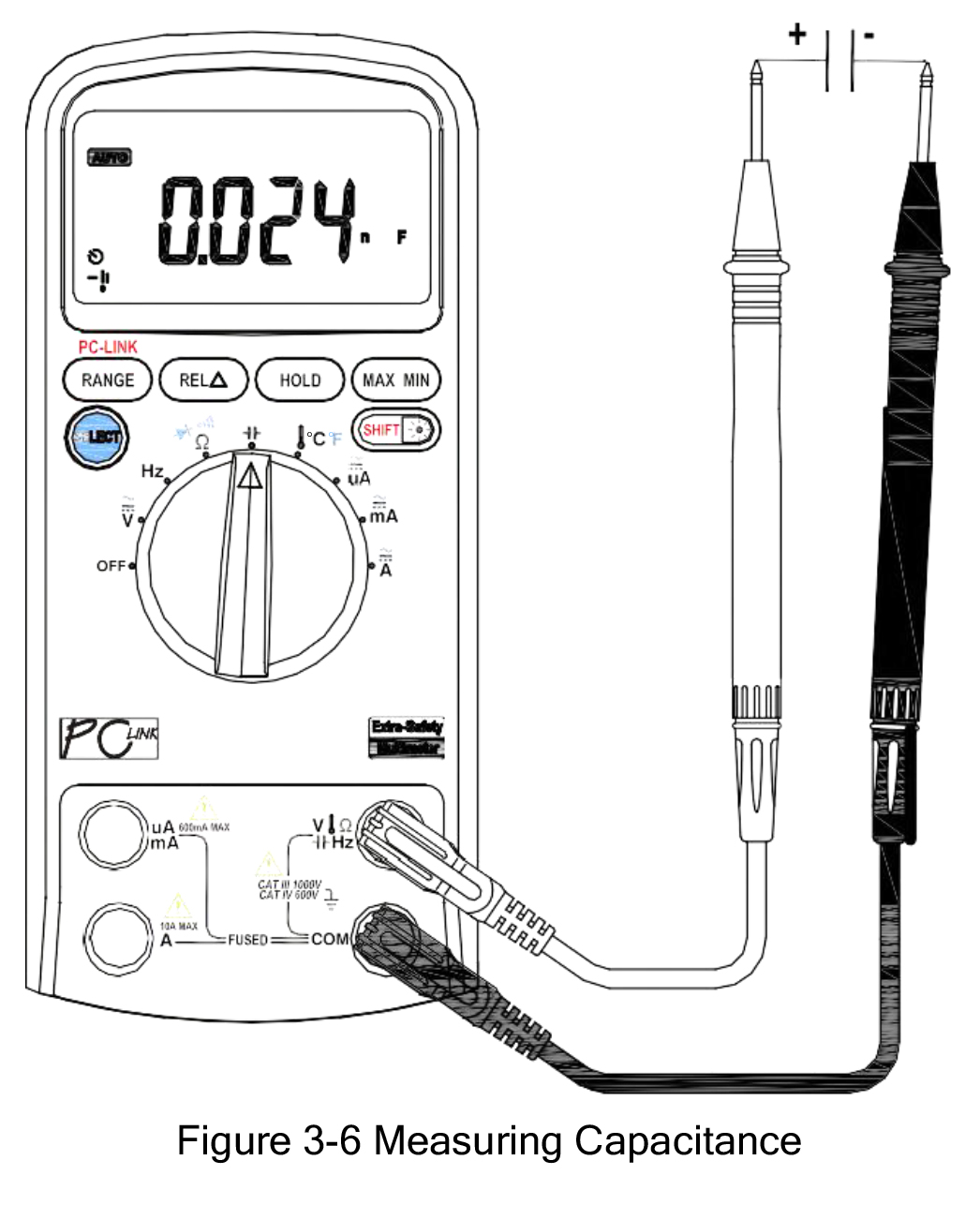

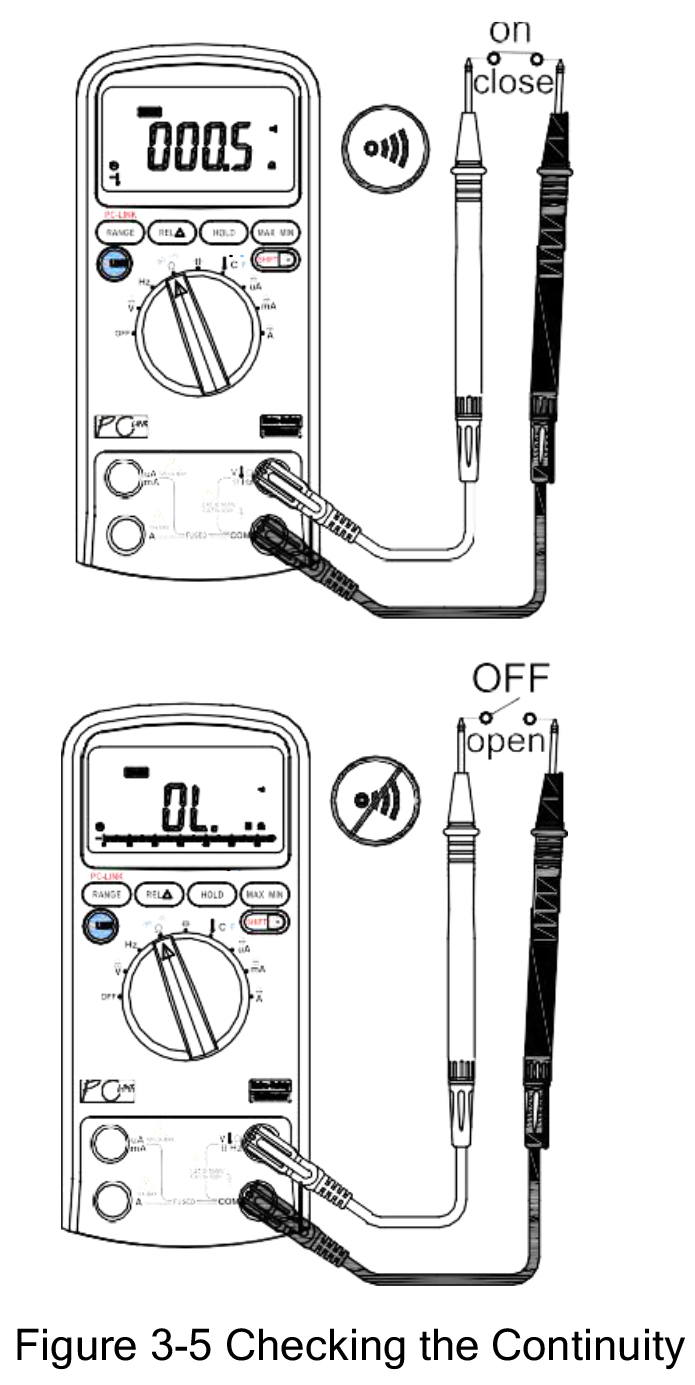

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, NCV (Non-contact Voltage), Resistance, Temperature
DC Voltage Accuracy:
±0.5 % rdg 600mV, ±0.8 % rdg 6.6V/66V/660V, ±1 % rdg 1000 V
Standards/Approvals:
No
Safety Category Level:
CAT IV
Maximum Operating Temperature:
1000°C
Minimum Operating Temperature:
-55°C

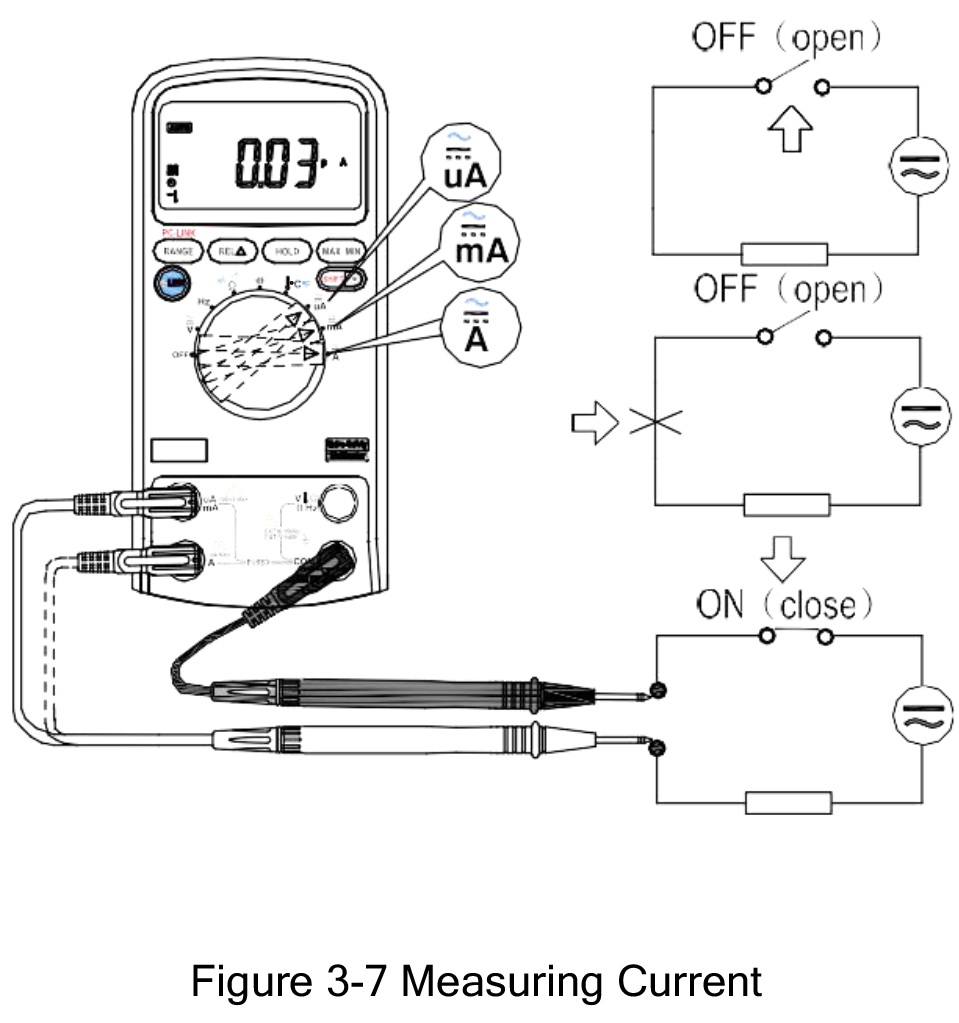

Maximum AC Current Measurement:
10A ac

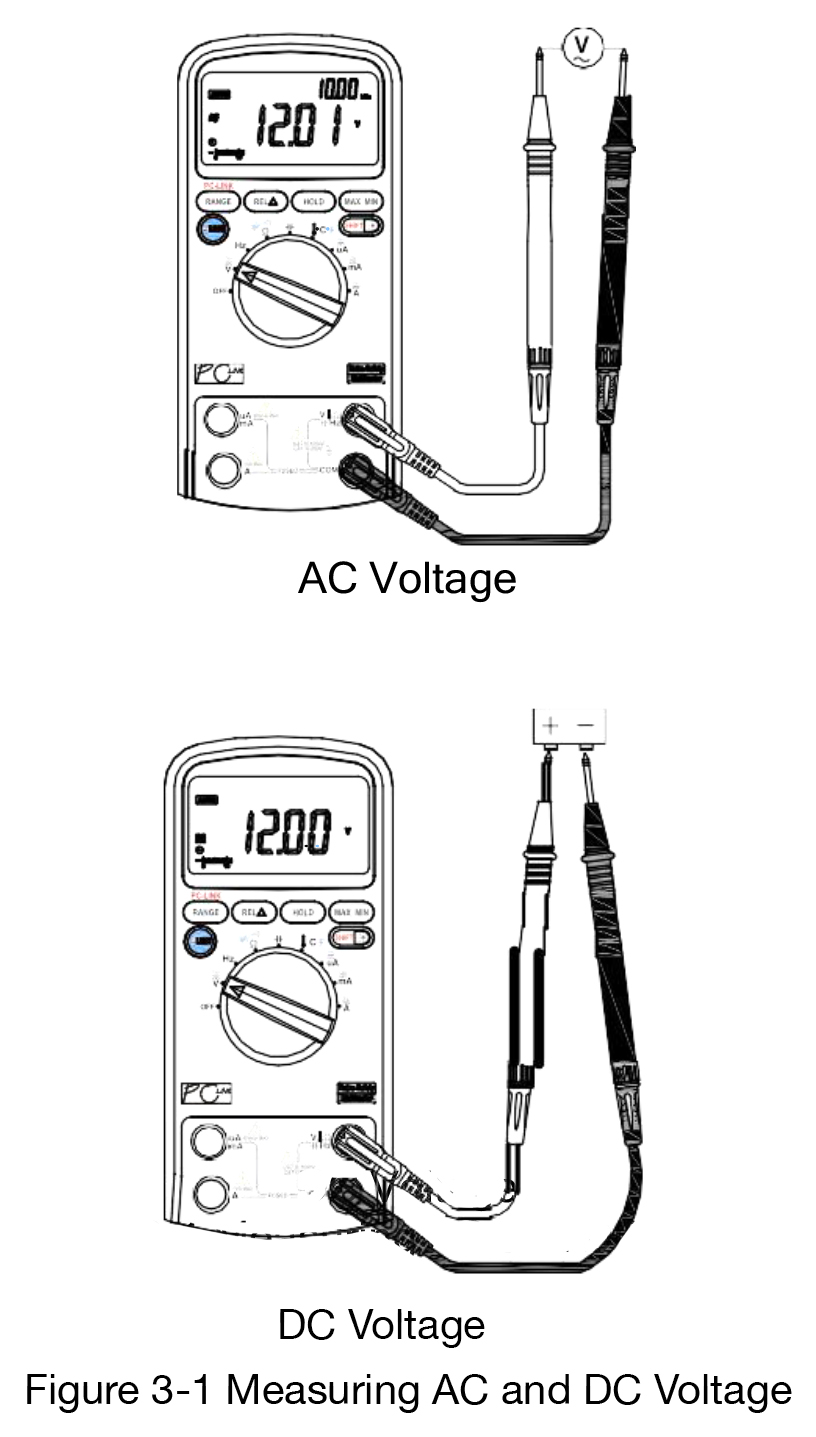

Maximum AC Voltage Measurement:
1kV ac
Maximum DC Current Measurement:
10A dc
Maximum DC Voltage Measurement:
600V dc
Maximum Resistance Measurement:
66mΩ
