Width:
31.5mm
Height:
91mm
Length:
189mm
Weight:
310g
True RMS:
No
Calibrated:
RSCAL
Battery Type:
6F22 (9V)
Display Type:
Digital
Power Source:
Battery
Product Type:
Digital Multimeter
Multimeter Type:
Digital

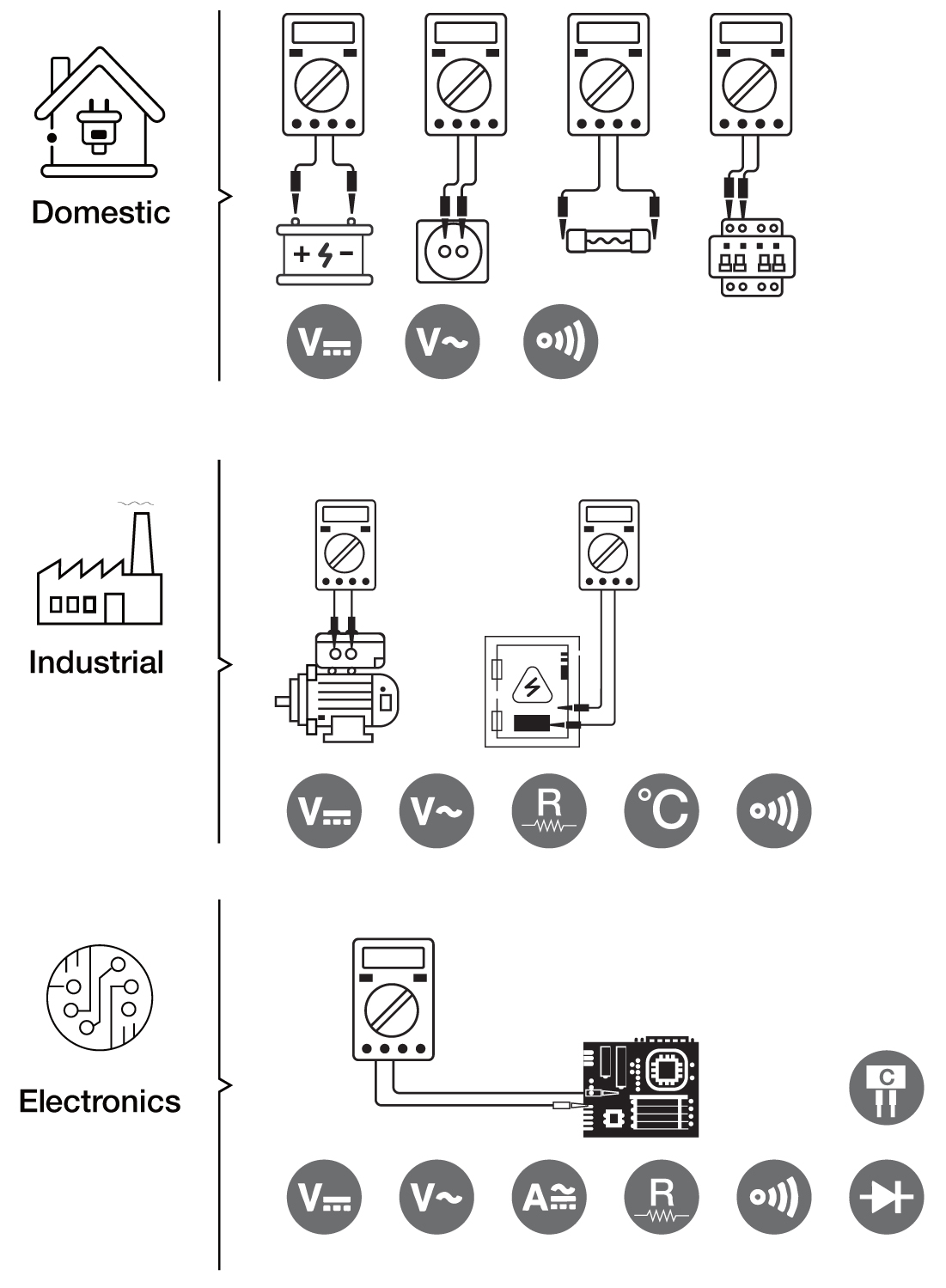

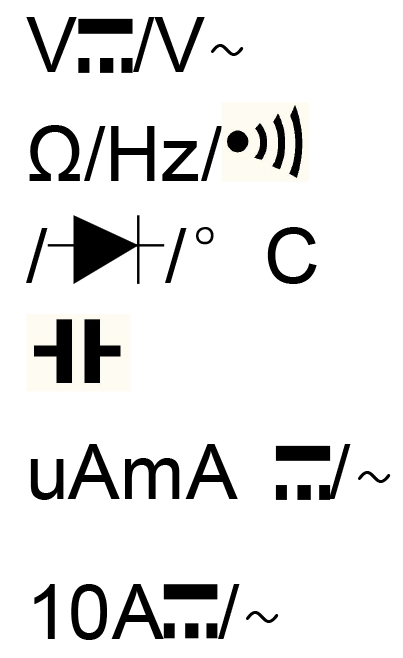

Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, NCV (Non-contact Voltage), Resistance, Temperature
AC Current Accuracy:
200mA±1.8%
AC Voltage Accuracy:
±1.2 % rdg
DC Current Accuracy:
±2 %
DC Voltage Accuracy:
±0.5 % rdg 200m/2/20/200V, ±0.8 % rdg 1000 V
Standards/Approvals:
No
Minimum Operating Temperature:
-20°C
Maximum AC Current Measurement:
10A ac
Maximum AC Voltage Measurement:
700V ac
Maximum DC Current Measurement:
10A dc
Maximum DC Voltage Measurement:
1kV dc
Maximum Resistance Measurement:
200mΩ
Resistance Measurement Accuracy:
±5 % rdg
