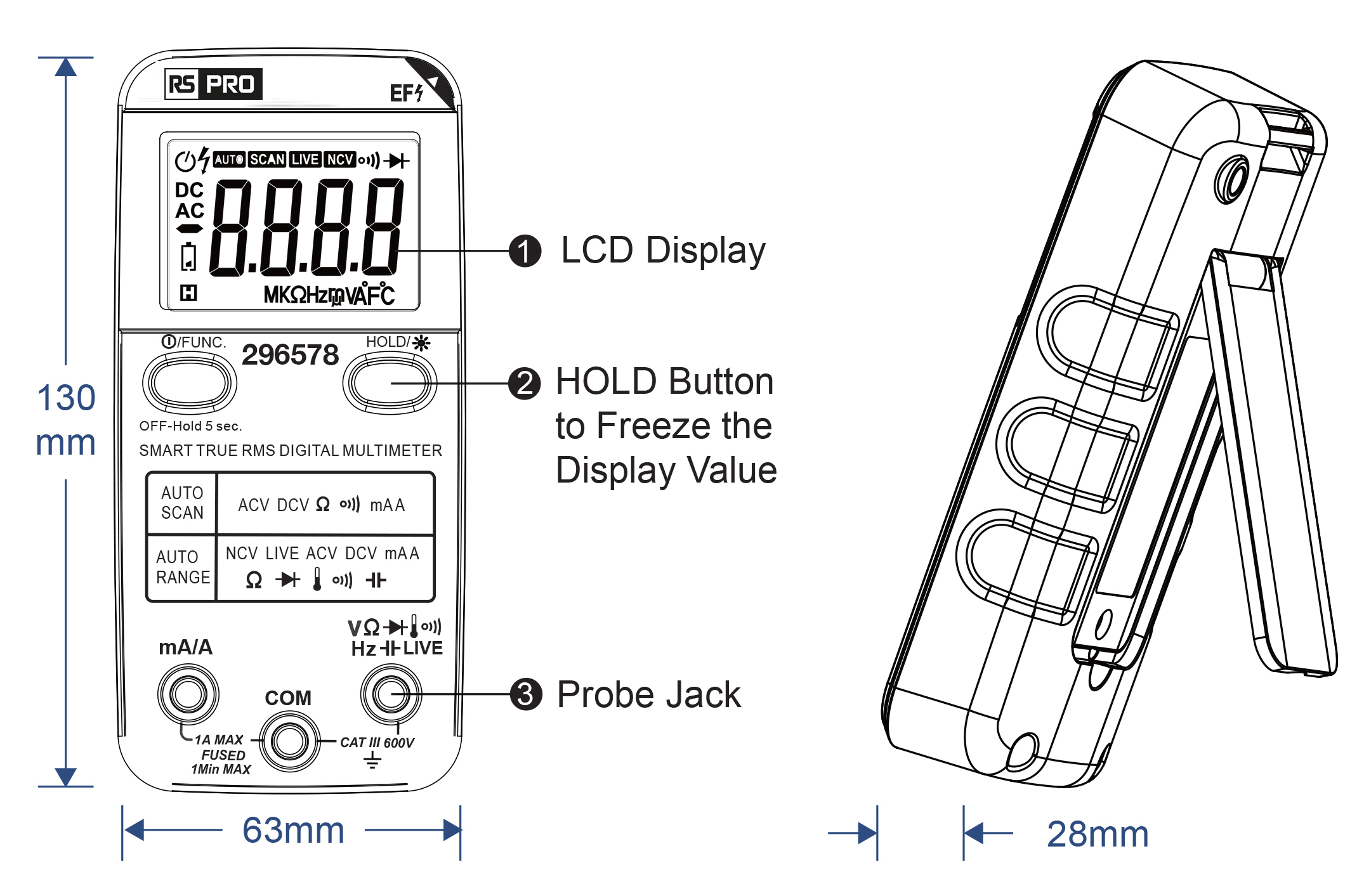

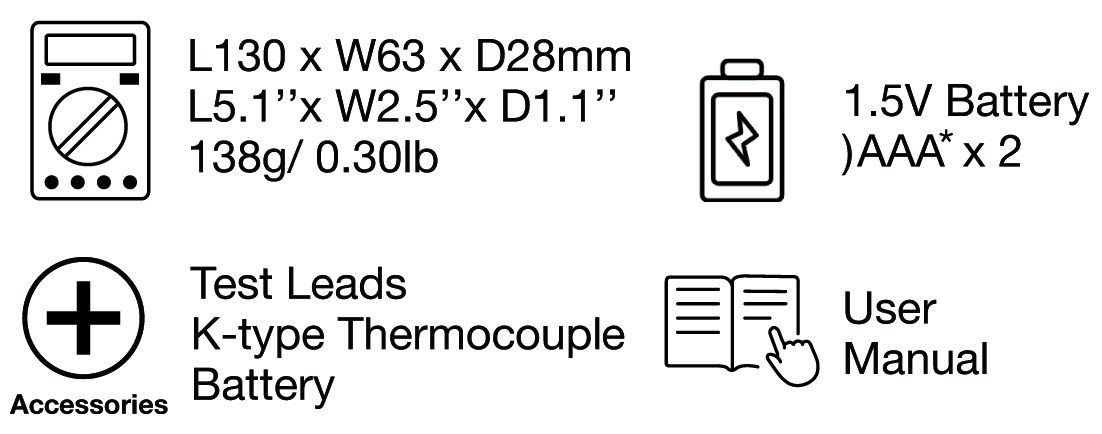

Width:
63mm
Height:
28mm
Length:
130mm
Weight:
120g
True RMS:
No
Calibrated:
UKAS
Battery Type:
AAA

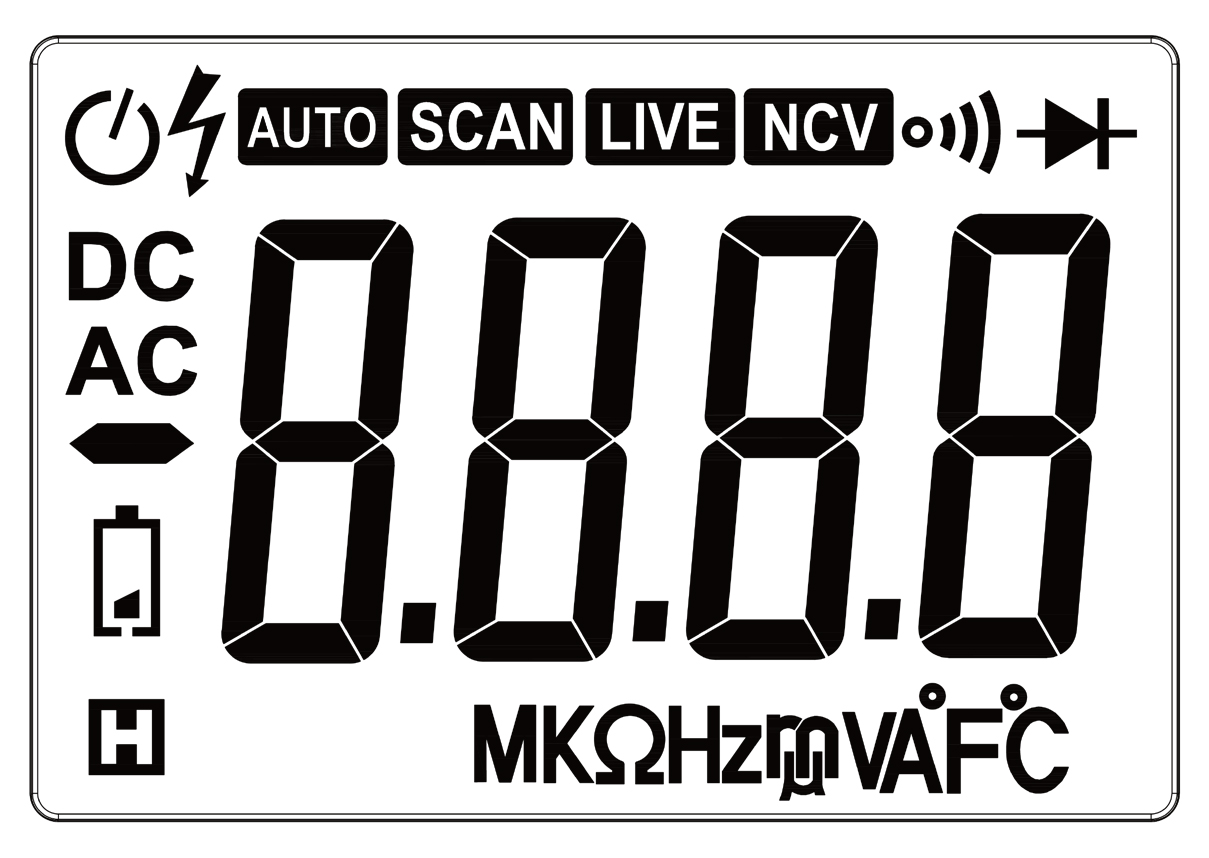

Display Type:
Digital
Power Source:
Battery
Product Type:
Digital Multimeter
Multimeter Type:
Digital
Maximum Frequency:
4kHz

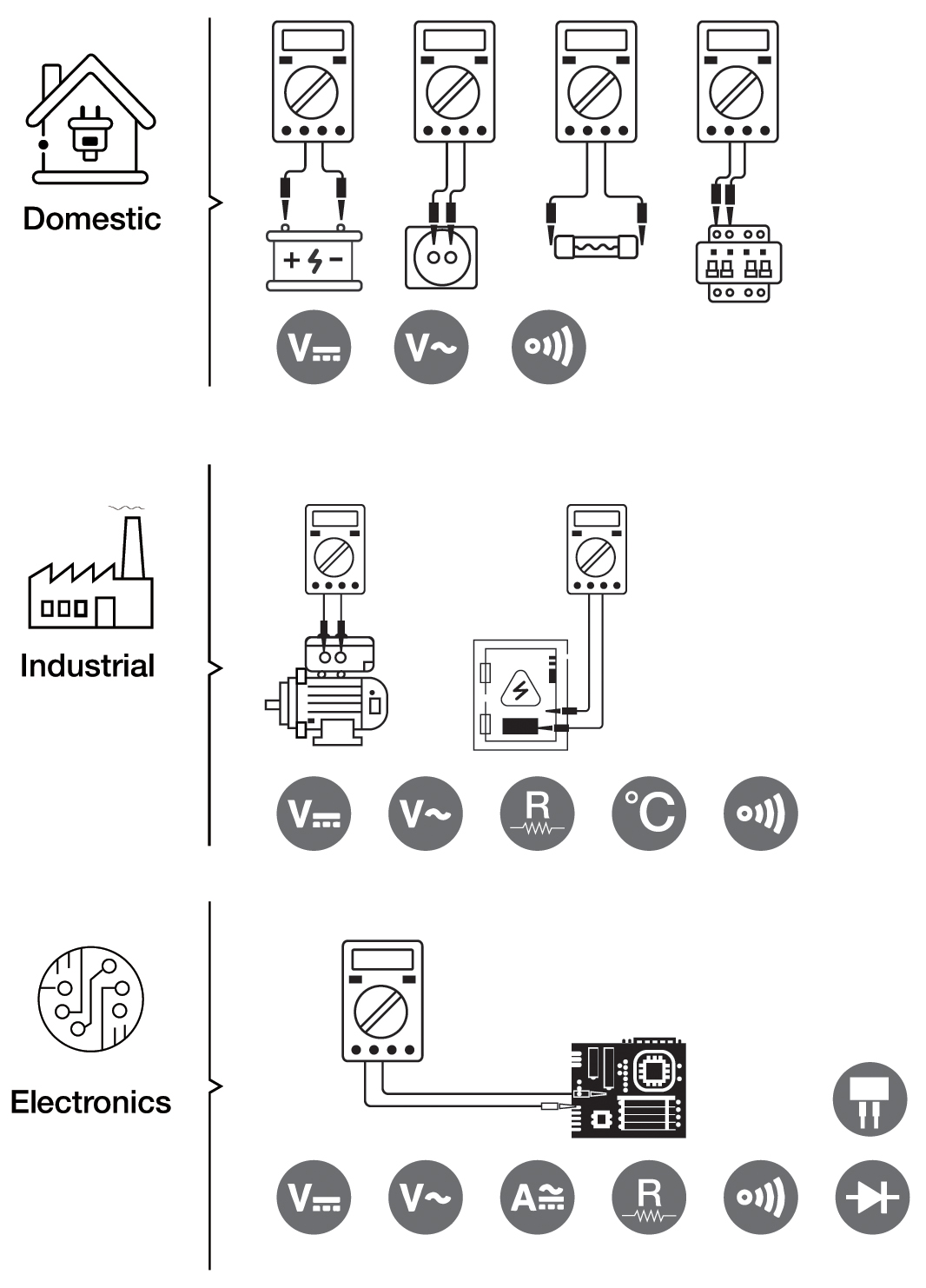

Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, NCV (Non-contact Voltage), Resistance, Temperature
AC Current Accuracy:
1A±(1.0%+3)
DC Current Accuracy:
±1 % rdg + 3 Digits
DC Voltage Accuracy:
±0.5 %
Standards/Approvals:
EMC EN 613261 Safety LVD EN 610101 EN 61010031 EN 61010033
Safety Category Level:
CAT III
Safety Category Voltage:
600V
Maximum Operating Temperature:
40°C
Minimum Operating Temperature:
0°C
Maximum AC Current Measurement:
1A ac
Maximum AC Voltage Measurement:
600V ac
Maximum DC Current Measurement:
1A dc
Maximum DC Voltage Measurement:
600V dc
Maximum Resistance Measurement:
40mΩ
