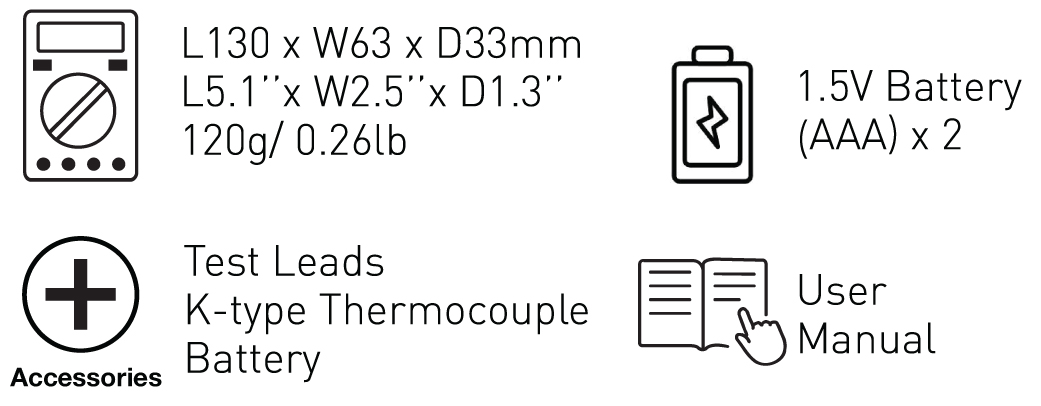

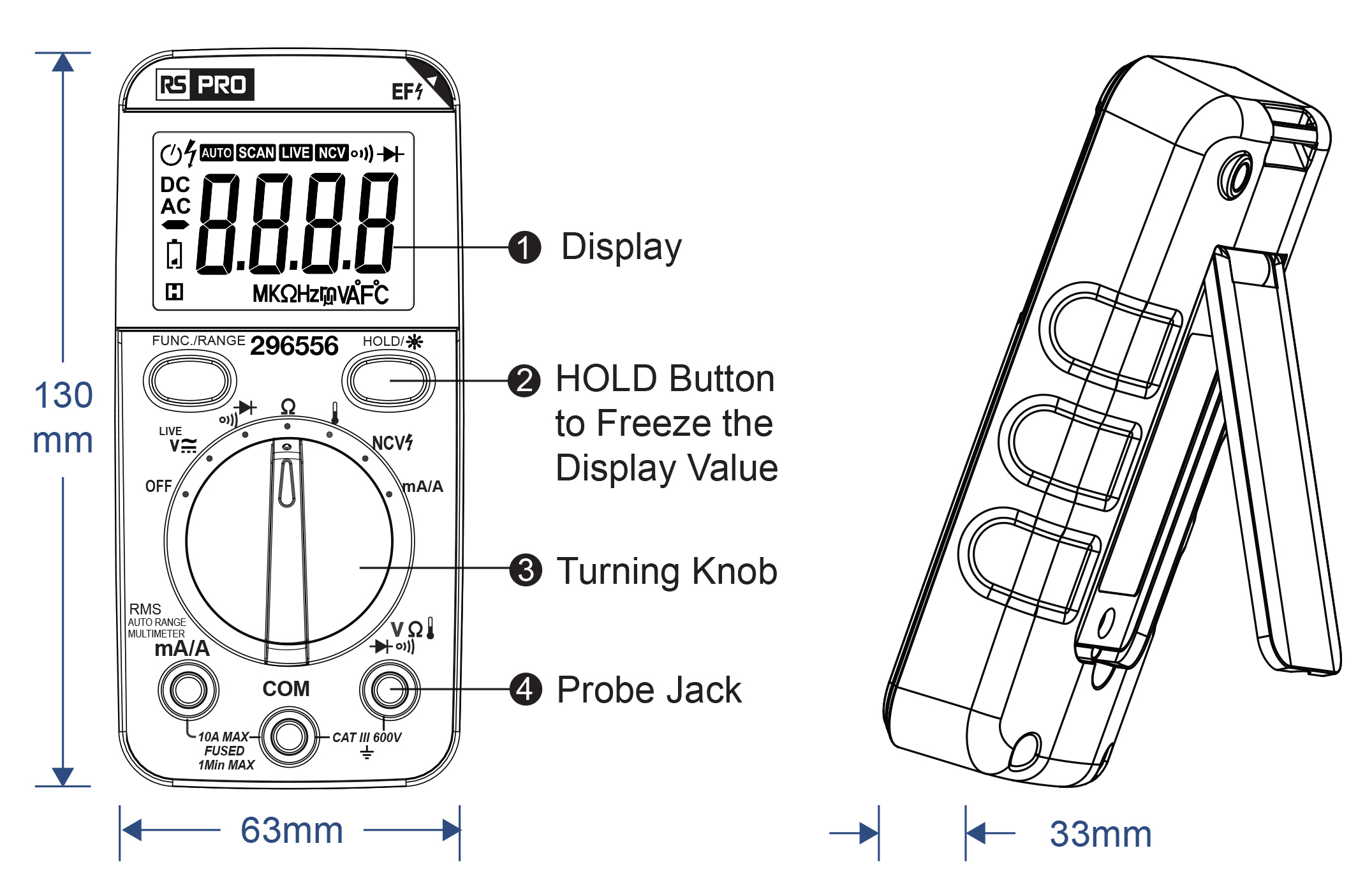

Width:
63mm
Height:
33mm
Length:
130mm
Weight:
120g
True RMS:
No
Battery Type:
AAA

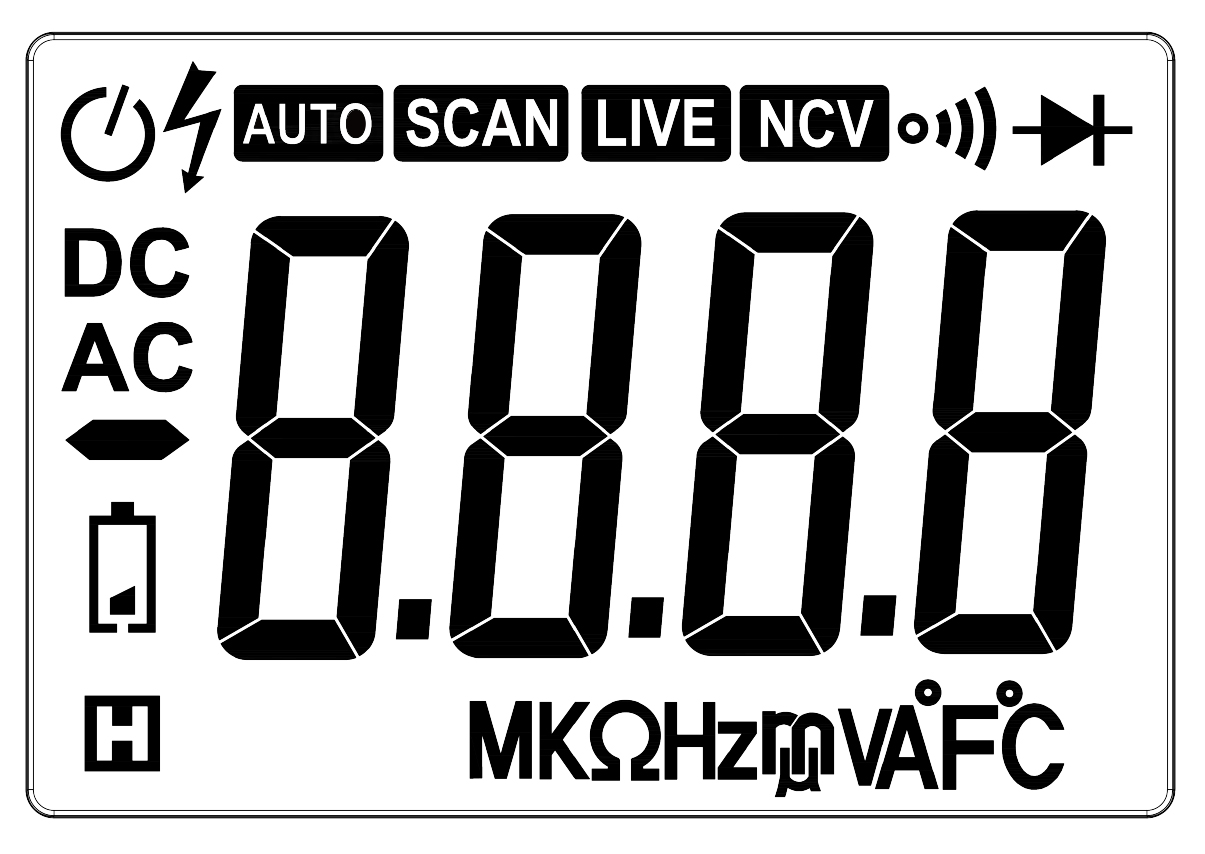

Display Type:
Digital
Power Source:
Battery
Product Type:
Digital Multimeter
Multimeter Type:
Digital
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, NCV (Non-contact Voltage), Resistance, Temperature
AC Current Accuracy:
±1.5 % rdg + 3 Digits
AC Voltage Accuracy:
±1 % rdg + 3 Digits
DC Current Accuracy:
±1 % rdg + 3 Digits
DC Voltage Accuracy:
±0.5 % rdg + 3 Digits
Standards/Approvals:
EN 613261, EN 610101, EN 61010033, EN 61010031
Safety Category Level:
CAT III
Safety Category Voltage:
600V
Maximum Operating Temperature:
40°C
Minimum Operating Temperature:
0°C
Maximum AC Current Measurement:
1A ac
Maximum AC Voltage Measurement:
600V ac
Maximum DC Current Measurement:
1A dc
Maximum DC Voltage Measurement:
600V dc
Maximum Resistance Measurement:
20mΩ
