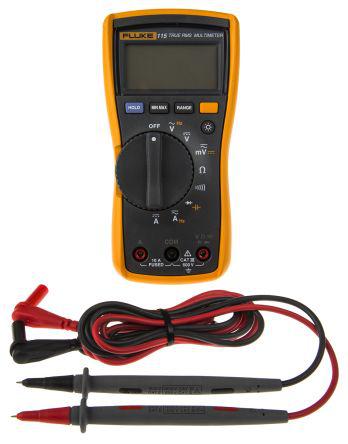

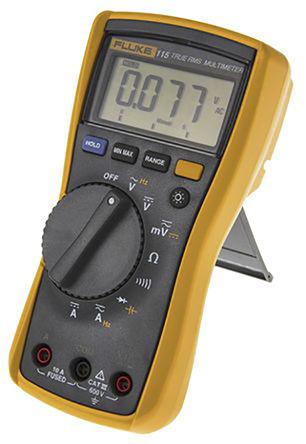

Fluke 115 Multimeter With its simple operation, compact design and ease of use, the Fluke 115 True RMS digital multimeter provides the perfect answer for general purpose electrical and electronic test requirements. An everyday multimeter for technicians, the 115 is for in field service, industrial, and applications where more than the basic functions simplify work. The Fluke 115 displays True RMS voltage and current readings with 600 count resolution, continuity and capacitance, making it perfect for quick verifications and field service use. The model is supplied with a test lead and manual. Fluke 115 Digital Multimeters are independently tested for safe use in CAT III 600V Environments. Features and Benefits • Large white LED backlight to work in poorly lit areas • Resistance and continuity • Frequency and capacitance • Maximum Voltage ac/dc 600V • 10A ac/dc current measurement • Min/Max/Average to record signal fluctuations • CAT III 600 V safety rated Addtional Specifications • DC Voltage Accuracy: 0.5% + 2 • DC Voltage Lowest Resolution: 0.1mV • AC Voltage Accuracy: 2.0% + 3 • AC Voltage Lowest Resolution: 0.1mV • AC Voltage Max Frequency: 1kHz • Display Count 6000 • Display Update 4/sec • Bar Graph Segments 33 • Bar Graph Update 32/sec Note For Calibrated Articles - Please note that accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.

FLUKE-115 EUR, Handheld Digital Multimeter, 10A ac 600V ac 10A dc 600V dc

Manufacturer:
Manufacturer Part No:
FLUKE-115 EUR
Enrgtech Part No:
ET13928778
Warranty:
Manufacturer
£ 221.55
Checking for live stock
Dimensions:
46 x 84 x 167mm
Capacitance Measurement Resolution:
1nF
DC Current Measurement Resolution:
0.001A dc
Absolute Maximum DC Voltage Measurement:
600V dc
Width:
84mm
Battery Life:
400 h
AC Current Measurement Resolution:
0.001A ac
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
600V ac
Model Number p:
115
Resistance Measurement Resolution:
100mΩ
Best AC Voltage Accuracy:
±1% + 3 Digits
Absolute Maximum AC Current Measurement:
10A ac
Maximum Frequency:
1kHz
Absolute Maximum Capacitance Measurement:
9.999F
Battery Type:
9V
Absolute Maximum Resistance Measurement:
40MΩ
Maximum Operating Temperature:
+50°C
Best Capacitance Measurement Accuracy:
±1.9% + 2 Digits
Minimum Operating Temperature:
-10°C
Safety Category Level:
CAT III
Length:
46mm
Calibrated:
RSCAL
Absolute Maximum DC Current Measurement:
10A dc
Display Type:
Digital
Best DC Current Accuracy:
±1% + 3 Digits
Weight:
550g
AC Voltage Measurement Resolution:
0.1mV ac
Best AC Current Accuracy:
±1.5% + 3 Digits
Safety Category Voltage:
600V
Multimeter Type:
Handheld
Height:
167mm
Best Resistance Measurement Accuracy:
±5% + 2 Digits
Best DC Voltage Accuracy:
±0.5% + 2 Digits
DC Voltage Measurement Resolution:
0.1mV dc
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance
pdf icon
Fluke 115 Electrical Multimeter Data Sheet(Technical Reference)
pdf icon
Fluke 114, 115, and 117 True-rms Multimeters Users Manual(Technical Reference)
