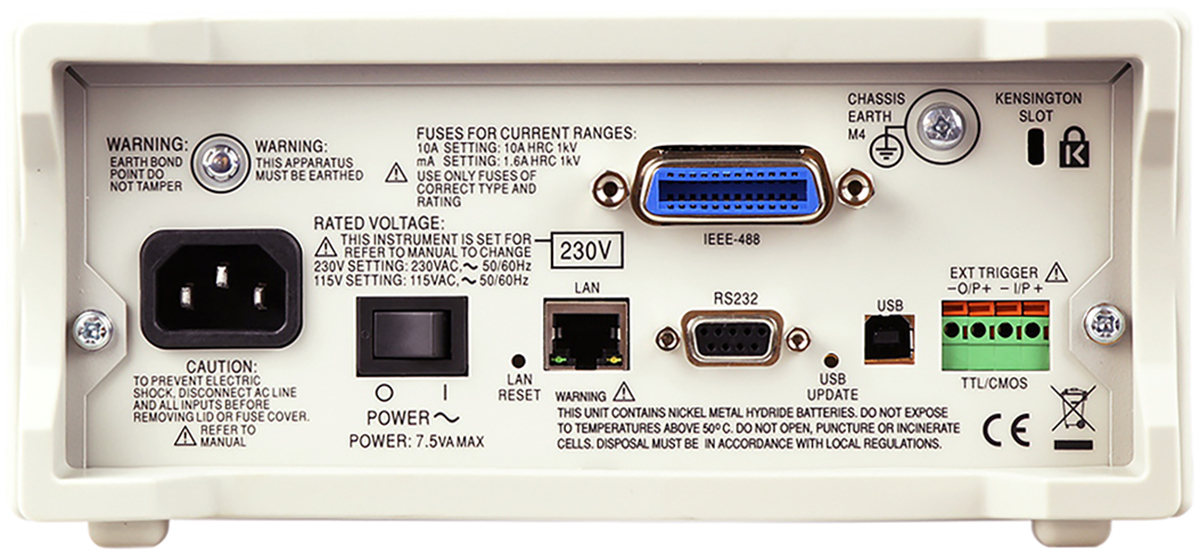

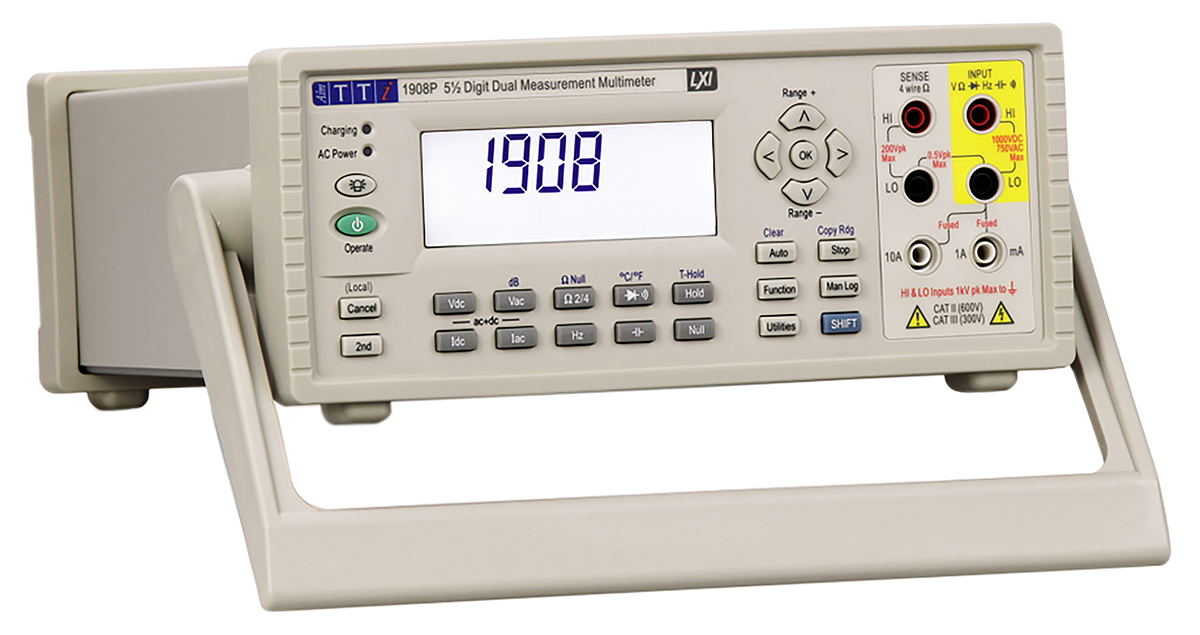

Aim-TTi 1908 Series Dual Measurement Bench Multimeter Aim-TTi 1908 Series is a dual measurement, dual display bench-top/portable multimeter. It features continuity and diode test, automatic or manual ranging, linear scaling with offset, dB measurements, limits comparison, percentage deviation (%), min-max storage, power measurement in watts or VA, automatic data logging and external triggering. The logger function can store up to 500 readings from the main display in non-volatile memory. The two displays can be used to display a measurement along with the selected range (e.g. 100 Vdc), a measurement in two different units (e.g. AC volts and dBm), the result of a calculated function (e.g. value and % deviation), two parameters of one signal (e.g. AC and DC volts) or two different signals (e.g. AC volts and DC current). Software 1908-PC Link provides remote control of main functions and logging function with graphical and tabular displays (logged data can be exported to a CSV file). Model 1908P can be remotely controlled via its RS232, USB, GPIB or LAN interface. Model 1908 (non ’P’) can only be controlled via USB. Features and Benefits Affordable 5.5 digit high performance bench/portable multimeter, 120 000 counts Dual display (main display and secondary display) and dual measurement capability Mains power or Internal rechargeable batteries for true portability High accuracy and resolution 0.02%, 1 μV, 0.1 μA, 1 mΩ Manual or Auto-ranging True RMS AC and AC+DC measurement DC and AC volts, DC and AC current, resistance, capacitance, frequency, and temperature measurement Measurement post-processing Continuity and diode checks Two or four wire selectable ohms measurement Display nulling and ohms null Selectable measurement speed Touch hold mode - holds onto a stable reading until updated 500 point data logger with timer Temperature measurement for PT100 or PT1000 sensors Wide range of computing functions e...

Aim-TTi , Bench Digital Multimeter, 10A AC 1000V AC 10A DC 1000V DC

Manufacturer:
Manufacturer Part No:
1908
Enrgtech Part No:
ET16790221
Warranty:
Manufacturer
£ 343.35
Checking for live stock
Dimensions:
260 x 235 x 88mm
Capacitance Measurement Resolution:
10pF
DC Current Measurement Resolution:
100nA dc
Temperature Measurement Resolution:
0.1°C
Absolute Maximum DC Voltage Measurement:
1000V dc
Width:
235mm
AC Current Measurement Resolution:
100nA ac
Best Temperature Measurement Accuracy:
0.05 %
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
1000V ac
Model Number p:
1908
Resistance Measurement Resolution:
1mΩ
Best AC Voltage Accuracy:
0.3 %
Absolute Maximum AC Current Measurement:
10A ac
Maximum Frequency:
100kHz
Absolute Maximum Capacitance Measurement:
100µF
Battery Type:
Rechargeable NiMH
Absolute Maximum Resistance Measurement:
10MΩ
Maximum Operating Temperature:
+40°C
Best Capacitance Measurement Accuracy:
2 %
Minimum Operating Temperature:
+5°C
Safety Category Level:
CAT II
Length:
260mm
Absolute Maximum Temperature Measurement:
+400°C
Absolute Maximum DC Current Measurement:
10A dc
Display Type:
Digital
Best DC Current Accuracy:
0.05 %
Weight:
2kg
AC Voltage Measurement Resolution:
1µV ac
Best AC Current Accuracy:
0.35 %
Safety Category Voltage:
600V
Multimeter Type:
Bench
Height:
88mm
Best Resistance Measurement Accuracy:
0.05 %
Best DC Voltage Accuracy:
0.02 %
DC Voltage Measurement Resolution:
1µV dc
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
pdf icon
Datasheet(Technical Reference)
pdf icon
Instruction Manual(Technical Reference)
pdf icon
Catalogue - Test and Measurement Instruments(Technical Reference)
