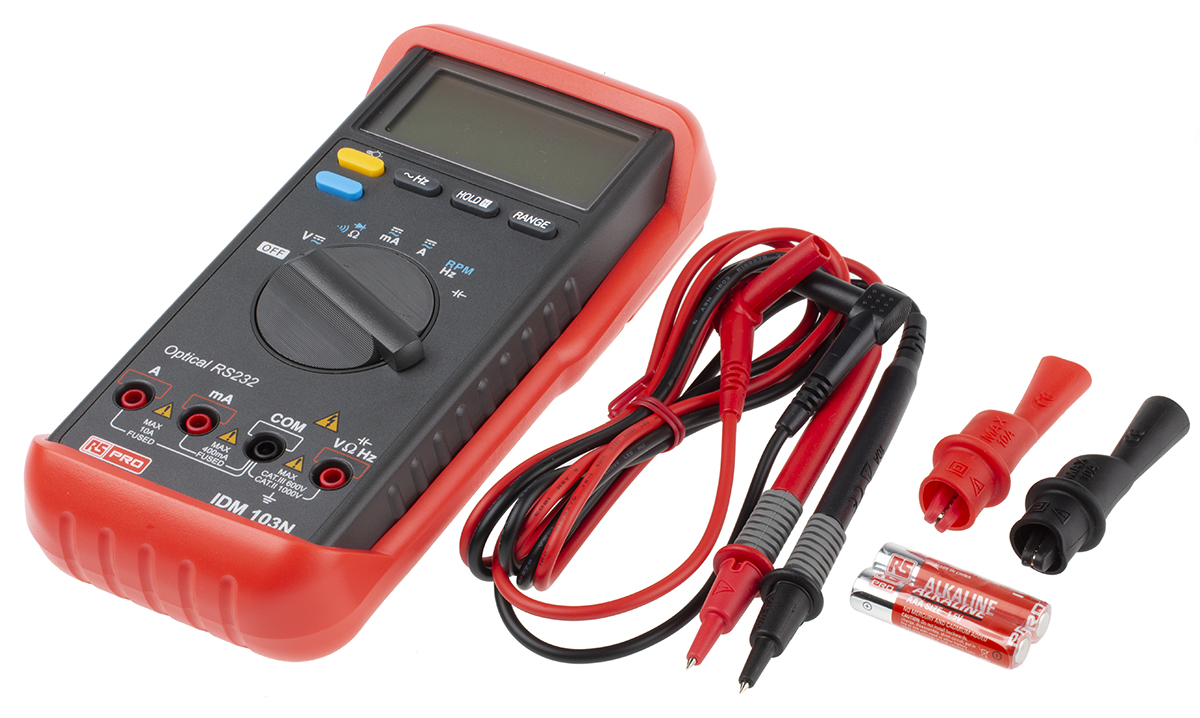

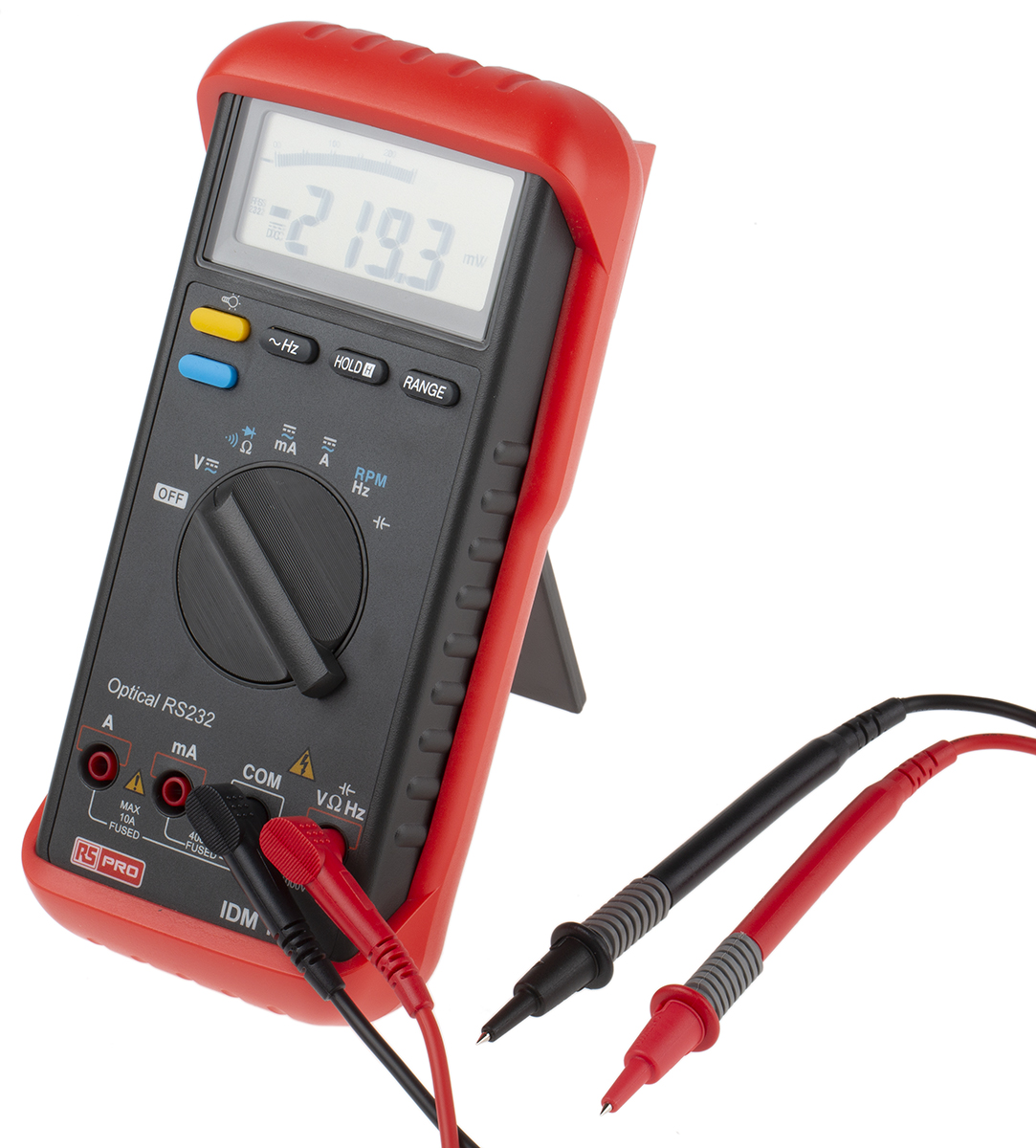

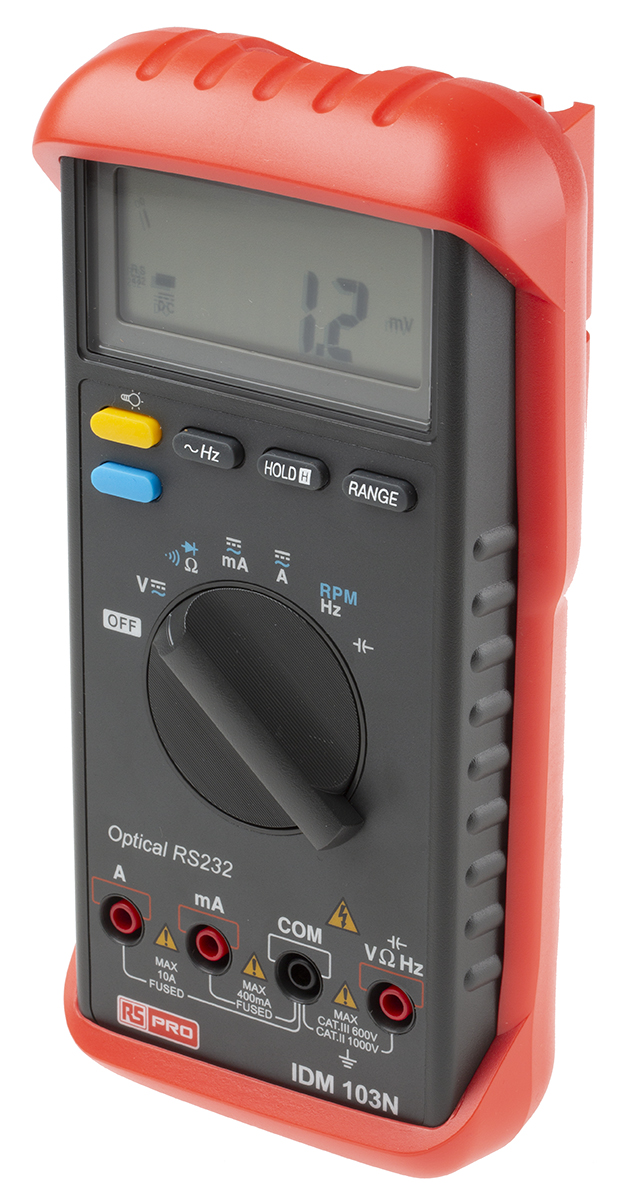

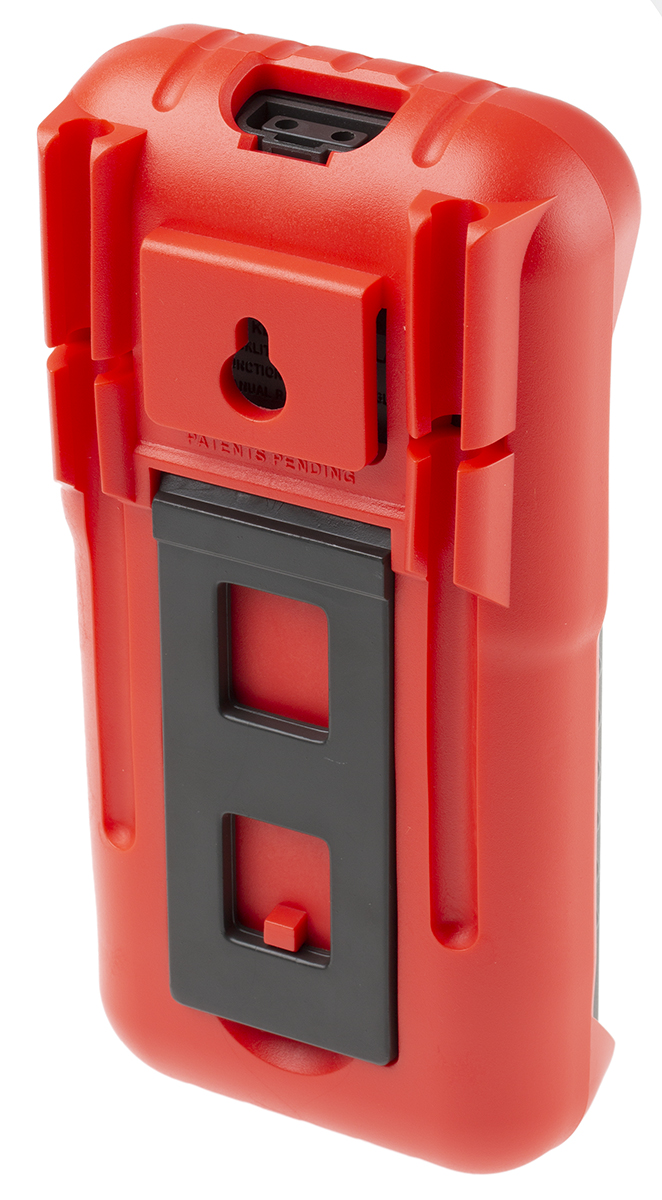

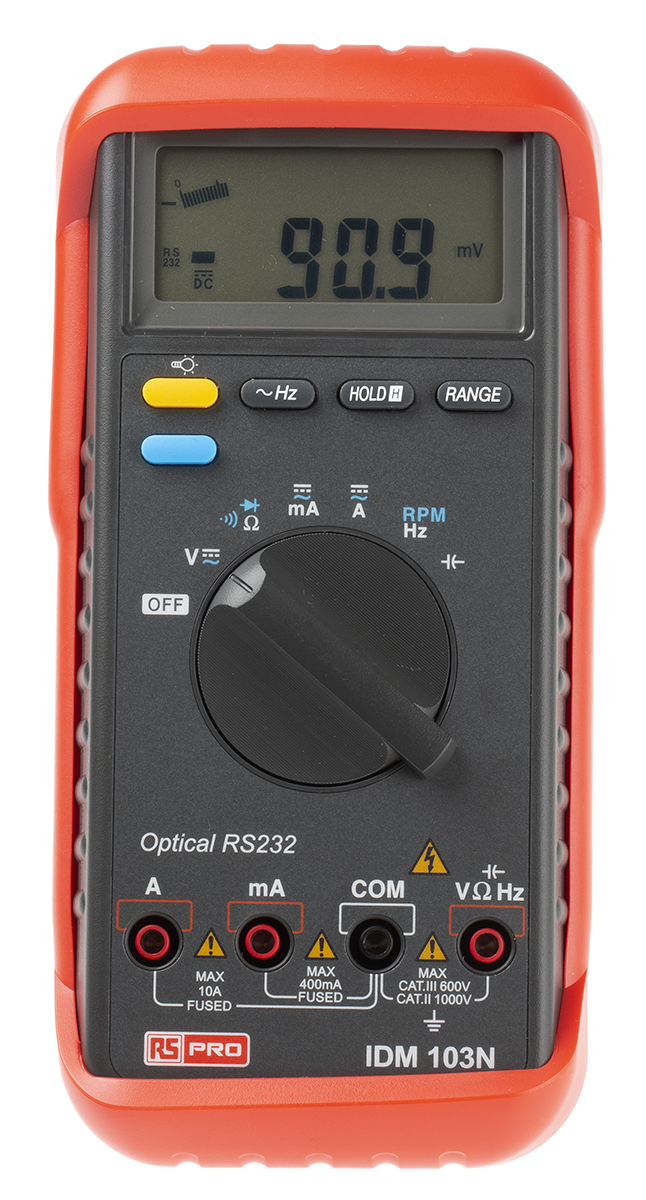

RS Pro IDM103N Digital Multimeter RS Pro IDM103N offers high specification performance with 4000 Count display and 42 segment bargraph. Features and Benefits 10 A (continuous) current range Data hold/relative modes 1 MHz counter with full 9999 Count display Diode test and continuity sounder 4 nF to 40 μF capacitance ranges Mains proof resistance ranges Full autoranging with manual override Auto power shutdown Digital display update rate 2 per second Bargraph display update rate 20 per second Fused 400 mA and 10A ranges Dust and water protected to IP64 Water resistant via O-Ring sealed case Dual high energy fuse protection Supplied with Protective holster with probe storage, lead set, batteries and instruction manual

RS Pro , IDM103N Handheld Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc

Manufacturer:
Manufacturer Part No:
123-3235
Enrgtech Part No:
ET16832653
Warranty:
Manufacturer
£ 165.64
Checking for live stock
Dimensions:
100 x 55 x 212 (with Holster)mm
Capacitance Measurement Resolution:
1pF
DC Current Measurement Resolution:
10µA dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Width:
55mm
AC Current Measurement Resolution:
10µA ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Model Number p:
IDM103N
Resistance Measurement Resolution:
100mΩ
Best AC Voltage Accuracy:
±1.3% + 5 Digits
Absolute Maximum AC Current Measurement:
10A ac
Maximum Frequency:
40MHz
Absolute Maximum Capacitance Measurement:
40mF
Battery Type:
AAA 1.5 V, AM4, IEC LR03
Absolute Maximum Resistance Measurement:
40MΩ
Maximum Operating Temperature:
+50°C
Best Capacitance Measurement Accuracy:
±2% + 8 Digits
Minimum Operating Temperature:
0°C
AC Voltage Measurement Resolution:
0.1mV ac
Length:
100mm
Absolute Maximum DC Current Measurement:
10A dc
Display Type:
Digital
Best DC Current Accuracy:
±0.6% + 2 Digits
Weight:
620g
Safety Category Level:
CAT II, CAT III
Best AC Current Accuracy:
±1.5% + 5 Digits
Safety Category Voltage:
600 V, 1000V
Multimeter Type:
Handheld
Height:
212mm
Best Resistance Measurement Accuracy:
±0.6% + 3 Digits
Best DC Voltage Accuracy:
±0.25% + 2 Digits
DC Voltage Measurement Resolution:
100µV dc
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance
pdf icon
Instruction Manual(Technical Reference)
pdf icon
RS PRO Datasheet(Technical Reference)
