Width:
302mm
Height:
107mm
Length:
265mm
Weight:
2.9kg
True RMS:
Yes
Calibrated:
UKAS
Dimensions:
265 x 302 x 107mm
Display Type:
Digital
Model Number p:

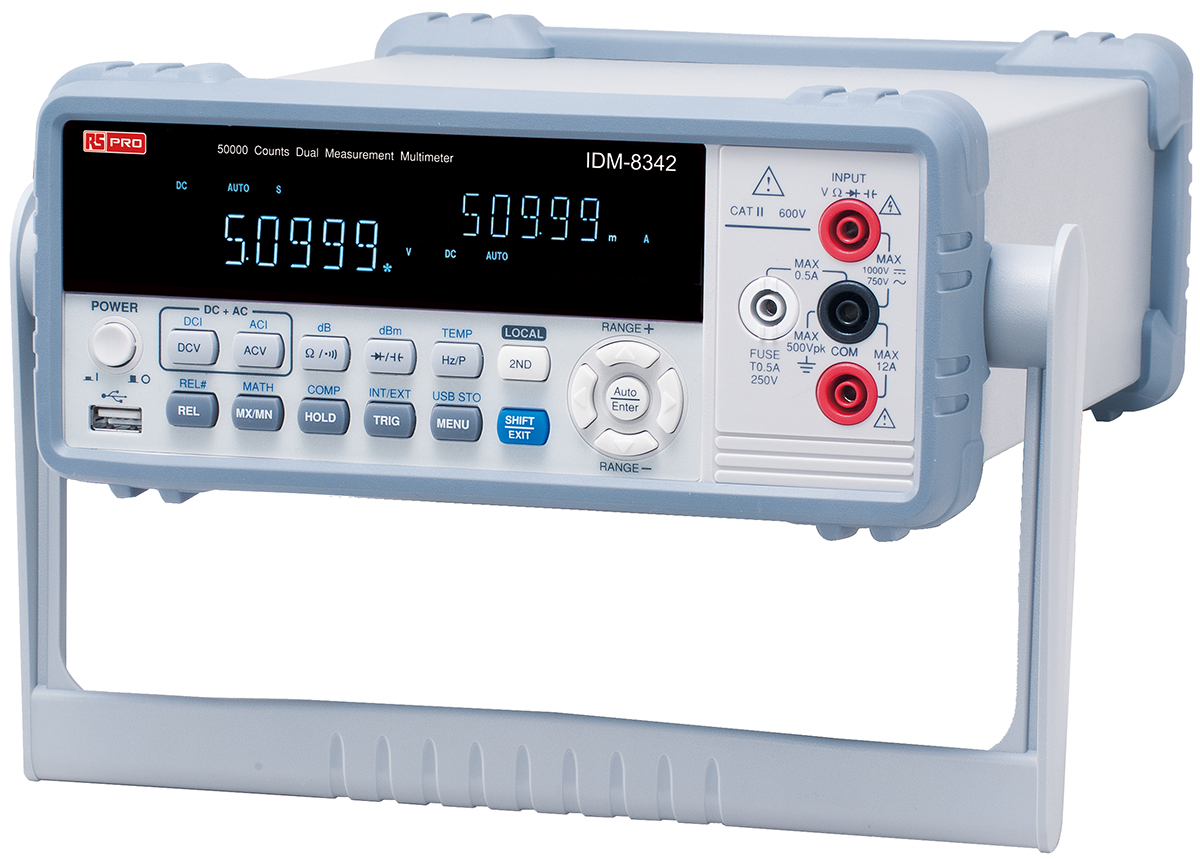

IDM8342
Multimeter Type:
Bench
Maximum Frequency:
1MHz
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Best AC Current Accuracy:
±0.5% + 20 Digits
Best AC Voltage Accuracy:
±0.35% + 15 Digits
Best DC Current Accuracy:
±0.05% + 4 Digits
Best DC Voltage Accuracy:
±0.02% + 4 Digits
AC Current Measurement Resolution:
10nA ac
AC Voltage Measurement Resolution:
10µV ac
DC Current Measurement Resolution:
10nA dc
DC Voltage Measurement Resolution:
10µV dc
Resistance Measurement Resolution:
10mΩ
Capacitance Measurement Resolution:
0.001nF
Temperature Measurement Resolution:
0.1°C
Best Resistance Measurement Accuracy:
±0.1% + 3 Digits
Best Capacitance Measurement Accuracy:
±2% + 4 Digits
Best Temperature Measurement Accuracy:
±2 °C
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
50MΩ
Absolute Maximum Capacitance Measurement:
50µF
Absolute Maximum Temperature Measurement:
+300°C
