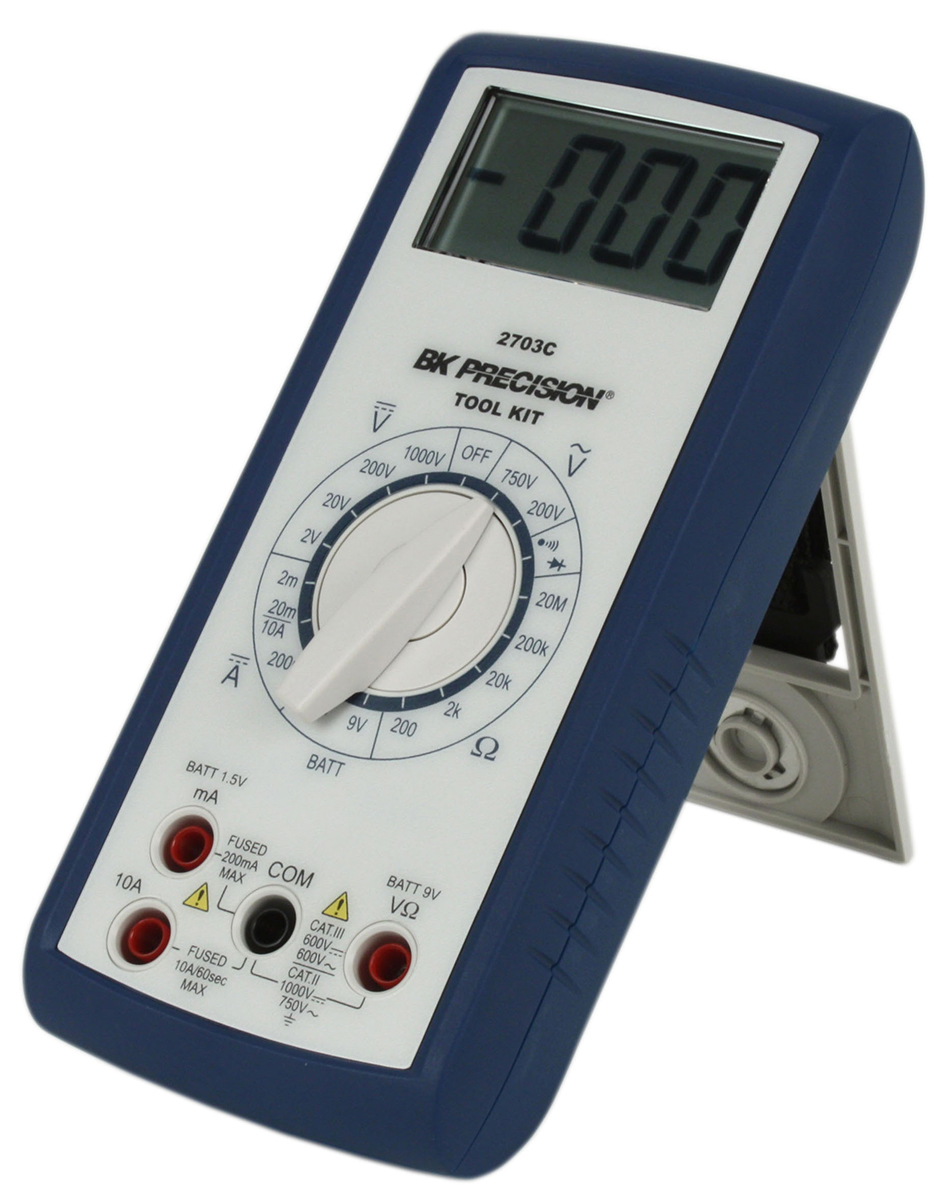

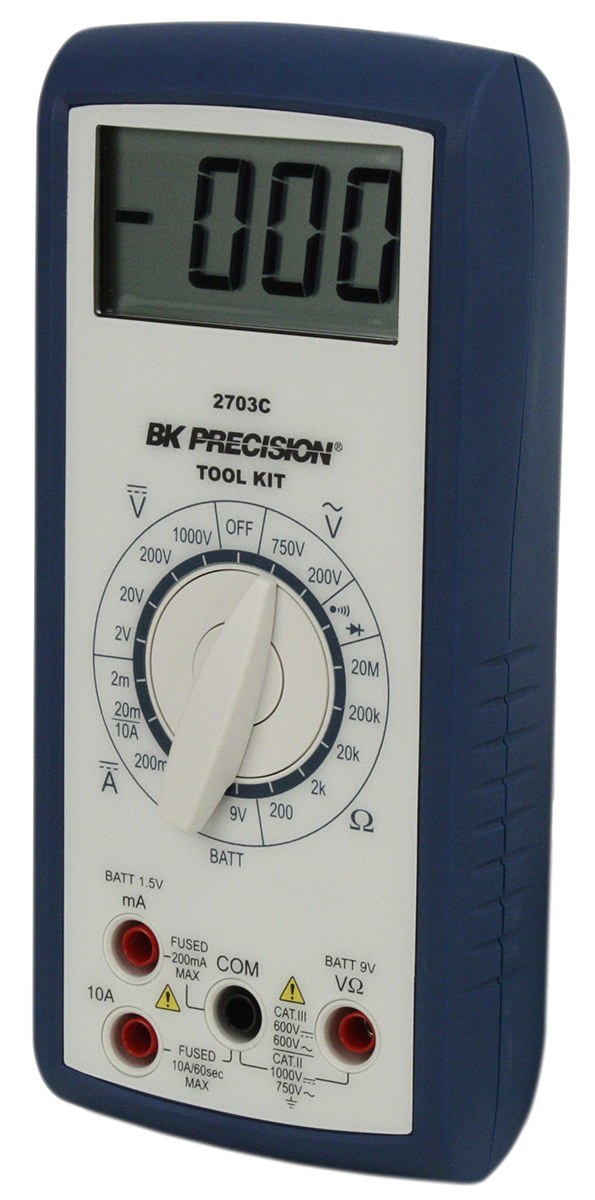

BK2703C Handheld Digital Multimeter, 10A dc Max, 750V ac Max

Multimeter Type:

Handheld

Display Type:

Digital

Model Number p:

BK2703C

Functions Measured:

AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance

Absolute Maximum DC Voltage Measurement:

1000V dc

Absolute Maximum DC Current Measurement:

10A dc

Absolute Maximum Resistance Measurement:

20MΩ

Absolute Maximum AC Voltage Measurement:

750V ac

Maximum Frequency:

500Hz

DC Current Measurement Resolution:

1µA dc

AC Voltage Measurement Resolution:

100mV ac

Resistance Measurement Resolution:

100mΩ

DC Voltage Measurement Resolution:

1mV dc

Safety Category Level:

CAT II, CAT III

Dimensions:

78 x 42.5 x 165mm

Best DC Voltage Accuracy:

±1.2% + 1 Digits

Minimum Operating Temperature:

0°C

Height:

165mm

Best AC Voltage Accuracy:

±2% + 10 Digits

Best Resistance Measurement Accuracy:

±3% + 5 Digits

Battery Type:

9V

Safety Category Voltage:

600 V, 750 V, 1000V

Best DC Current Accuracy:

±3% + 3 Digits

Weight:

285g

Maximum Operating Temperature:

+50°C

Width:

42.5mm

Length:

78mm
