The 2704C has all of the functionality for basic Digital Multimeter applications including some high end features you might not expect. The 2000 count LCD can display resistance values up to 2 Gohm, capacitance to 20 uF or a transistors common-emitter gain value up to 1000.
Magnetic hanger
DC voltage to 1000 V
AC voltage to 750 V
Resistance to 2000 Mohm
Capacitance to 20 uF
Continuity test
Diode test
Logic test
hFE Transistor test
One-handed operation
Measures up to 10 A (AC & DC)
DC voltage to 1000 V
AC voltage to 750 V
Resistance to 2000 Mohm
Capacitance to 20 uF
Continuity test
Diode test
Logic test
hFE Transistor test
One-handed operation
Measures up to 10 A (AC & DC)

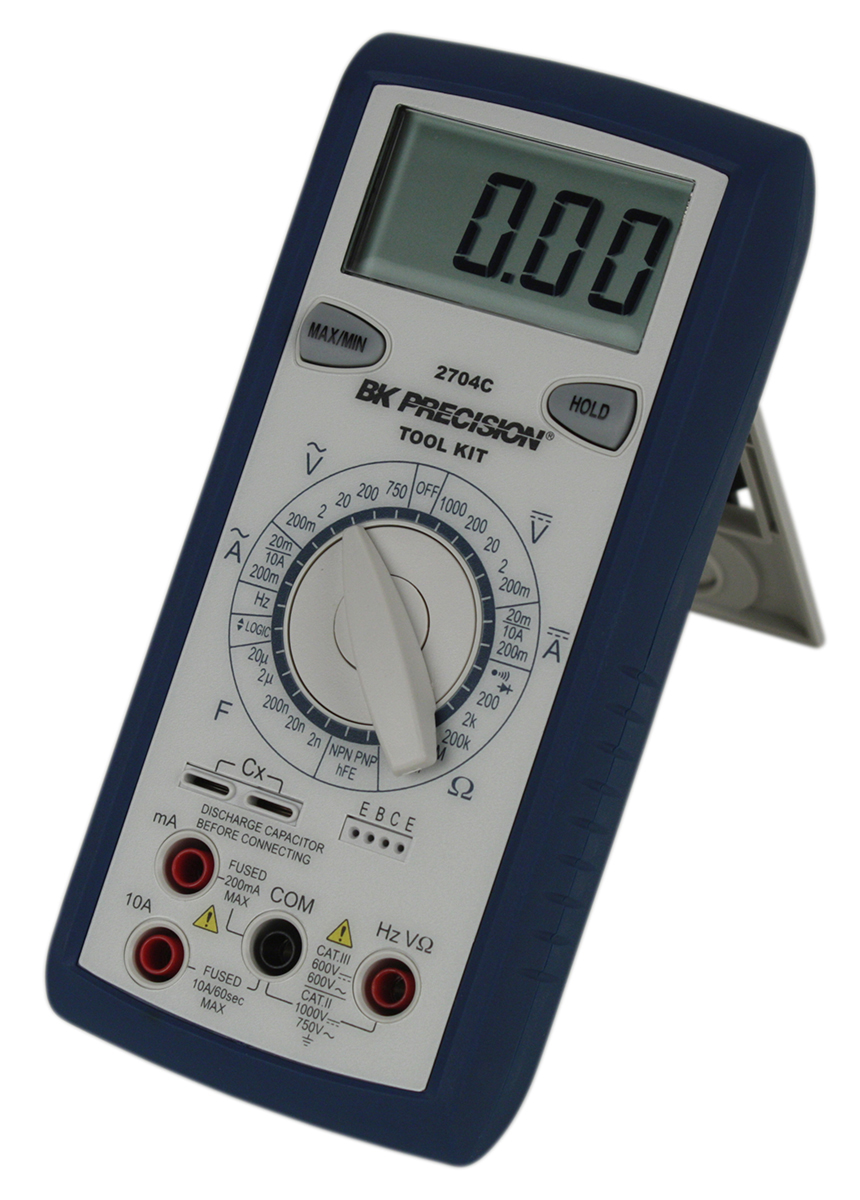

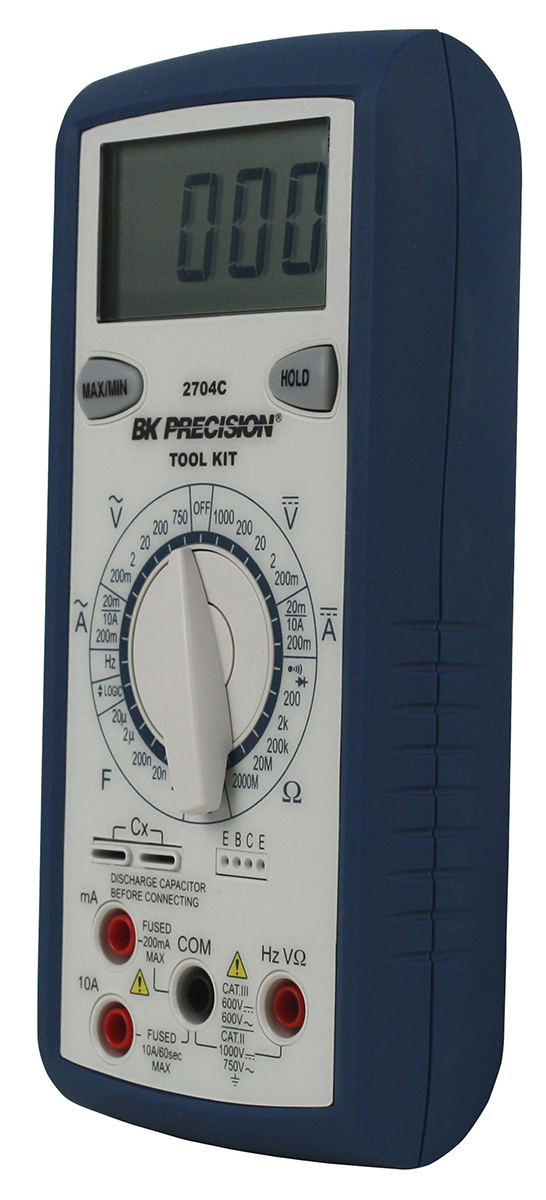

BK2704C Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 750V ac Max
Manufacturer:
BK Precision
Manufacturer Part No:
BK2704C
Enrgtech Part No:
ET18611536
Warranty:
Manufacturer
£ 77.49
Checking for live stock
Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:
BK2704C
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Resistance
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum Resistance Measurement:
2GΩ
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum Capacitance Measurement:
20µF
Maximum Frequency:
500Hz
DC Current Measurement Resolution:
10µA dc
