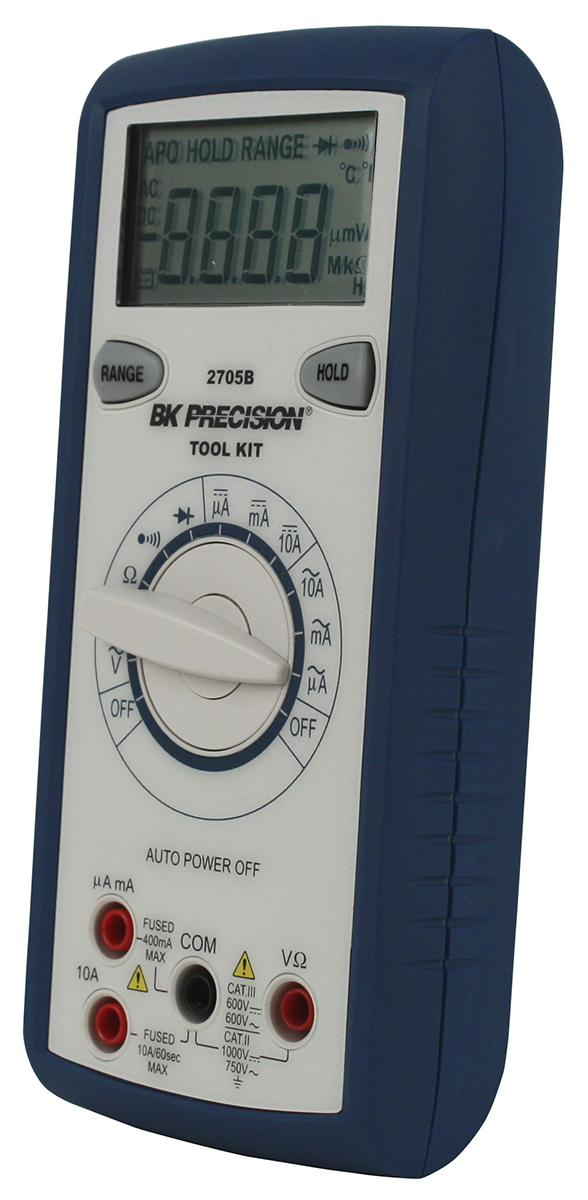

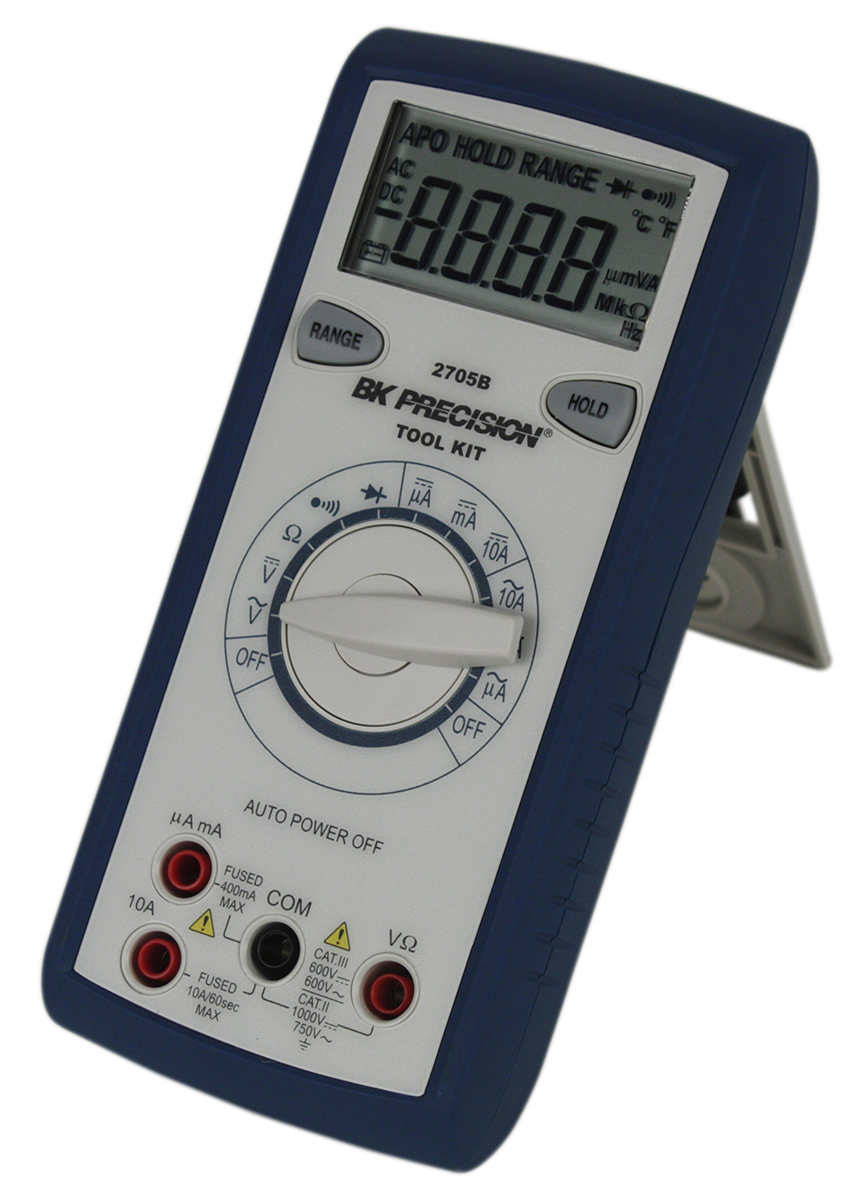

BK2705B Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 750V ac Max

Multimeter Type:

Handheld

Model Number p:

BK2705B

Display Type:

Digital

Functions Measured:

AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance

Absolute Maximum DC Current Measurement:

10A dc

Absolute Maximum AC Voltage Measurement:

750V ac

Absolute Maximum Resistance Measurement:

40MΩ

Absolute Maximum AC Current Measurement:

10A ac

Absolute Maximum DC Voltage Measurement:

1000V dc

Maximum Frequency:

500Hz

DC Current Measurement Resolution:

0.1µA dc

AC Current Measurement Resolution:

0.1µA ac

Resistance Measurement Resolution:

100mΩ

DC Voltage Measurement Resolution:

0.1mV dc

AC Voltage Measurement Resolution:

0.1mV ac

Safety Category Level:

CAT II, CAT III

Battery Type:

9V

Dimensions:

78 x 42.5 x 165mm

Best DC Voltage Accuracy:

±1% + 2 Digits

Width:

42.5mm

Height:

165mm

Minimum Operating Temperature:

0°C

Safety Category Voltage:

600 V, 750 V, 1000V

Best AC Current Accuracy:

±3.5% + 5 Digits

Weight:

285g

Best AC Voltage Accuracy:

±2% + 5 Digits

Maximum Operating Temperature:

+50°C

Best DC Current Accuracy:

±3% + 3 Digits

Length:

78mm

Best Resistance Measurement Accuracy:

±5% + 4 Digits
