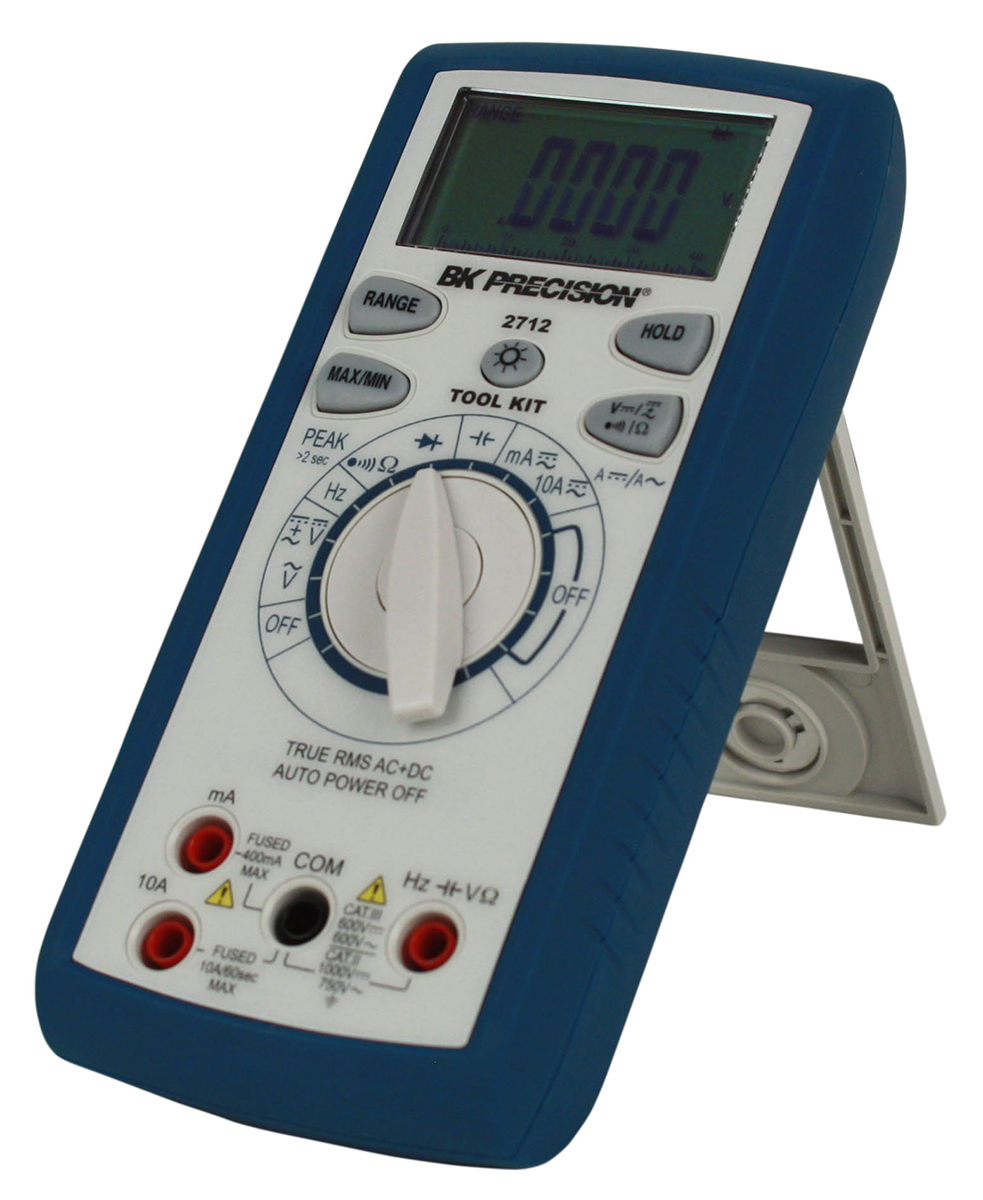

BK2712 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max

Multimeter Type:

Handheld

Display Type:

Digital

Model Number p:

BK2712

Functions Measured:

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance

Absolute Maximum DC Voltage Measurement:

1000V dc

Absolute Maximum AC Voltage Measurement:

750V ac

Absolute Maximum DC Current Measurement:

10A dc

Absolute Maximum AC Current Measurement:

10A ac

Absolute Maximum Resistance Measurement:

40MΩ

Absolute Maximum Capacitance Measurement:

40µF

Maximum Frequency:

1kHz

DC Current Measurement Resolution:

1µA dc

AC Current Measurement Resolution:

1µA ac

DC Voltage Measurement Resolution:

0.01mV dc

AC Voltage Measurement Resolution:

0.01mV ac

Resistance Measurement Resolution:

10mΩ

Safety Category Level:

CAT II, CAT III

Capacitance Measurement Resolution:

1pF

Weight:

285g

Best DC Current Accuracy:

±2% + 10 Digits

Length:

78mm

Width:

42.5mm

Best AC Current Accuracy:

±2.5% + 30 Digits

Dimensions:

78 x 42.5 x 165mm

Best DC Voltage Accuracy:

±0.15% + 10 Digits

Best Resistance Measurement Accuracy:

±1.5% + 20 Digits

Battery Type:

9V

Safety Category Voltage:

600 V, 750 V, 1000V

Best AC Voltage Accuracy:

±2% + 20 Digits

Best Capacitance Measurement Accuracy:

±5% +5 Digits

Minimum Operating Temperature:

0°C

Height:

165mm

Maximum Operating Temperature:

+50°C
