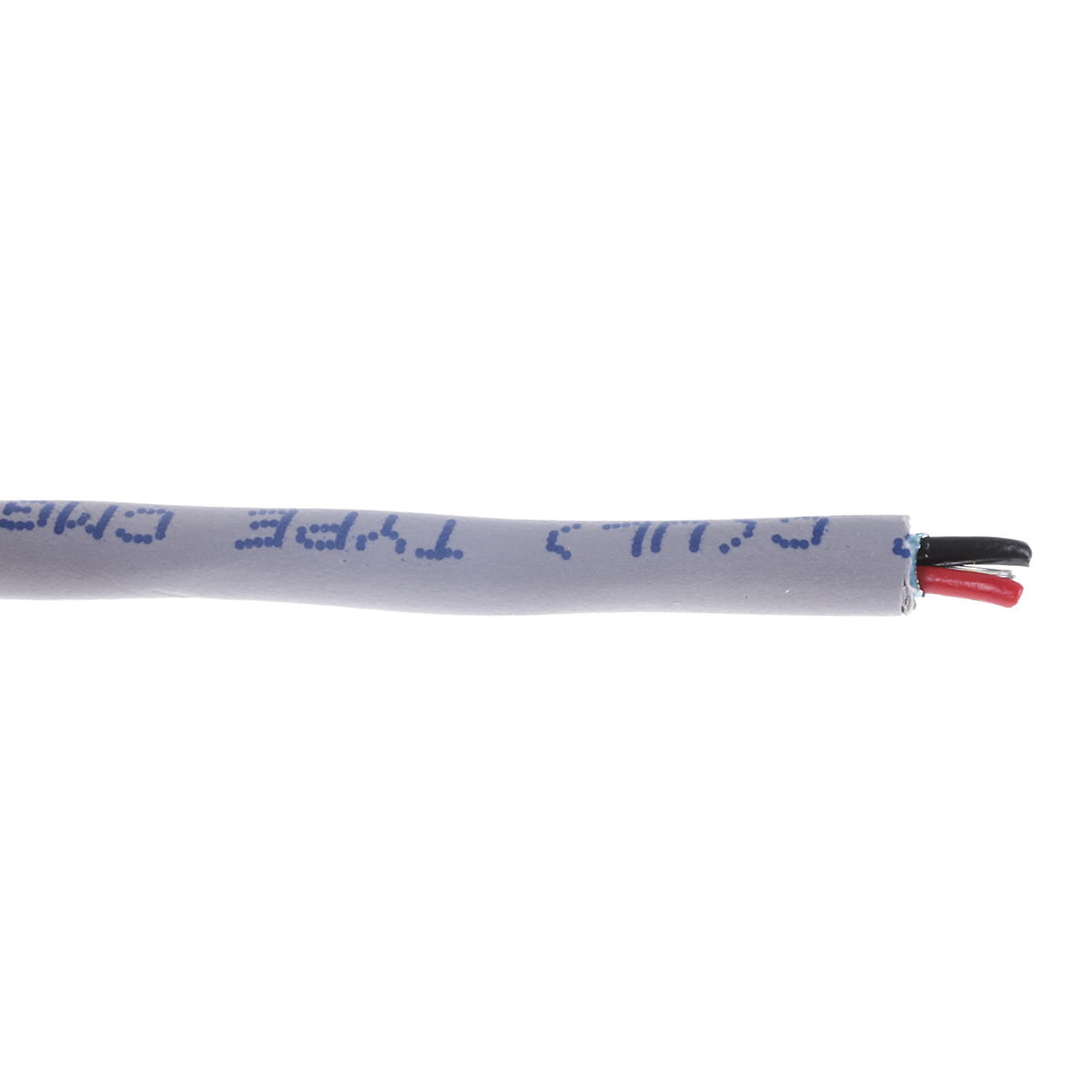

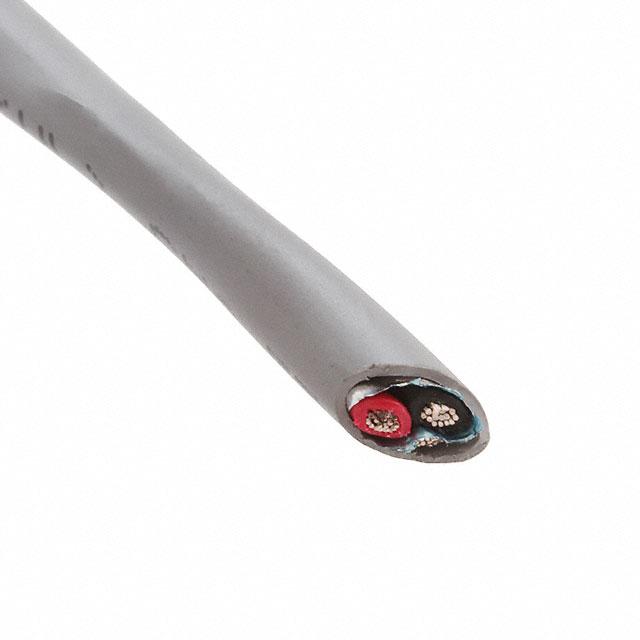

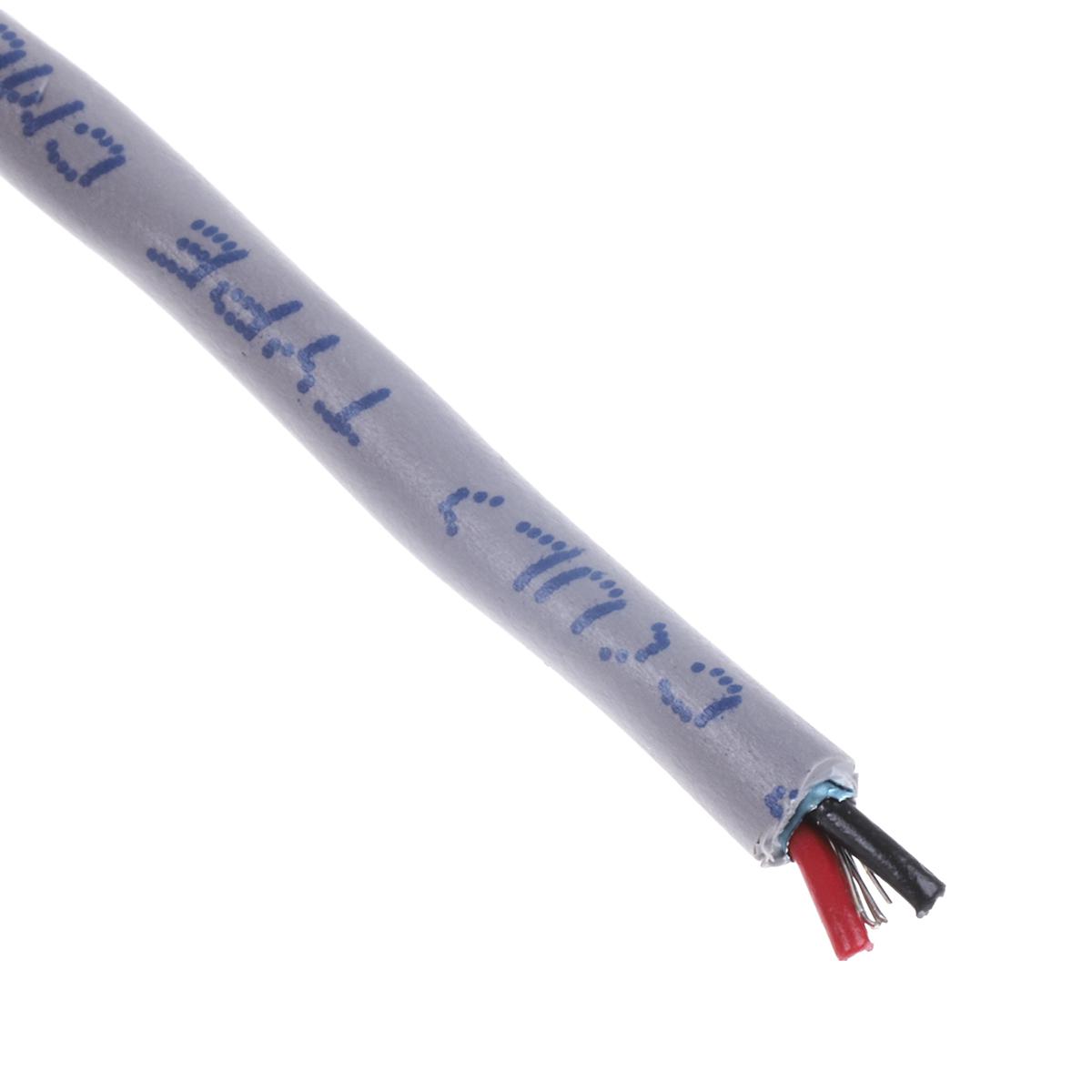

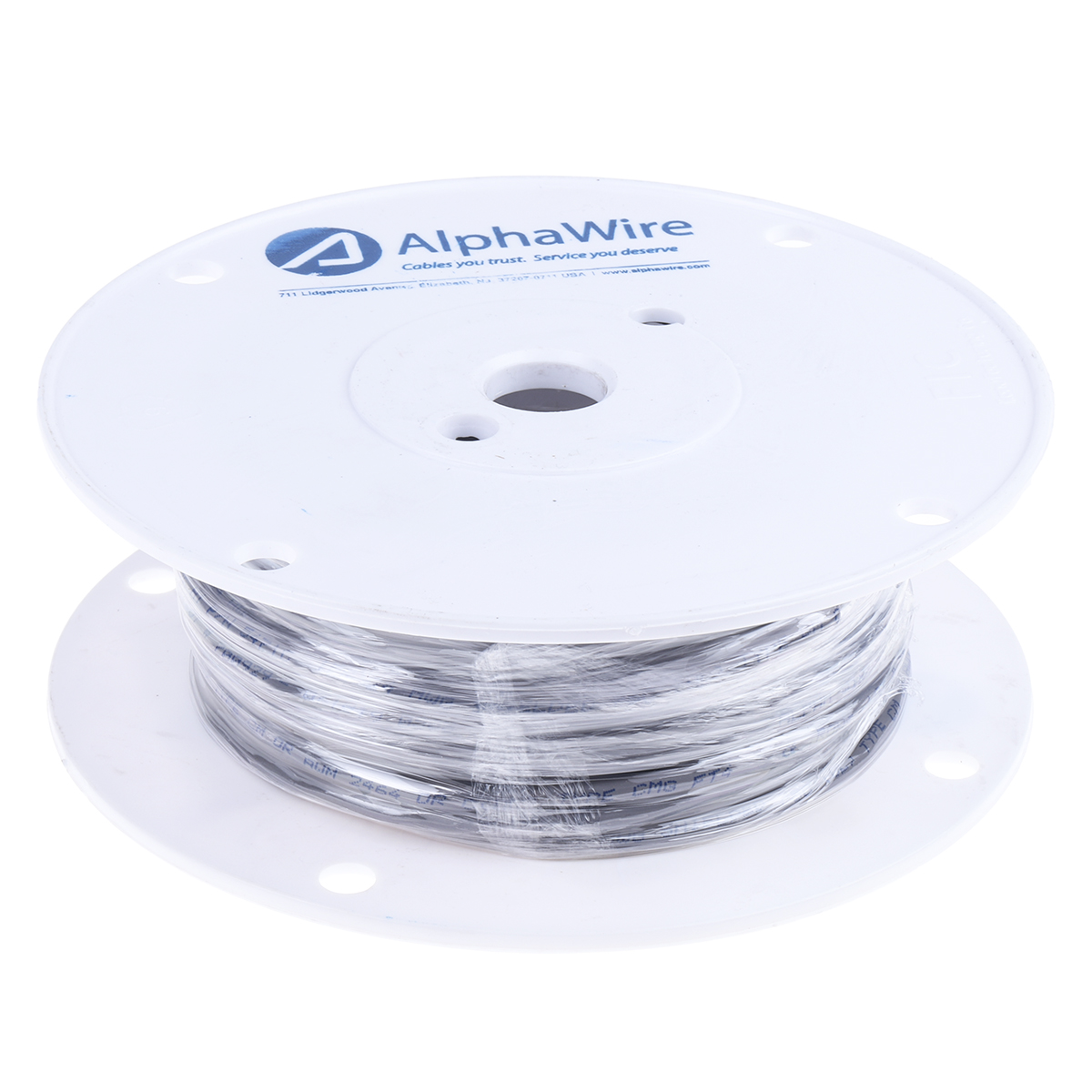

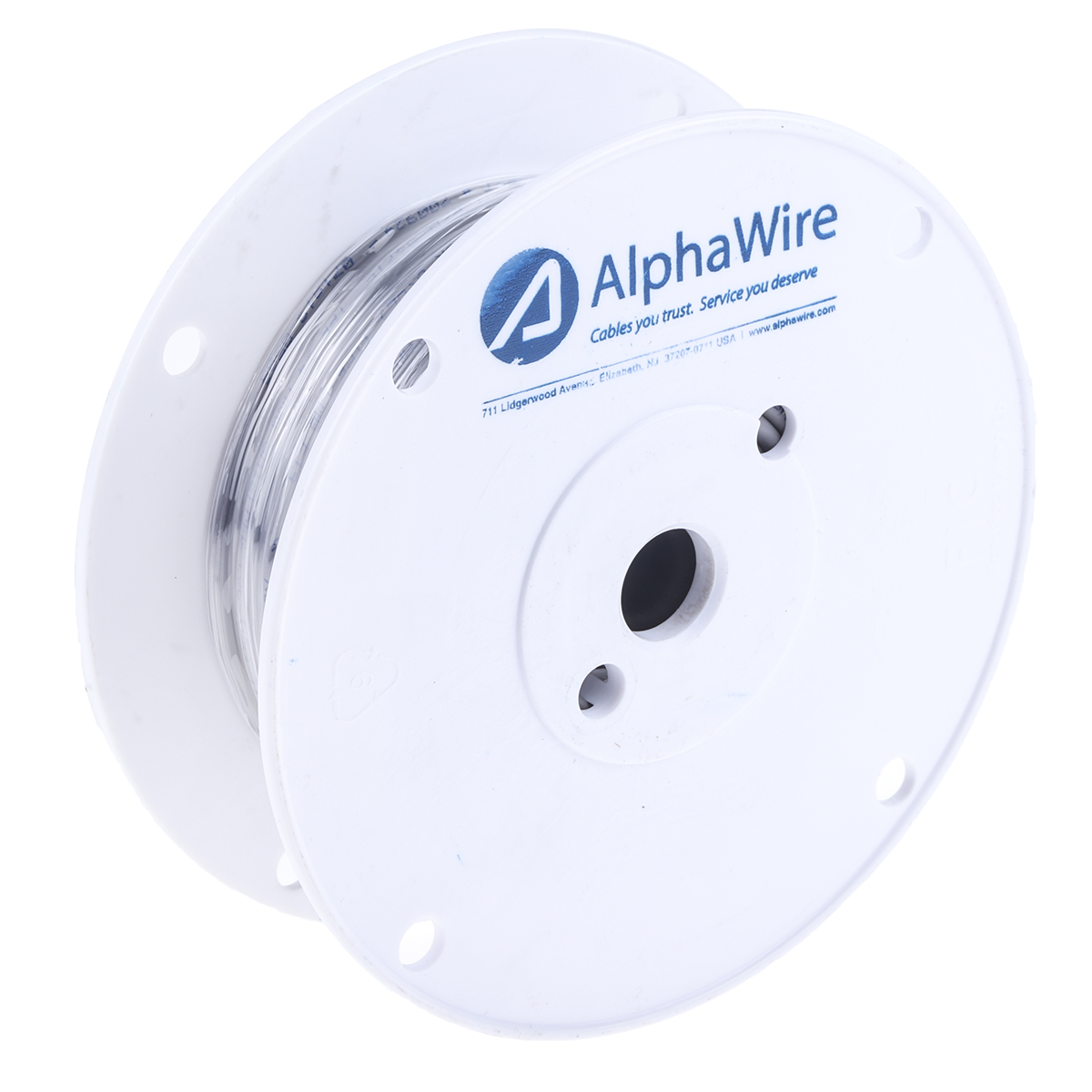

5471c-sl005 Alpha Wire Shielded Cable, Twisted Pair, 24 AWG
5471c-sl005 Alpha Wire Shielded Cable, Twisted Pair, 24 AWG
5471c-sl005 Alpha Wire Shielded Cable, Twisted Pair, 24 AWG
5471c-sl005 Alpha Wire Shielded Cable, Twisted Pair, 24 AWG
5471c-sl005 Alpha Wire Shielded Cable, Twisted Pair, 24 AWG
5471c-sl005 Alpha Wire Shielded Cable, Twisted Pair, 24 AWG

CABLE 2COND 24AWG SHLD 100'

RoHs Compliant

Alpha Wire Shielded Cable, Twisted Pair, 24 AWG

Manufacturer:
Alpha Wire
Manufacturer Part No:
5471C SL005
Enrgtech Part No:
ET10115973
Warranty:
Manufacturer
£ 25.33
Checking for live stock
American Wire Gauge:
24 AWG
Standards Met:
CE
Cable Shape:
Twisted Pair
Series:
Alpha Essentials
Shield Type:
F/UTP
Fire Behaviour:
Flame Retardant
Core Strands:
7/0.2 mm
Sheath Colour:
Grey
Length:
30m
Screened/Unscreened:
Screened
Number of Pairs:
1
Outer Sheath Material:
PVC
Number of Cores:
2
Voltage Rating:
300 V
Characteristic Impedance:
54 Ω
Outer Diameter:
3.96mm
Cross Sectional Area:
0.23 mm²
Ratings:
UL Style 2464
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
7/32
Operating Temperature:
-20°C ~ 80°C
Usage:
-
Number of Conductors:
2 (1 Pair Twisted)
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
24 AWG
Shield Type:
Foil
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
100.0' (30.5m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
15 Weeks
Shield Coverage:
100%
Features:
Drain Wire
Jacket (Insulation) Diameter:
0.156" (3.96mm)
Conductor Material:
Copper, Tinned
Series:
-
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Aluminum
ECCN:
EAR99
Base Product Number:
5471C
Jacket Color:
Slate
pdf icon
Datasheet(Technical Reference)
pdf icon
Cable Selection Guide(Technical Reference)
pdf icon
Comm, Control, Industrial Cable Brochure(Product Brief)
pdf icon
Comm, Control, Industrial Cable Catalog(Other Related Documents)
