’V’ Series Needle Valve
Designed for positive leak-tight shut-off and regulation in process, power and instrumentation applications
Pressure rating 5000 psig (345 bar)
Body material ASTM A182 Type F316
Operating temperature range -54 to +232°C
Blunt stem tip (30 degrees) for isolation and coarse flow control
PTFE stem seal material
Pressure rating 5000 psig (345 bar)
Body material ASTM A182 Type F316
Operating temperature range -54 to +232°C
Blunt stem tip (30 degrees) for isolation and coarse flow control
PTFE stem seal material

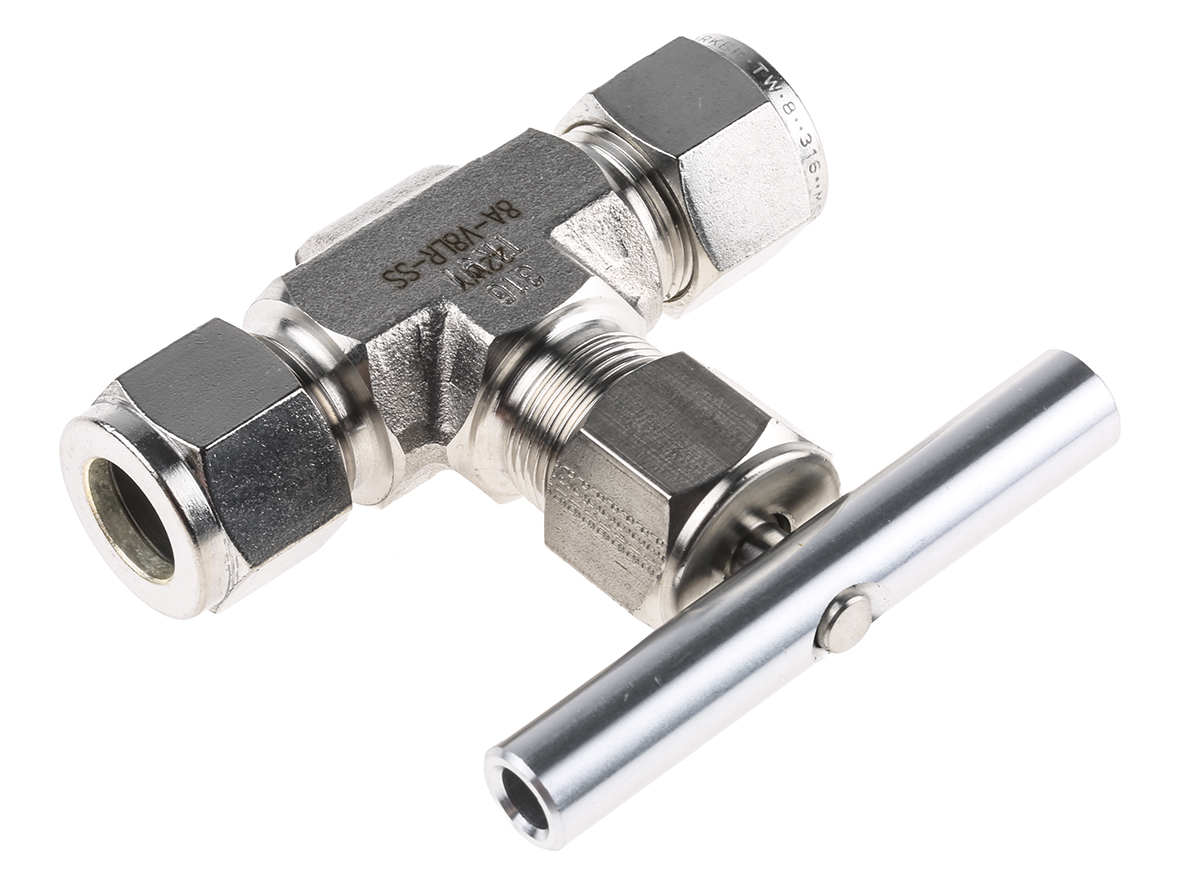

Stainless Steel Needle Valve 1/2 in
Manufacturer:
Parker
Manufacturer Part No:
8A-V8LR-SS
Enrgtech Part No:
ET14002599
Warranty:
Manufacturer
£ 223.12
Checking for live stock
Connection:
1/2 in
Body Material:
Stainless Steel
Connection Orientation:
Straight
Maximum Liquid Pressure:
345bar
Valve Orientation:
Inline
Flow Factor Kv:
1.05m³/h
Maximum Working Pressure:
345 bar
