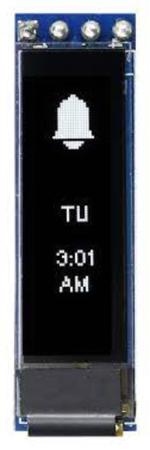

The Midas chip-on-board 96 x 16 resolution graphic OLED display has a white on black appearance. This display uses the SSD1306BZ controller.
Operating temperature-40°C to +80°C
0.84in White Passive matrix OLED Display 96 x 16pixels COB I2C Interface
Manufacturer:
MidasManufacturer Part No:
MDOB096016AV-WI
Enrgtech Part No:
ET21640050
Warranty:
Manufacturer
£ 7.35
Checking for live stock
Diagonal Display Size:
0.84in
Viewing Area Dimensions:
21.104 x 3.504mm
Matrix Type:
Passive
Display Colours:
White
Resolution:
96 x 16pixels
Contrast Ratio:
2000:1
Driver Mounting:
COB
Interface Ports:
I2C
Dimensions:
33.0 x 10.0 x 2.45mm
Depth:
2.45mm
Height:
2.45mm
Maximum Operating Temperature:
+80°C
