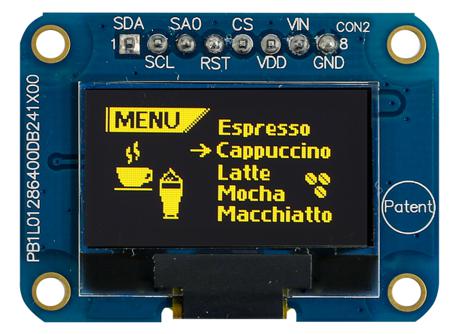

0.96in Yellow Passive matrix OLED Display 128 x 64pixels COB I2C Interface

Diagonal Display Size:

0.96in

Viewing Area Dimensions:

21.74 x 10.86mm

Matrix Type:

Passive

Display Colours:

Yellow

Resolution:

128 x 64pixels

Contrast Ratio:

2000:1

Driver Mounting:

COB

Interface Ports:

I2C

Dimensions:

38.00 x 28.50 x 2.37mm

Depth:

2.37mm

Height:

2.37mm

Maximum Operating Temperature:

+80°C

Viewing Area Width:

21.74mm

Viewing Area Height:

10.86mm

Forward Voltage:

3.3 V dc

Operating Temperature Range:

-40 → +80°C

Width:

38.00mm

Minimum Operating Temperature:

-40°C
