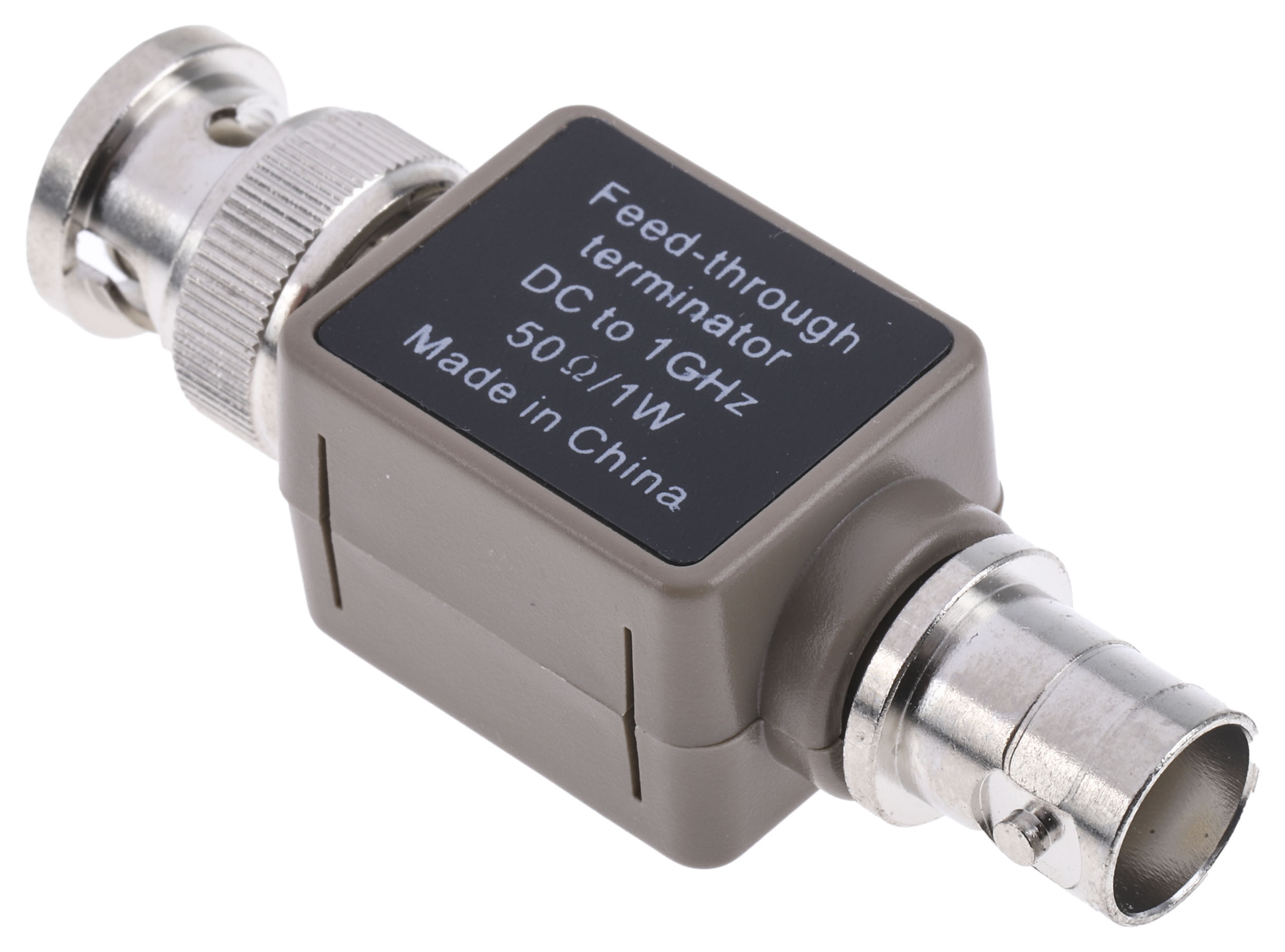

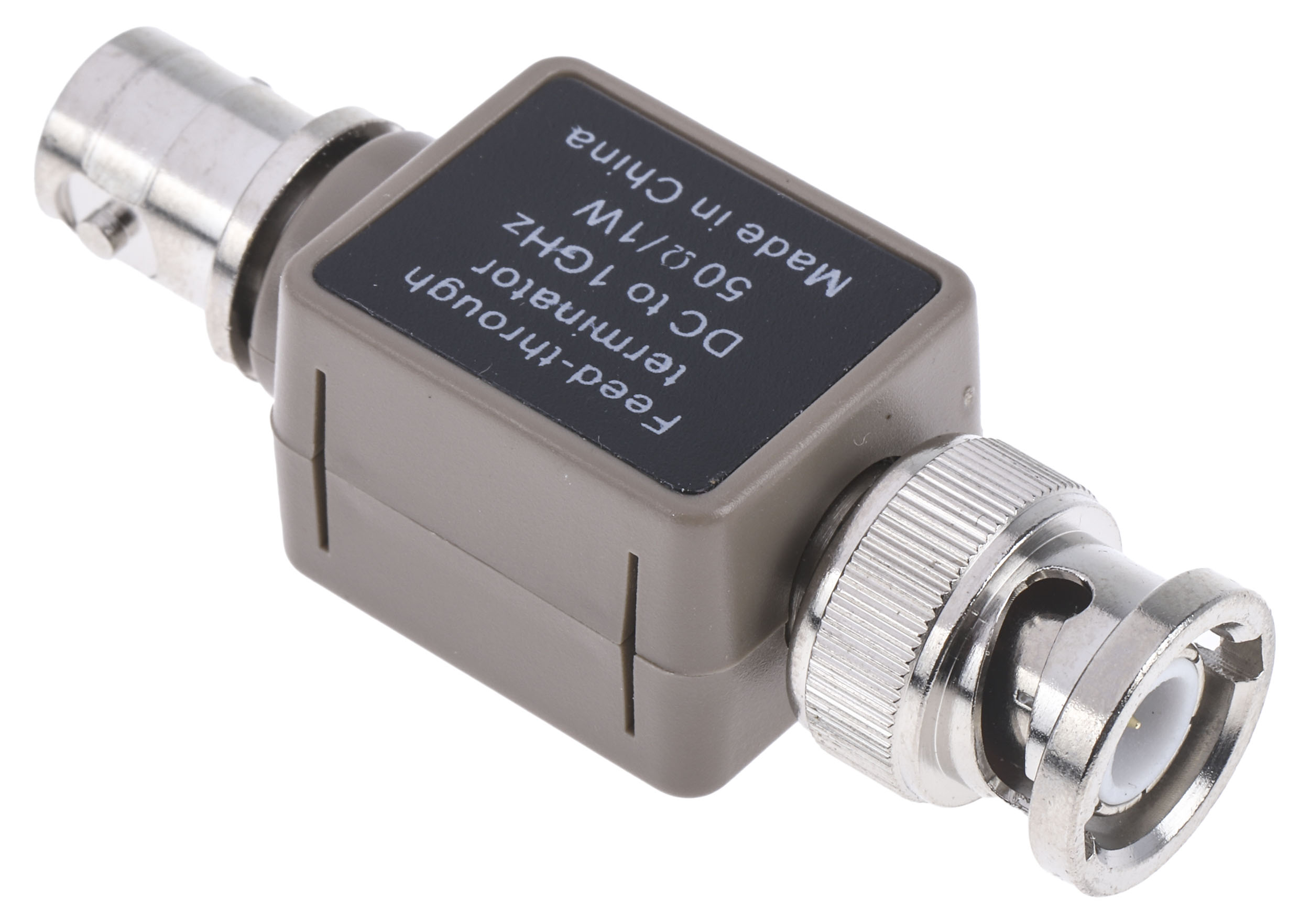

Pico Terminator TA051, BNC Feedthrough 50R 1W 1GHz
The Pico TA051 feed-through attenuator is a coaxial terminator with BNC connectors. It is useful for connecting signals from 50Ω sources into instruments with 1 MΩ impedance inputs, such as oscilloscopes.
Bandwidth DC to 1GHz Maximum power dissipation 1W Input impedance 50Ω Resistance tolerance ±2% Dimensions 56 x 20 x 17 mm (approximately 2.2 x 0.8 x 0.7 in) Connectors BNC, 1 male + 1 female Construction shielded inner box with plastic shell Weight 24 g (approximately 0.85 oz) each
