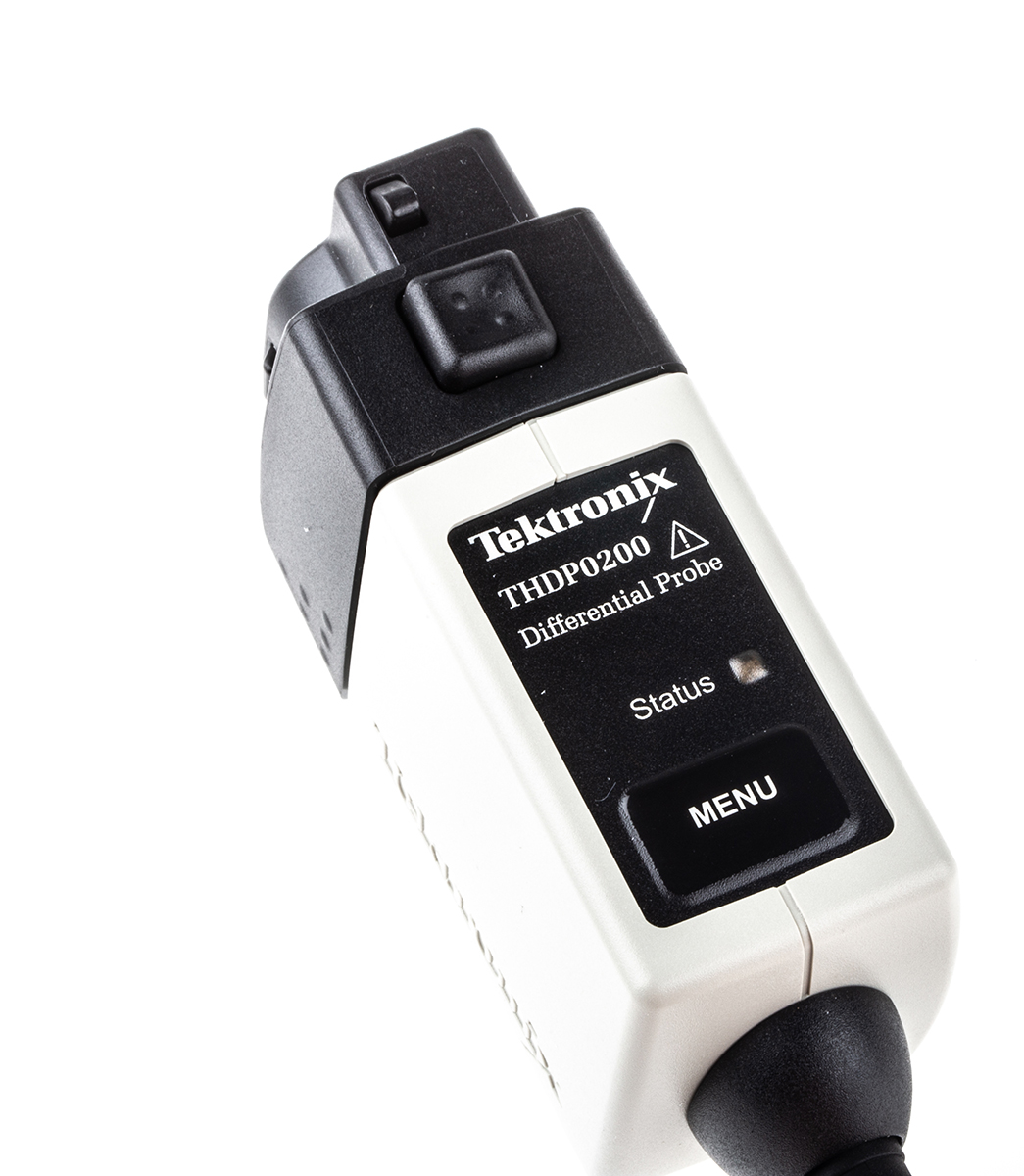

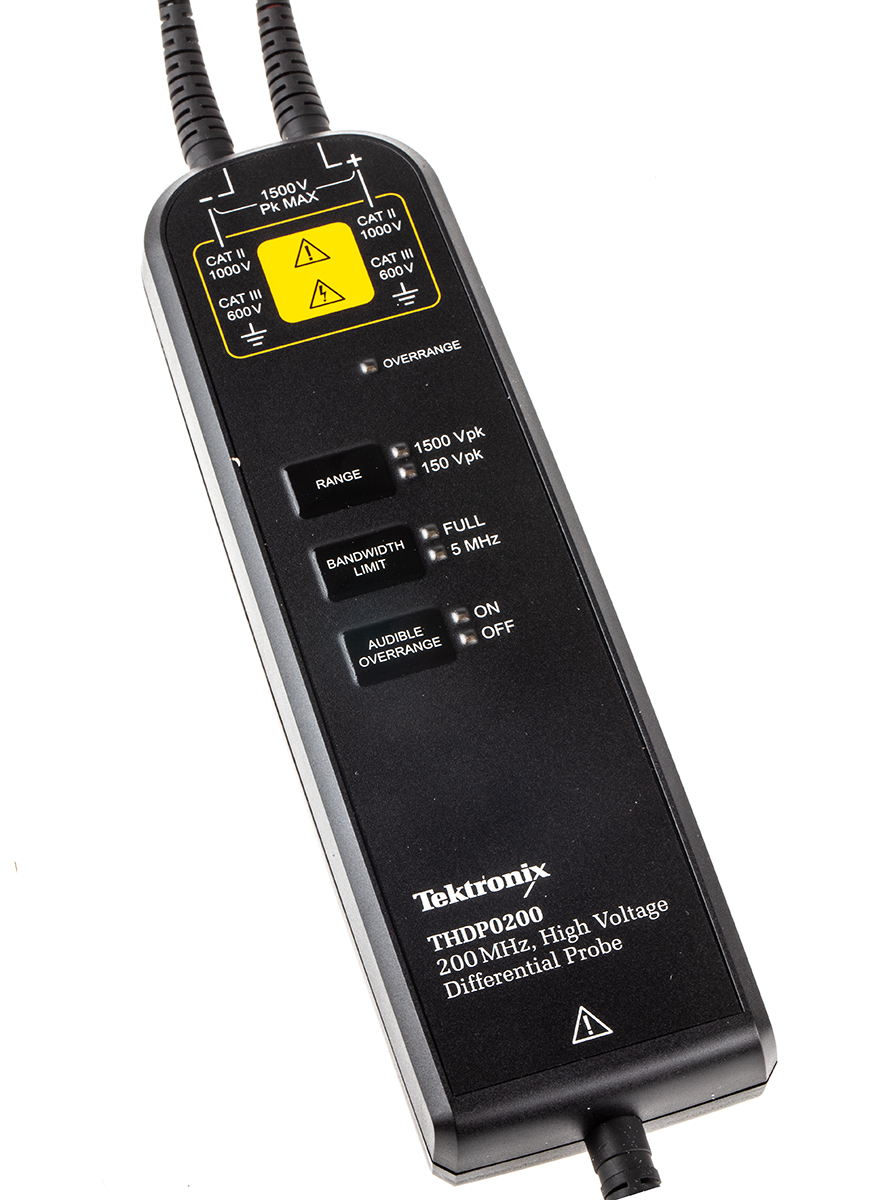

Tektronix Differential Oscilloscope Probes The Tektronix THDP0200 is an active differential oscilloscope probe capable of safely measuring differential voltages up to ±1500V. This probe is effective in making measurements in IGBT circuits such as motor drives and power converters. It supports bandwidths up to 200MHz and slew rates up to 275V/ns at 1/250 gain.
A broad portfolio of high-voltage probing solutions that enable users to safely and accurately make floating measurements.

Note:

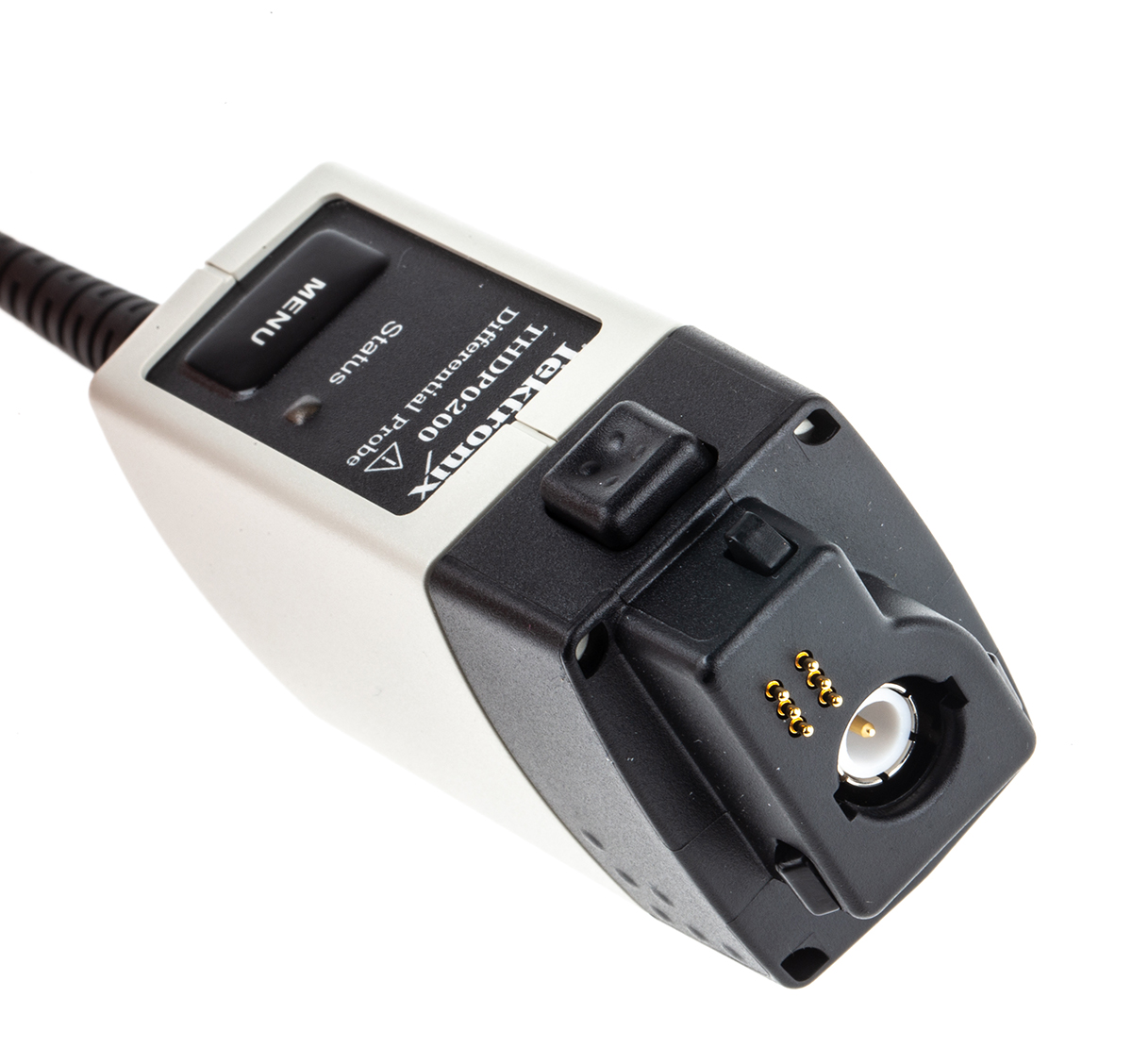

TMDP and THDP Series probes have the TekVPI® interface which enables smart communication between oscilloscope and probe - each TekVPI probe features controls and indicators located on the probe compensation box, designed to provide quick and easy access to the probe's most commonly required set-up controls and operating status. P52xxA Series probes have the Tektronix TekProbe® interface which communicates scale information to the oscilloscope Features and Benefits Bandwidth is DC to 200MHz Attenuation ratio is 1:100 and 1:1000 Rise time is 3.5ps Input impedance is 10Mohmll2pF Maximum common mode voltage is ±1.5KV Maximum Input voltage is 1000V CAT II 600V CAT III Wide compensation range (7pF-30pF) CMRR (typical) is DC: > -80dB 100kHz: > -60dB 3.2MHz: > -30dB 100MHz: > -26dB Overrange Indicator Safety Certified Switchable attenuation Switchable bandwidth limit Interface type TekVPI Applications High voltage differential probes are used for measuring voltage differences between two test points where neither test point is at ground. They can be found in:

Floating measurements
Switching power supply design
Motor drive design
Electronic ballast design
CRT display design
Power converter design and service
Power device evaluation
BNC interface (P5200A probes)
TekVPI interface (TMDP and THDP Series probes)
TekProbe interface Certifications CAT II 1000 V
CAT III 600 V
