Tektronix AC/DC Current Probe
The Tektronix is a high-performance, easy-to-use AC/DC probe designed for use with a variety of oscilloscopes. It is used with any instrument with BNC inputs and greater than >100 kΩ input termination.
Inclusions:
Probe ground lead 6in (152.4mm) long, a nylon carrying case, and an instruction manual (English).
Features and Benefits

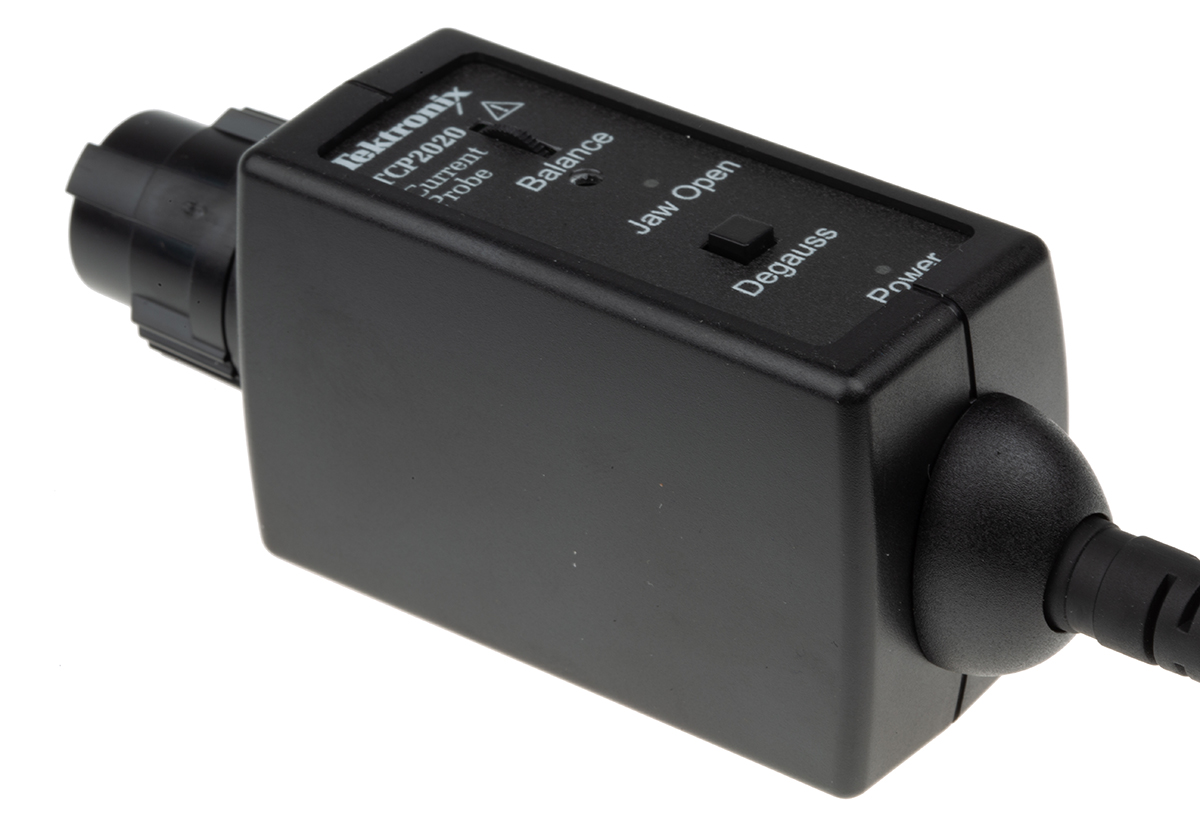

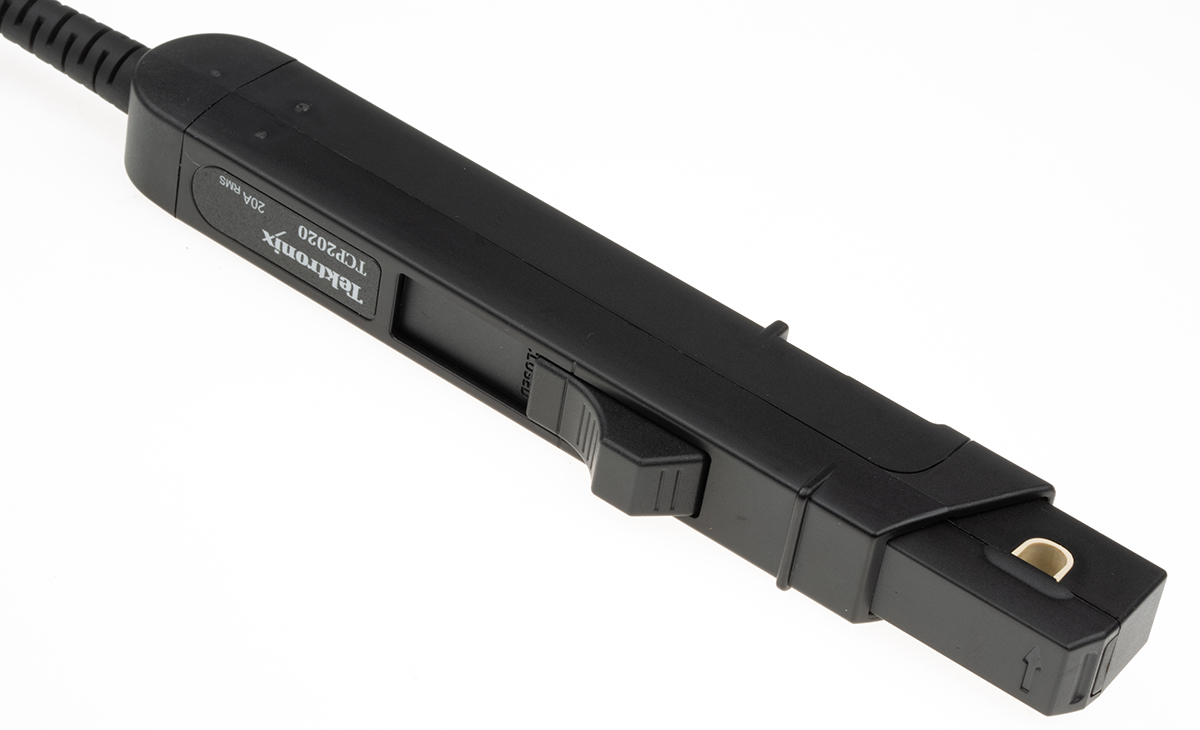

Easy-to-use and accurate AC/DC current measurements DC to greater than 50MHz bandwidth Core jaw diameter of 5mm (0.2in) Accurately measures current levels as low as 10mA per division High accuracy with typically less than 1% DC gain error Split-core construction allows easy circuit connection Low noise and DC drift 20A RMS maximum current capability 100A peak pulse current capability 10mA/mV sensitivity BNC output connects to most oscilloscopes and other measurement equipment (>100 kΩ termination required) Degauss button and thumbwheel for DC offset adjustment Powered by an AC adapter
Applications
Power supplies Semiconductor devices Power inverter/converters Electronic ballasts Industrial/consumer electronics Mobile communications Motor drives Transportation systems
Certifications
CAT II 150V CAT II 300V CAT II
