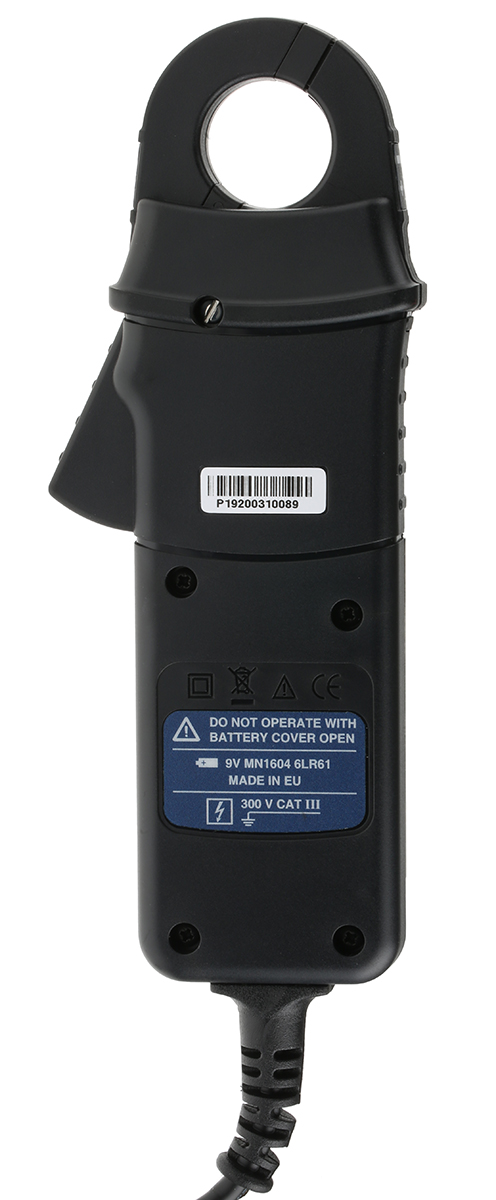

Pico Technology TA189 AC/DC Current Clamp Oscilloscope ProbeProbe The Pico Technology oscilloscope 30A current probe is for applications requiring current measurement without the need to disconnect wiring. It has a 2m long coax terminated cable with safety BNC connector. It uses closed-loop Hall Effect technology to measure both, AC and DC current with the high stability over long periods. It is ideal for current leakage monitoring and battery discharge testing. Features and Benefits Nominal current is 30A AC peak or DC
Overload capacity is 500A for 60 seconds
Output sensitivity of 100mV/A
Accuracy is ±1%

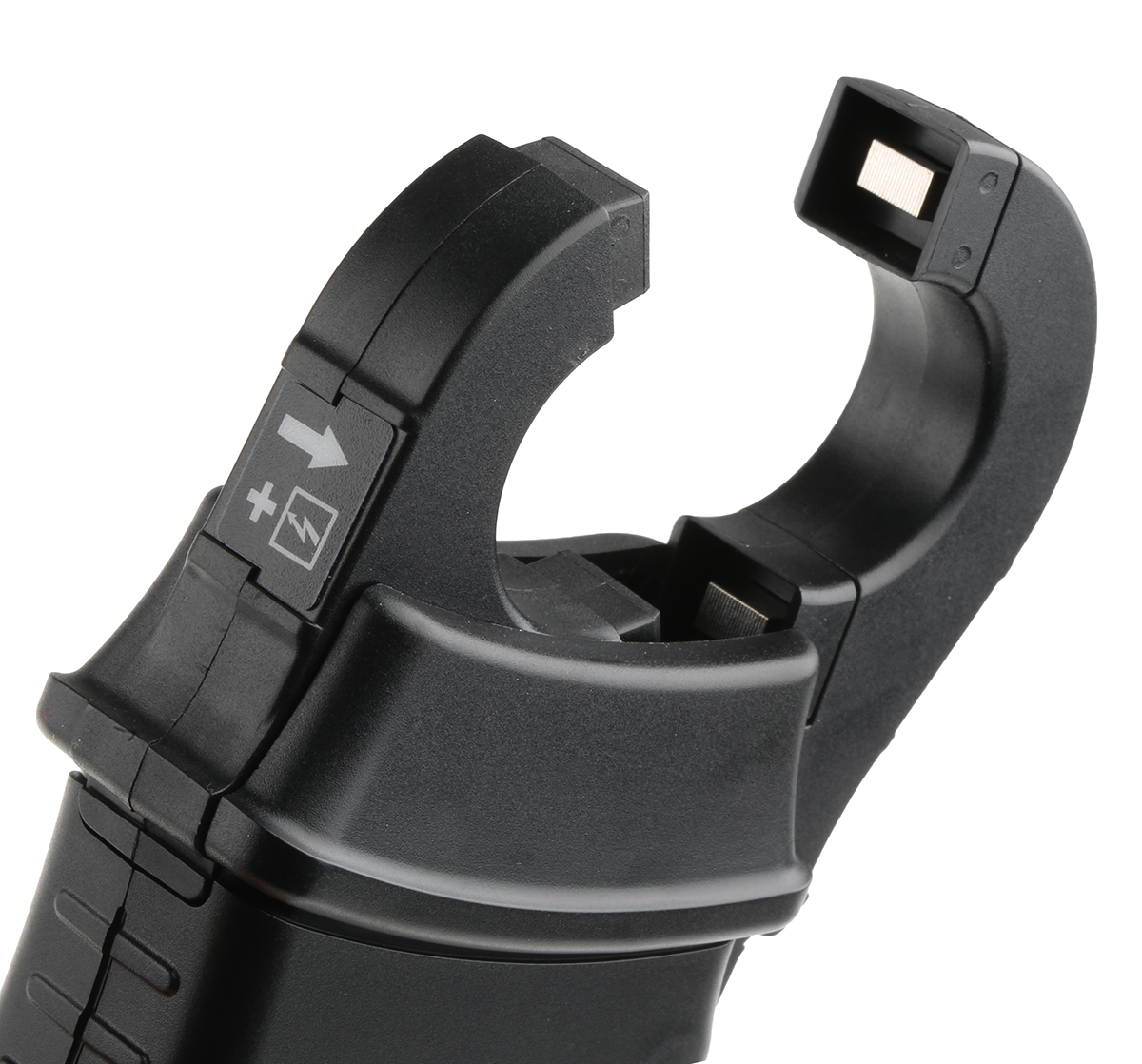

Conductor size 25mm diameter

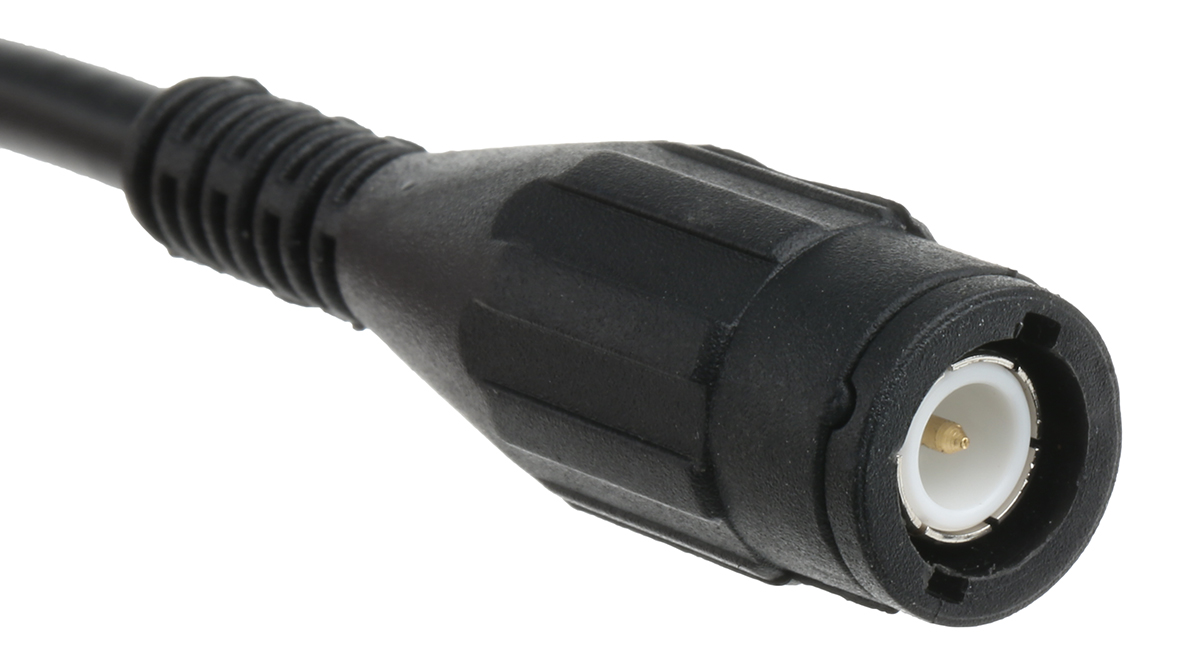

2m long coax terminated cable with BNC connector
9V alkaline battery
Auto power off to save battery life Applications Current Leakage monitoring
Battery discharge testing
Power quality analysis (when used with an active differential voltage probe) Certifications EN 61010-1:2010 certified
EN 61010-2-032:2012 certified
300 V Cat III, Pollution Degree 2
EN 61326-2-2:2006 certified
