Tektronix 500 MHz Passive Oscilloscope Probes The Tektronix passive voltage oscilloscope probe has high bandwidth and high impedance with 10Mohm input resistance. This probe features a small probe head and sharp tip that makes it easier to probe dense circuitry. Integrated oscilloscope and probe measurement systems feature intelligent communication that automatically scales and adjusts units on the oscilloscope display. Features and Benefits Bandwidth is DC to 500MHz
Attenuation ratio is 1:10
Input impedance is 10Mohm 8pF
Maximum Input voltage DC or RMS is 300VPeak CAT II
Wide compensation range (7pF to 30pF)

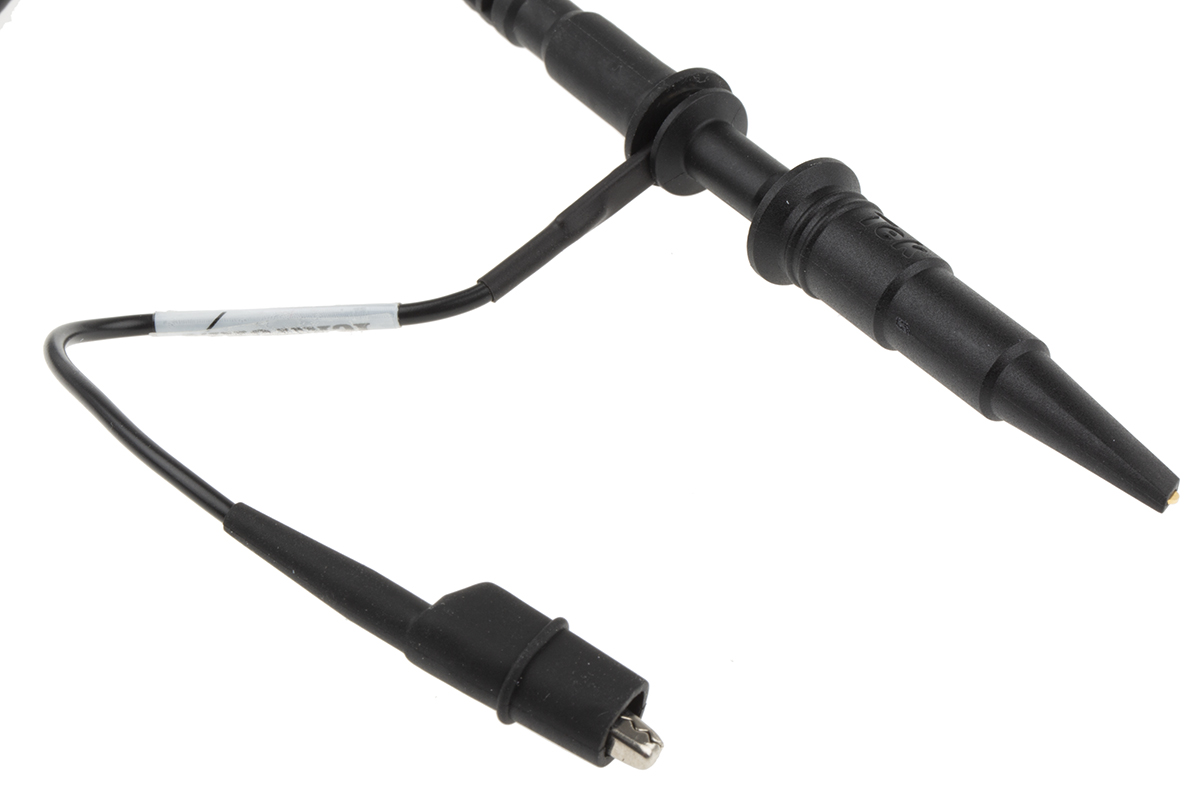

Compact probe head for probing small geometry circuit elements
Small probe body for enhanced visibility to the device under test
Replaceable probe tip cartridges

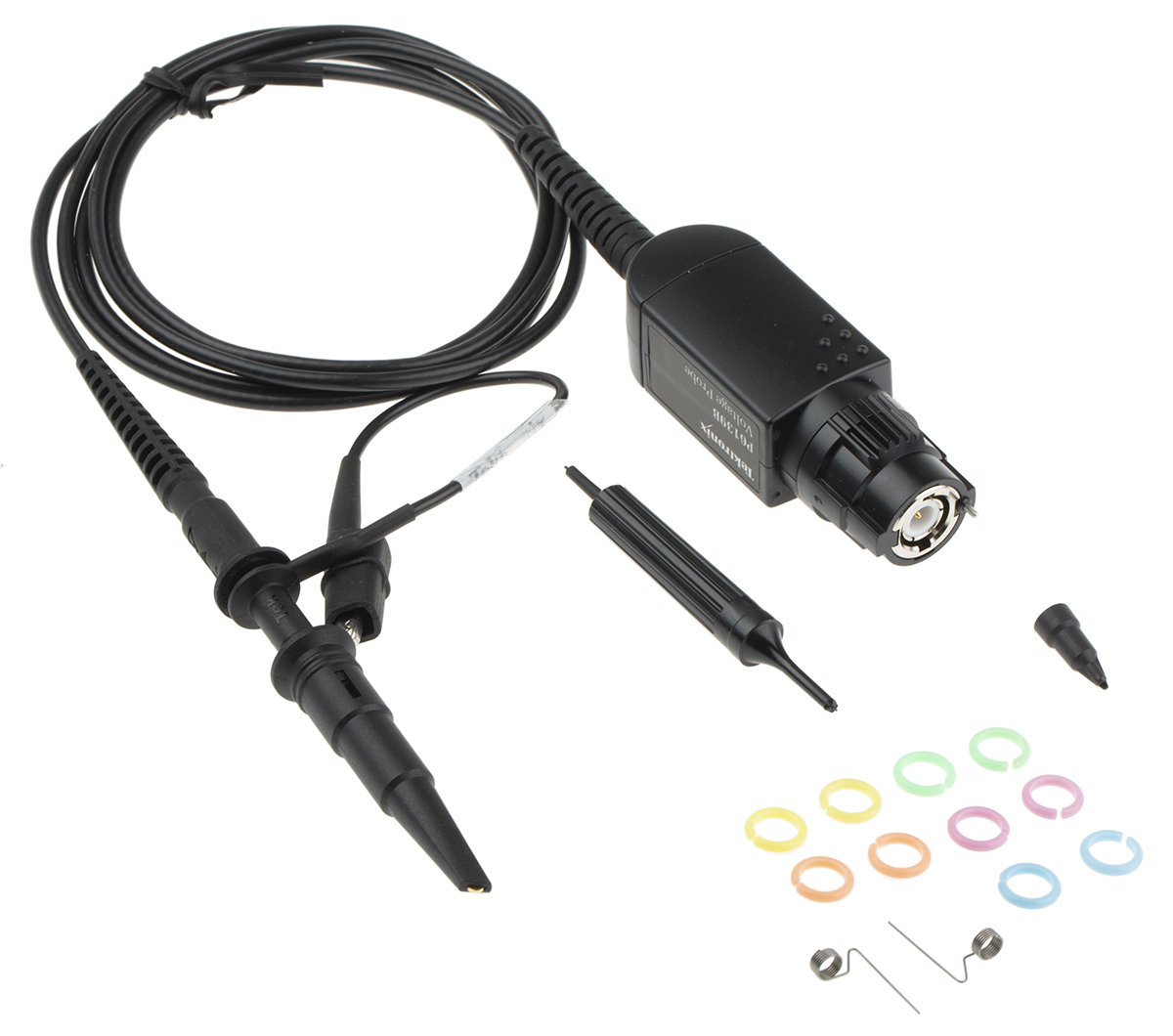

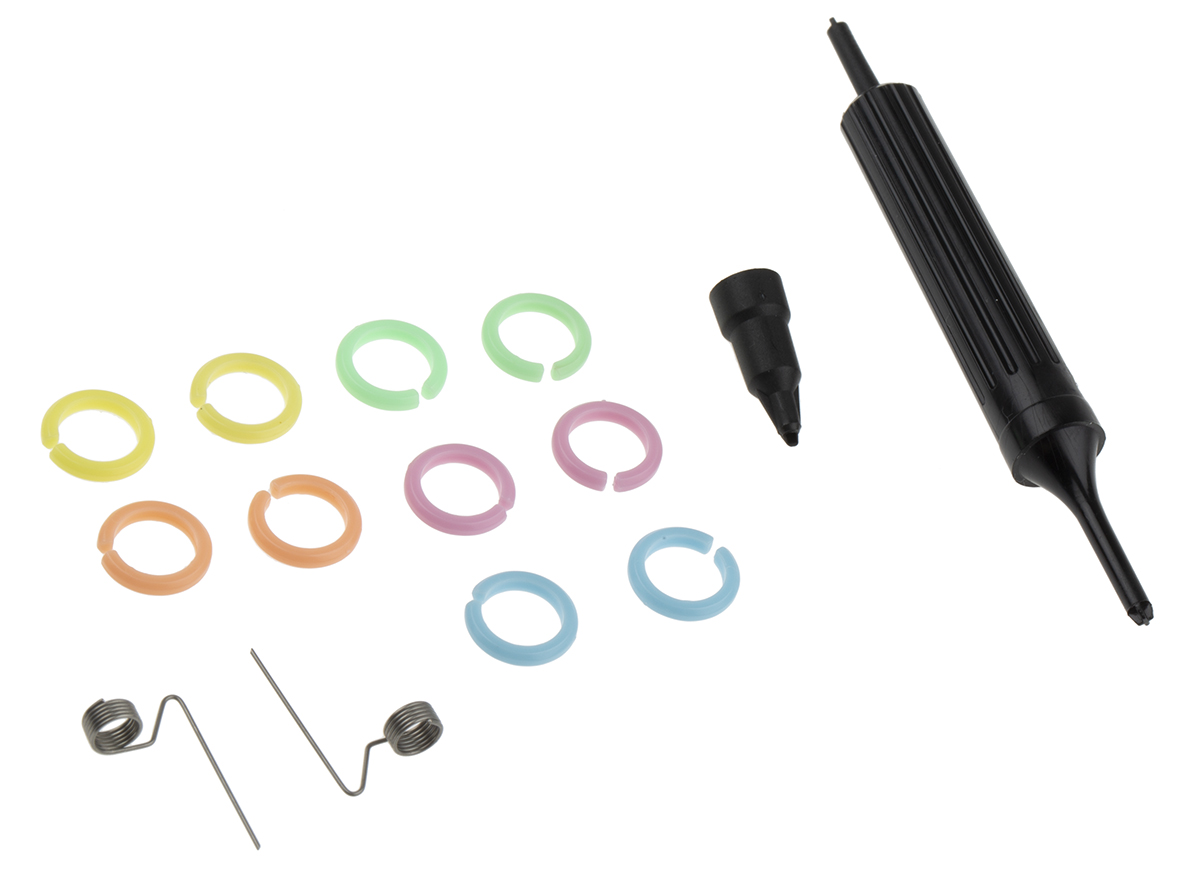

Large accessory set for versatile connectivity
TekProbe interface for direct BNC connection for oscilloscopes with 1Mohm inputs
Integrated oscilloscope and probe measurement systems feature intelligent communication that automatically scales and adjusts units on the oscilloscope display
Cable length 1.3 m Applications Low power devices
Servicing
Manufacturing engineering
Test research and development Certifications UL approved
