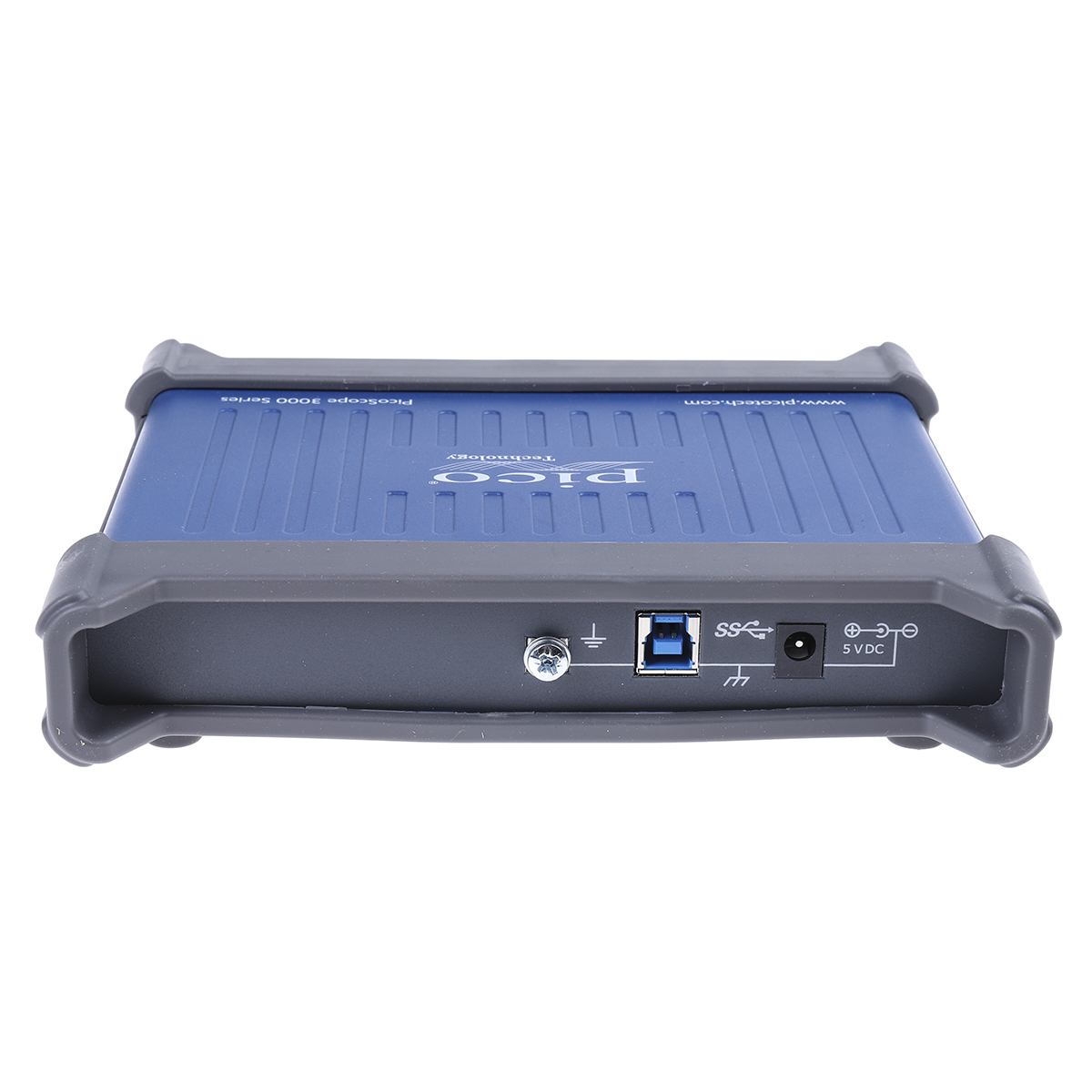

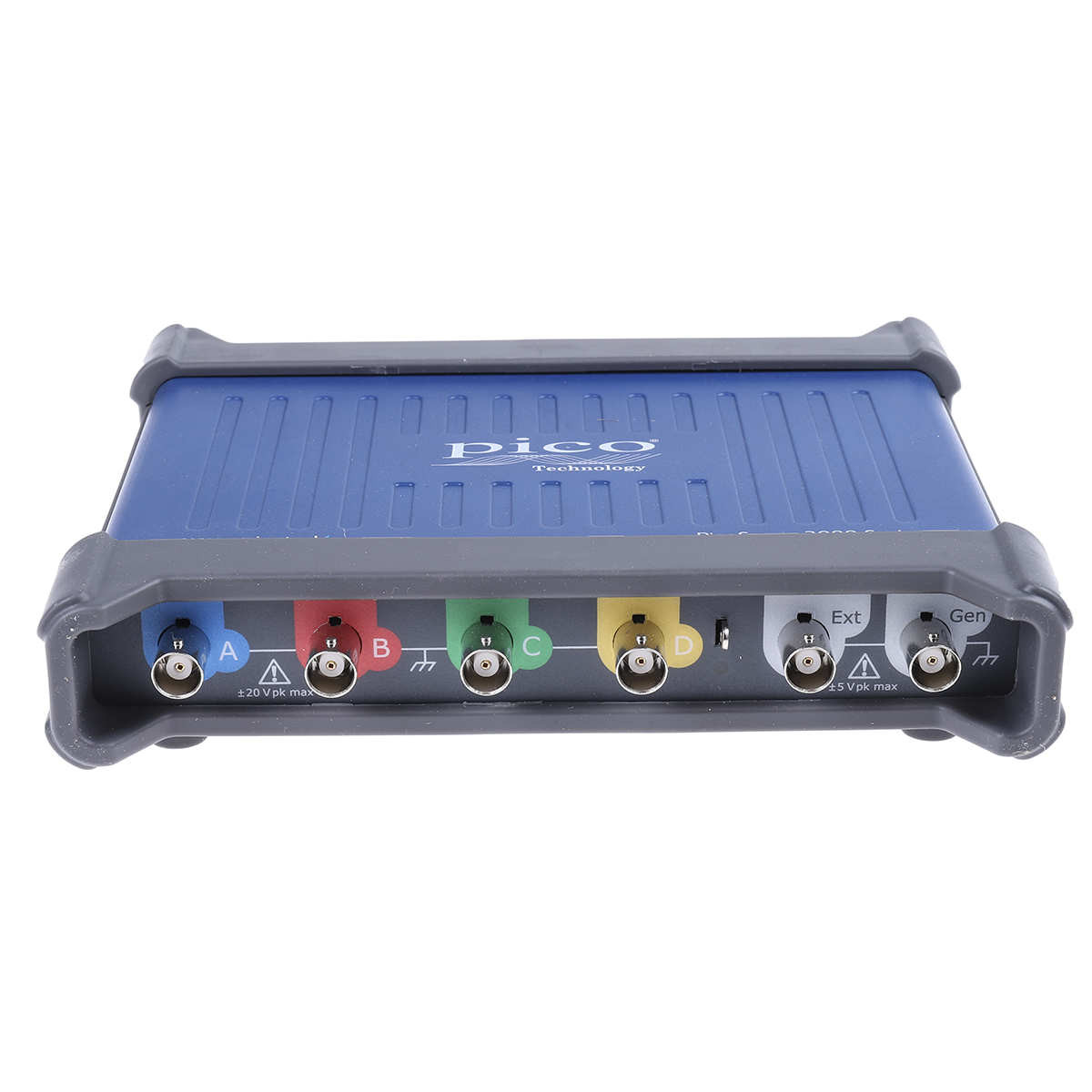

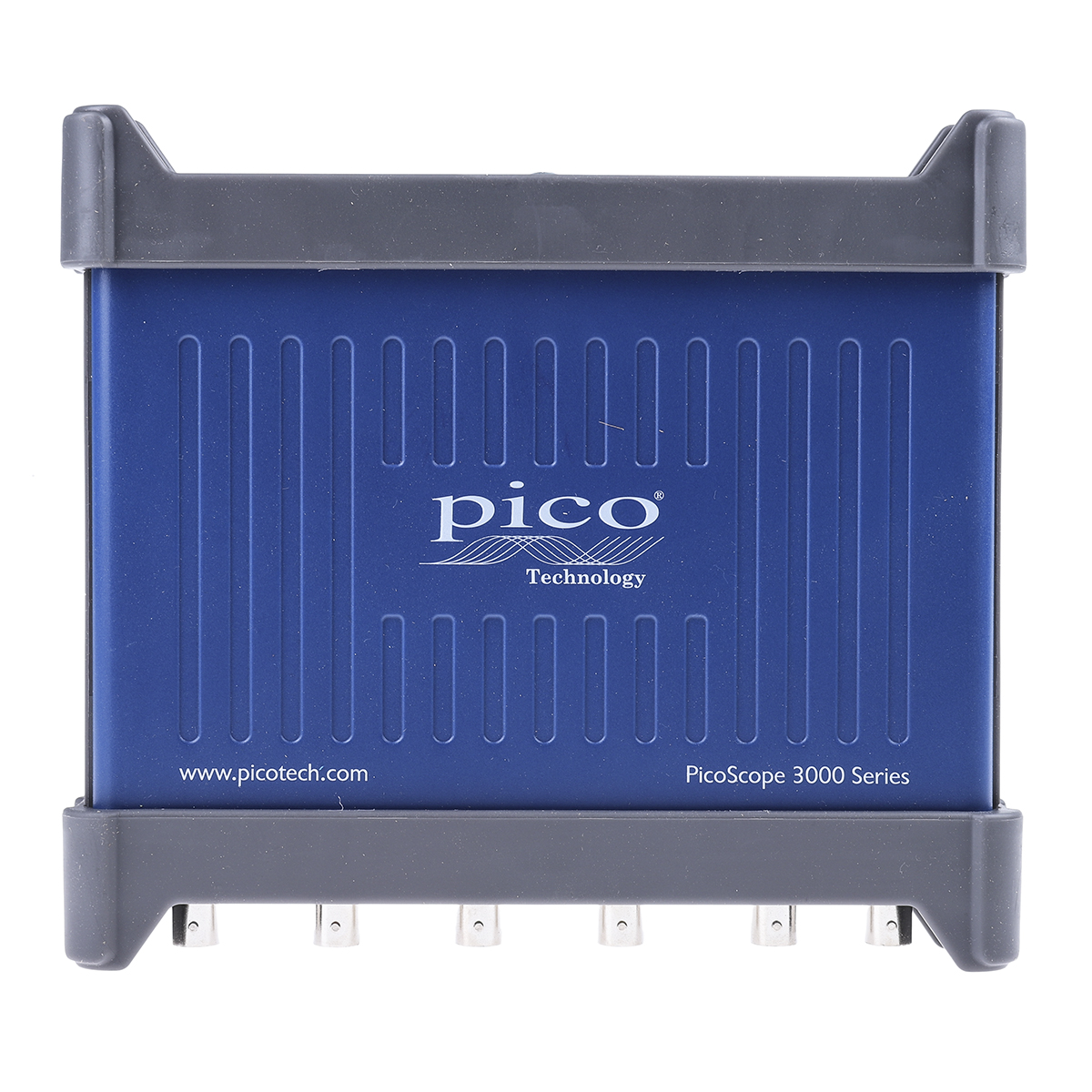

PicoScope 3403D - Pico Technology Oscilloscope The PicoScope 3403D from the PicoScope 3000 series, has a bandwidth of 50Mhz. It is a 4-channel, PC based, compact, USB-connected complete portable test system, which plugs into a laptop. It is compatible with PicoScope6 software to offer advanced cost-effective solutions.

This oscilloscope displays waveforms in a resizable window on the user's PC screen, creating an uncluttered space for multiple high-resolution analogues and digital traces. Saving, sharing and analysing waveforms is quick and simple using PC networking, storage and processing facilities. It also includes math channels, automatic measurements with statistics, spectrum analysis and colour persistence display mode and has built-in advanced digital triggering with pulse width, window, dropout, channel logic, digital pattern and other qualifiers, masks limit testing and alarms. Serial decoding supports SPI, I2C, I2S, RS-232/UART, CAN, LIN and FlexRay protocols on up to 20 analogue and digital channels, even with a mixture of protocols at the same time.

Supplied with:
Switchable x1/x10 probes (1 per analogue channel) in carrying case, Quick Start guide, software and reference CD, USB cables, power adaptor (with 4 analogue channel models only) Features and Benefits 1GS/s real-time sampling
64MS buffer memory
100,000 waveforms per second
Arbitrary waveform generator
USB 3.0 connected and powered
Serial decoding and mask testing as a standard
Hardware-accelerated update rates
Flexibility - software can provide a wide range of features and capabilities that would be difficult or expensive to implement directly in hardware.
Portability - can be used with any compatible computer, making it more versatile and convenient.
Data storage and analysis - can store and analyse waveform data using powerful software tools.
Integration with other software - can be integrated with other software applications, such as spreadsheet programs or data analysis tools. Applications The PicoScope 3403D, being a PC-based USB oscilloscope, can be used in a wide range of applications where waveform measurement and analysis are required. Here are some common use cases:
Design
Test
Education
Servicing
Monitoring
Fault finding
Repairs Certifications EN 61010-1:2010
WEEE certified
EN61326-1:2006
FCC Part 15 Subpart B
