Keysight InfiniiVision 3000 X-Series
Update rates up to 1,000,000 waveforms/sec
Memory depth 2M points (standard)
Input Z 1-MΩ or 50-Ω user-selectable, with InfiniiMax auto-probe interface
Triggering: Edge; Pulse Width; Pattern; Rise/Fall Time; Nth Edge Burst; Runt; Setup & Hold; Video; USB; Serial 1; Serial 2
High resolution display intensity gradation
Memory depth 2M points (standard)
Input Z 1-MΩ or 50-Ω user-selectable, with InfiniiMax auto-probe interface
Triggering: Edge; Pulse Width; Pattern; Rise/Fall Time; Nth Edge Burst; Runt; Setup & Hold; Video; USB; Serial 1; Serial 2
High resolution display intensity gradation

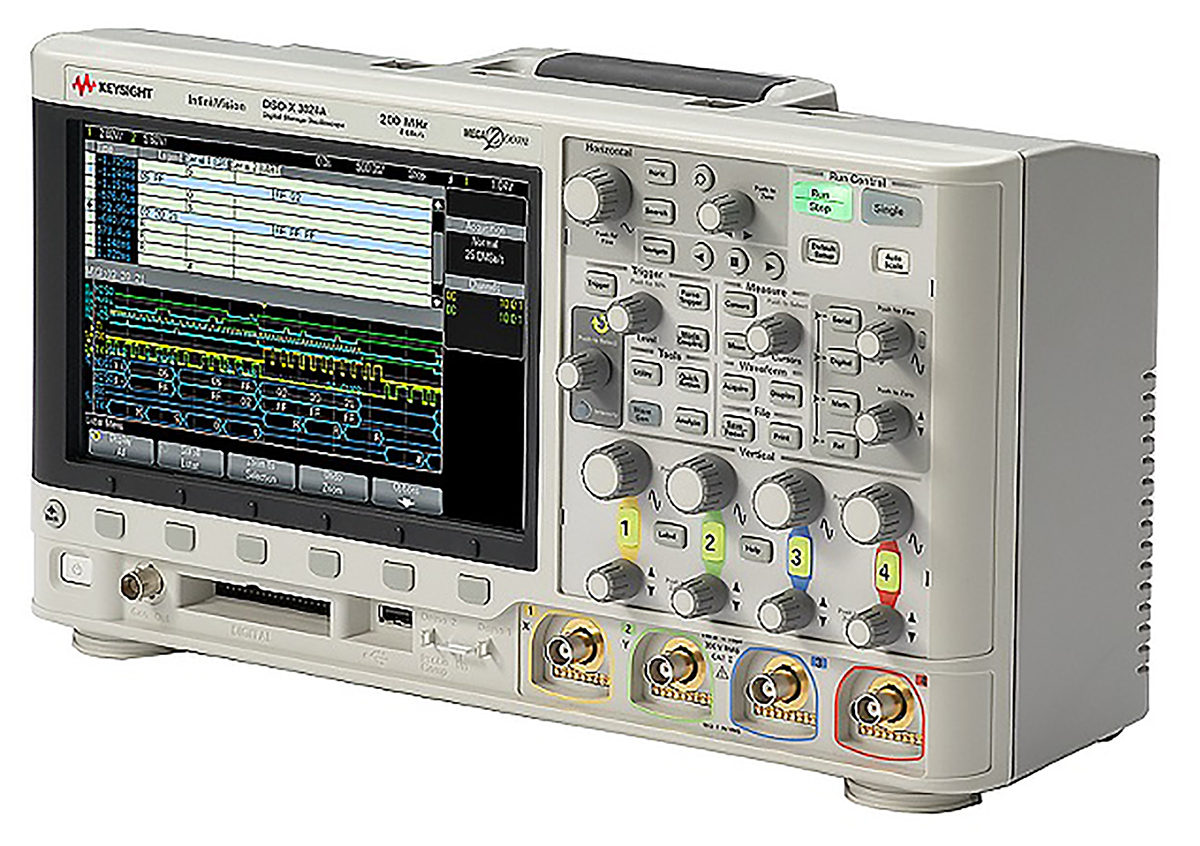

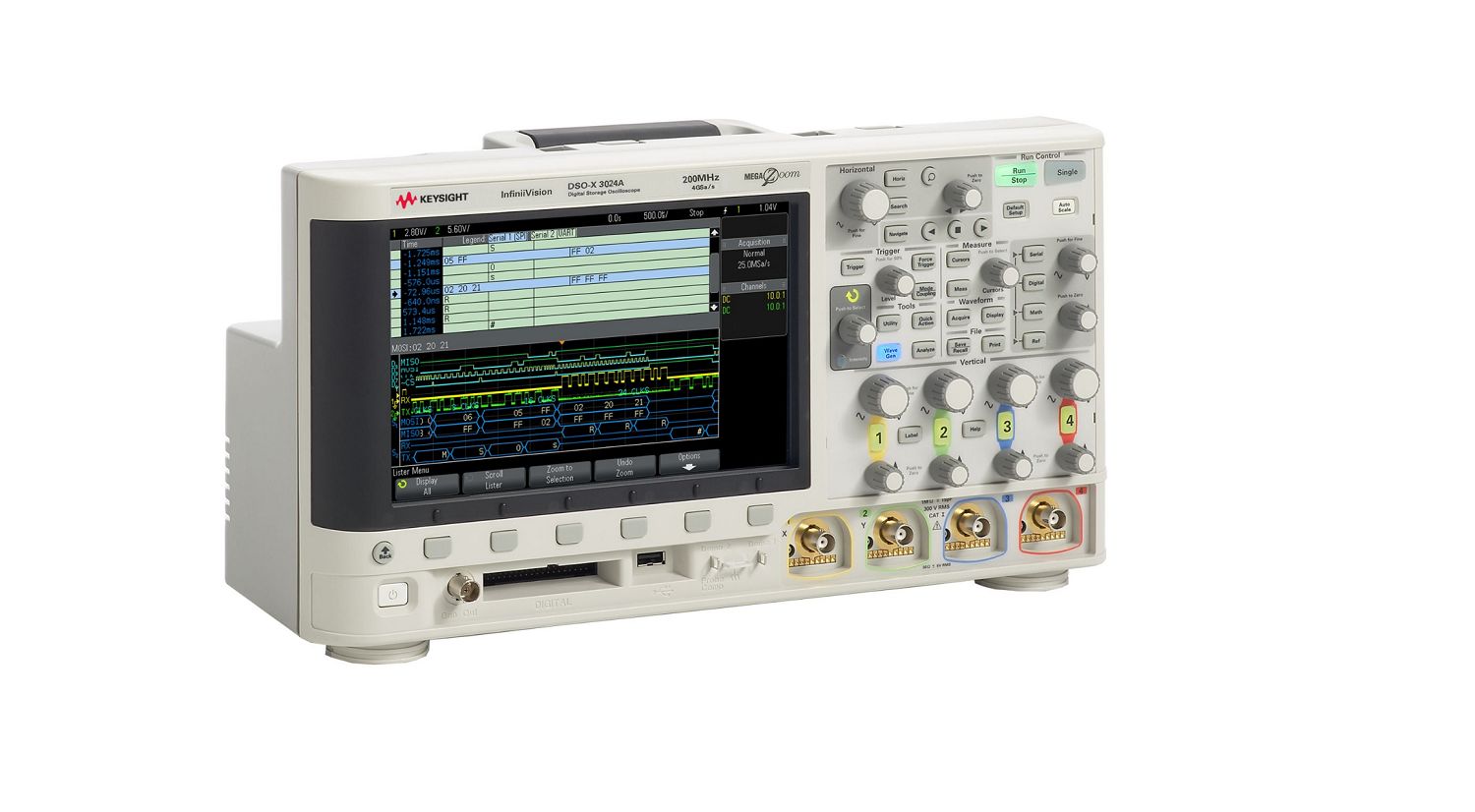

DSOX3024A InfiniiVision 3000A X Series, 200MHz Bench Oscilloscope, 4 Analogue Channels
Manufacturer:
Keysight TechnologiesManufacturer Part No:
DSOX3024A
Enrgtech Part No:
ET14010968
Warranty:
Manufacturer
£ 5787.00
Checking for live stock
Bandwidth:
200MHz
Number of Analogue Channels:
4
Oscilloscope Type:
Bench
Oscilloscope Form:
Digital Storage
Interface:
USB
Memory Depth:
4Mpts
Sample Rate Random:
4 Gsps
Screen Size:
8.5in
Series:
InfiniiVision 3000A X
Record Length:
2M points/ch
Vertical Resolution:
8 bit
Maximum Time Base:
50s/div
