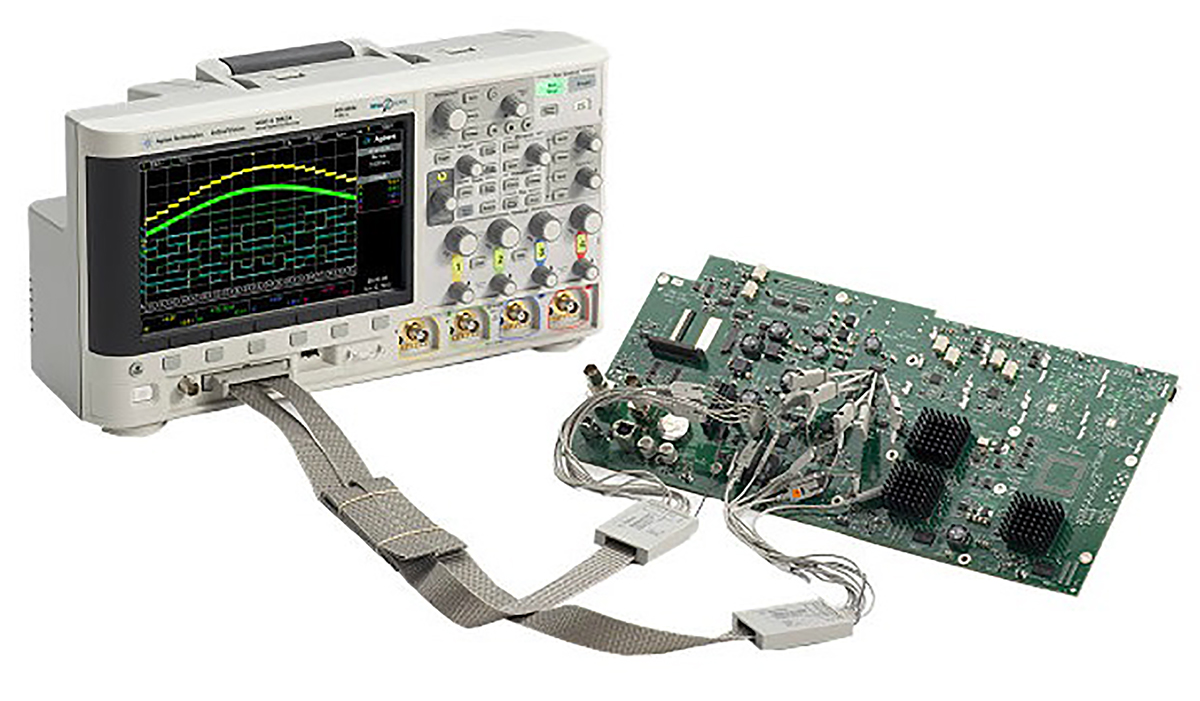

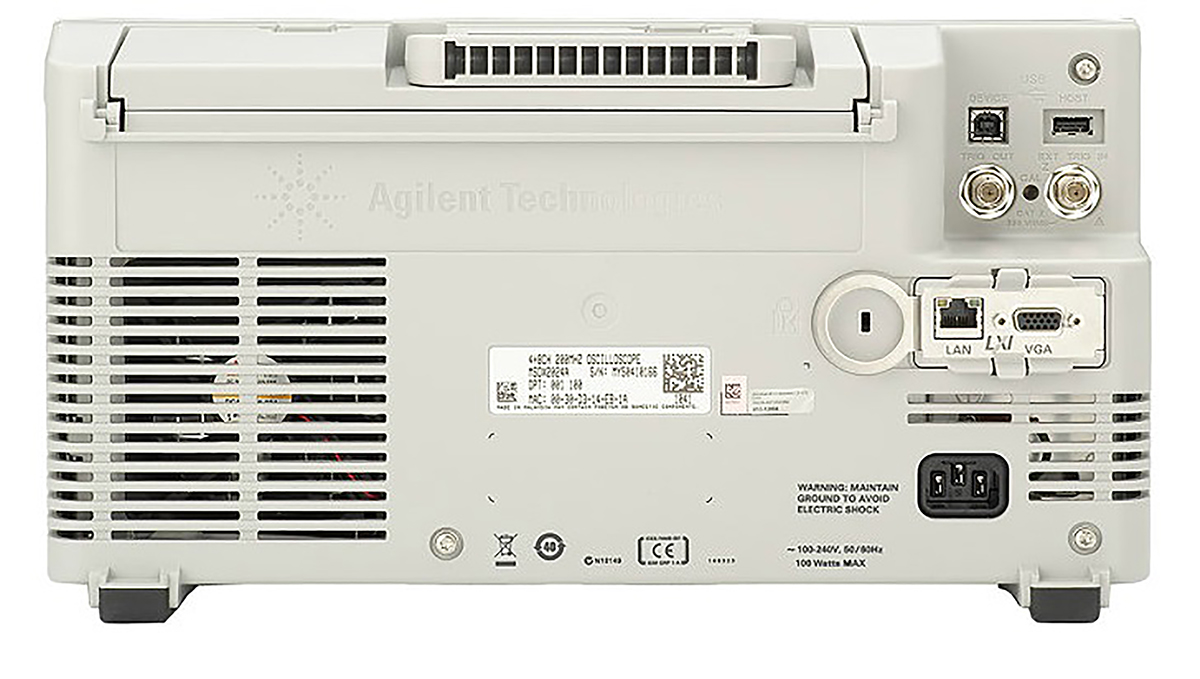

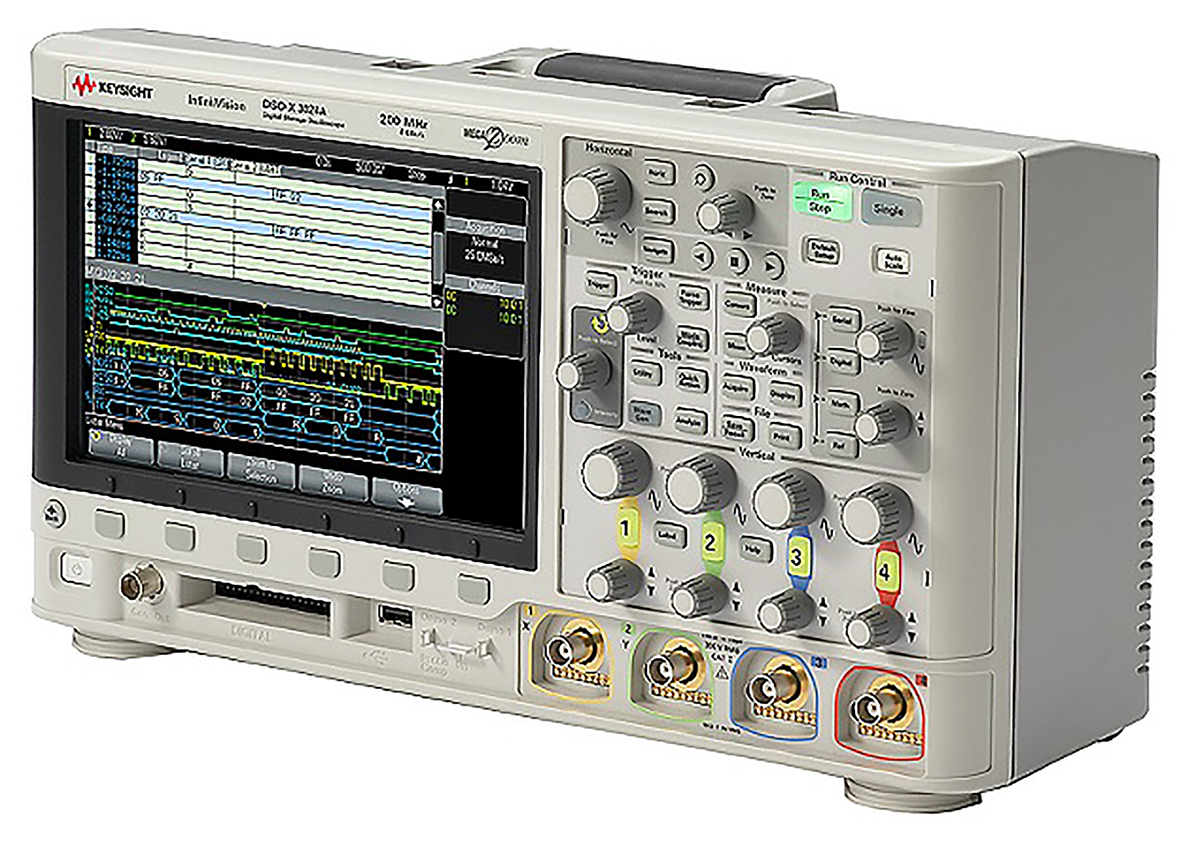

DSOX3054A InfiniiVision 3000A X Series, 500MHz Bench Oscilloscope, 4 Analogue Channels

Bandwidth:

500MHz

Number of Analogue Channels:

4

Oscilloscope Type:

Bench

Interface:

USB

Oscilloscope Form:

Digital Storage

Sample Rate Random:

4 Gsps

Screen Size:

8.5in

Series:

InfiniiVision 3000A X

Record Length:

2M points/ch

Minimum Time Base:

1ns/div

Safety Category:

CAT I 300 V, CAT II 300V

Maximum Time Base:

50s/div

Vertical Resolution:

8 bit

Weight:

3.9kg

Minimum Vertical Sensitivity:

1mV/div

Power Source:

Mains

Digital/Analogue:

Digital

Rise Time:

700ps

Display Type:

WVGA

Dimensions:

380.6 x 141.5 x 204.4mm

Maximum Vertical Sensitivity:

5V/div
