The Phoenix Contact PCB Header features a COMBICON MSTB 2.5 plug-in system with a standard pin connector pattern alignment. It does not include a locking mechanism or additional mounting method and is packaged in cardboard. The mounting type is wave soldering, with a linear pinning layout. The contact material is copper alloy, and the surface is tin-plated for enhanced durability. The insulating material is PA (Polyamide), ensuring electrical insulation. Maximum flexibility when it comes to device design which is one header for connectors with different connection technologies
Well known mounting principle allows worldwide use
Vertical connection enables multi row arrangement on the PCB
Items that can be aligned in various pitches support flexible and space saving PCB assembly
Easy PCB replacement thanks to plug in modules

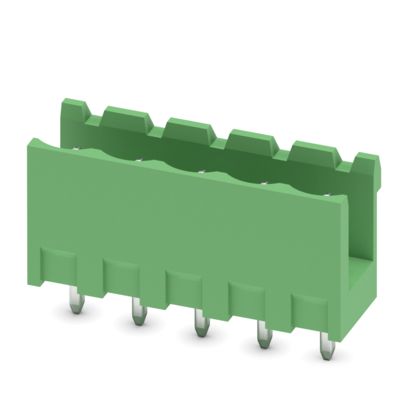

Phoenix Contact Straight Solder Mount PCB Header, 5 Contact(s), 5.08mm Pitch, 1 Row(s), Shrouded

Manufacturer:
Manufacturer Part No:
1758047
Enrgtech Part No:
ET11790296
Warranty:
Manufacturer
Checking for live stock
Pitch:
5.08mm
Number of Contacts:
5
Number of Rows:
1
Body Orientation:
Straight
Shrouded/Unshrouded:
Shrouded
Mounting Type:
Solder Mount
pdf icon
Datasheet - 1758047-68a0c8c5(datasheets)
