PCB Mounting Low Profile 115 / 230Vac Primary
Twin 115Va.c. 50 to 60Hz primary windings for series or parallel connection
Twin secondary windings for series or parallel connection
Low profile compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure board mounting
Standard: EN60742, VDE 0551, IEC 61558
Twin secondary windings for series or parallel connection
Low profile compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure board mounting
Standard: EN60742, VDE 0551, IEC 61558

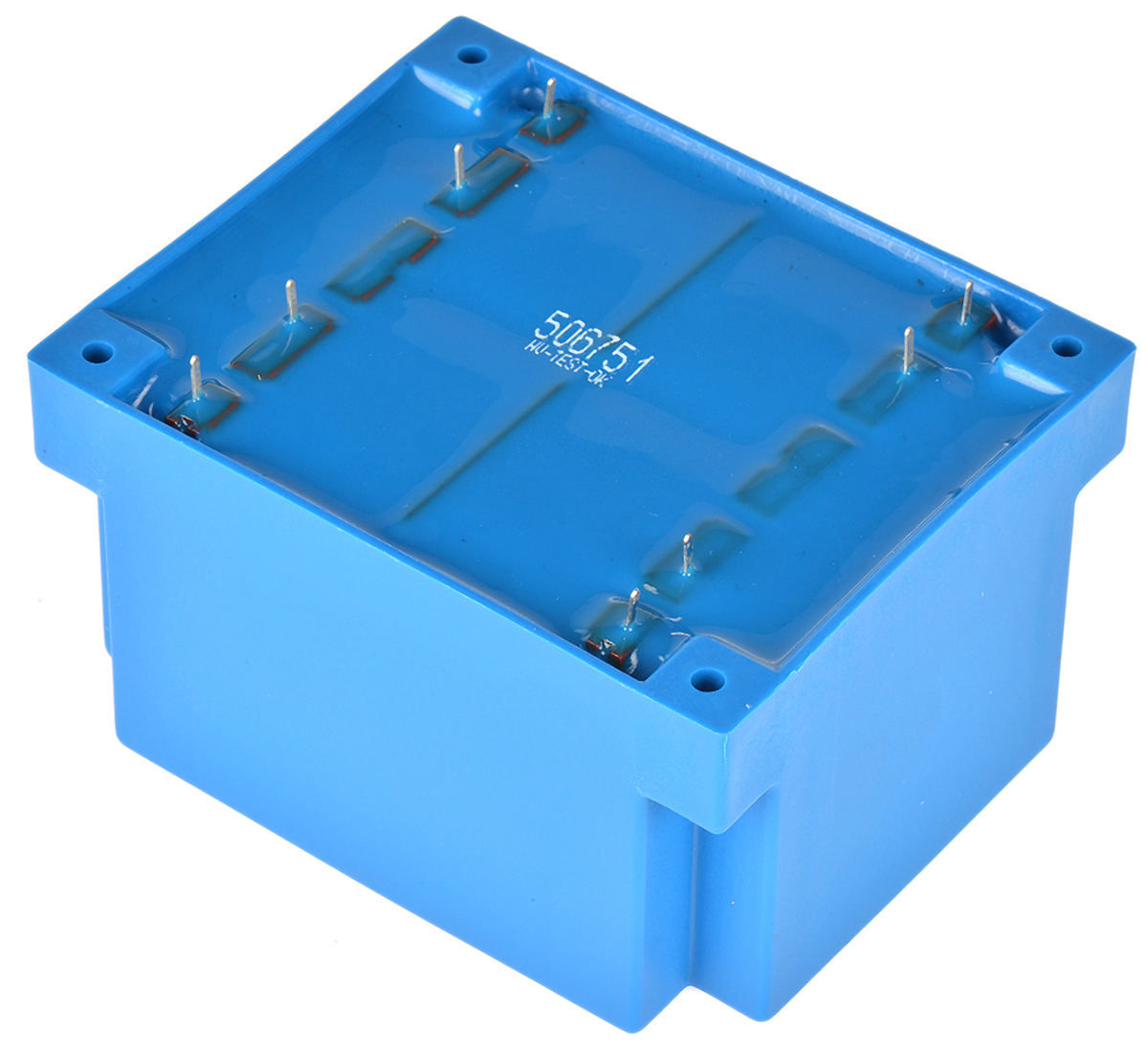

12V ac 2 Output Through Hole PCB Transformer, 52VA
Manufacturer:
Block
Manufacturer Part No:
FL 52/12
Enrgtech Part No:
ET13840004
Warranty:
Manufacturer
£ 37.51
Checking for live stock
Secondary Voltage Rating:
12V ac
Power Rating:
52VA
Primary Voltage Rating:
115V ac, 230V ac
Number of Outputs:
2
Length:
86.5mm
Width:
49mm
Depth:
70mm
Dimensions:
86.5 x 49 x 70mm
Weight:
980g
Mounting Type:
Through Hole
Maximum Temperature:
+40°C
Minimum Operating Frequency:
50Hz
