PCB Mounting Low Profile 115 / 230Vac Primary
Twin 115Va.c. 50 to 60Hz primary windings for series or parallel connection
Twin secondary windings for series or parallel connection
Low profile compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure board mounting
Standard: EN60742, VDE 0551, IEC 61558
Twin secondary windings for series or parallel connection
Low profile compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure board mounting
Standard: EN60742, VDE 0551, IEC 61558

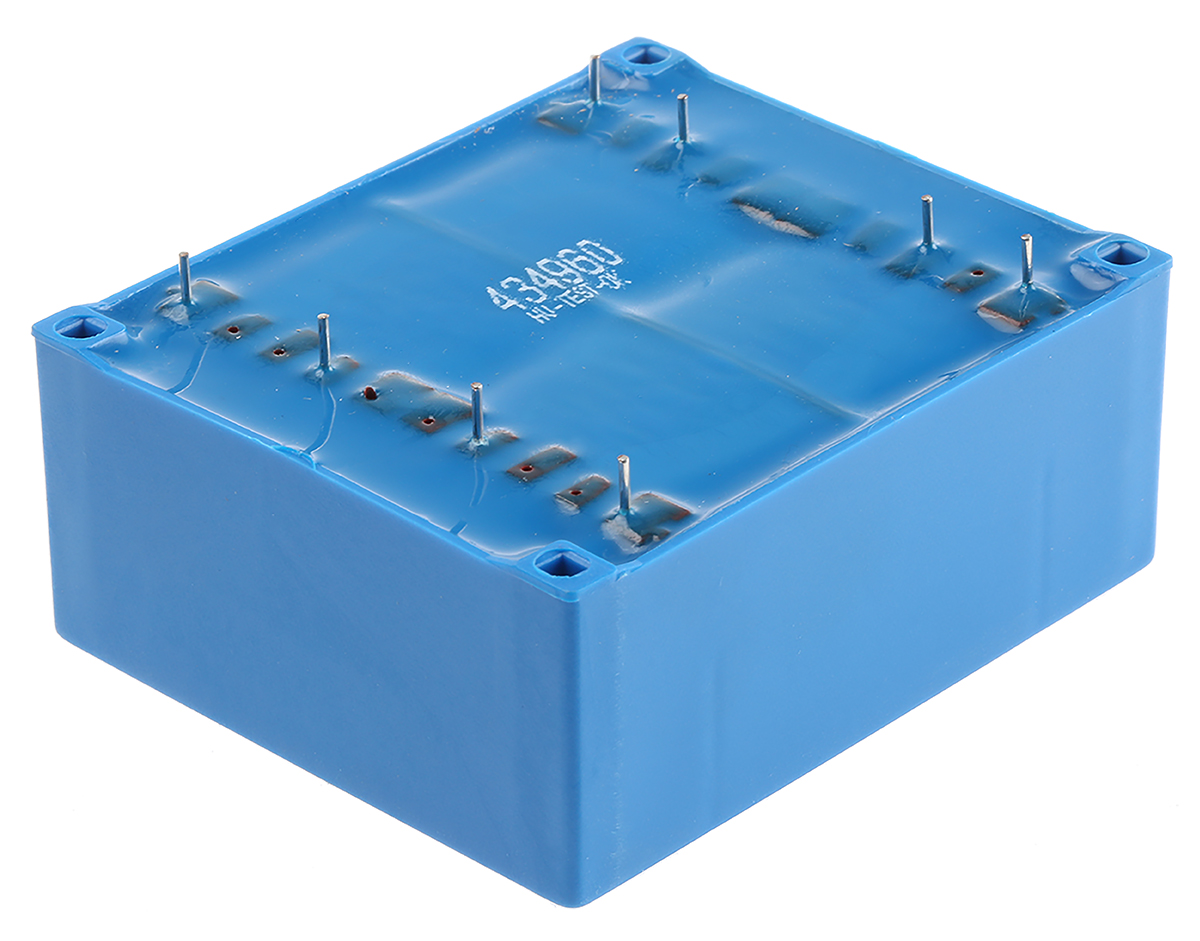

15V ac 2 Output Through Hole PCB Transformer, 18VA
Manufacturer:
Block
Manufacturer Part No:
FL 18/15
Enrgtech Part No:
ET14112317
Warranty:
Manufacturer
£ 20.56
Checking for live stock
Secondary Voltage Rating:
15V ac
Power Rating:
18VA
Primary Voltage Rating:
115V ac, 230V ac
Number of Outputs:
2
Length:
68mm
Width:
27.6mm
Depth:
57mm
Dimensions:
68 x 27.6 x 57mm
Weight:
375g
Mounting Type:
Through Hole
Maximum Temperature:
+40°C
Minimum Operating Frequency:
50Hz
