PCB Mounting Low Profile 115 / 230Vac Primary
Twin 115Va.c. 50 to 60Hz primary windings for series or parallel connection
Twin secondary windings for series or parallel connection
Low profile compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure board mounting
Standard: EN60742, VDE 0551, IEC 61558
Twin secondary windings for series or parallel connection
Low profile compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure board mounting
Standard: EN60742, VDE 0551, IEC 61558

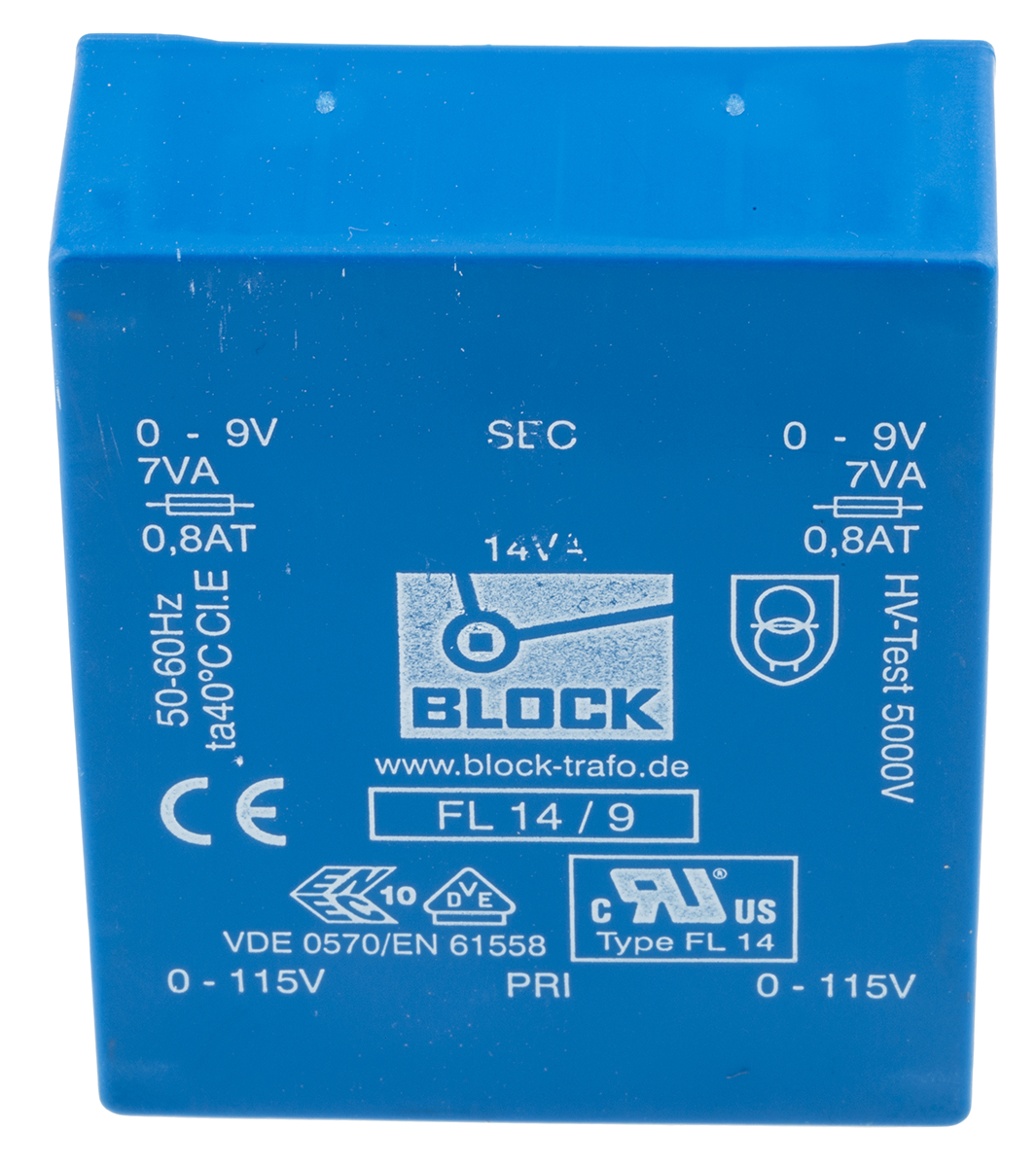

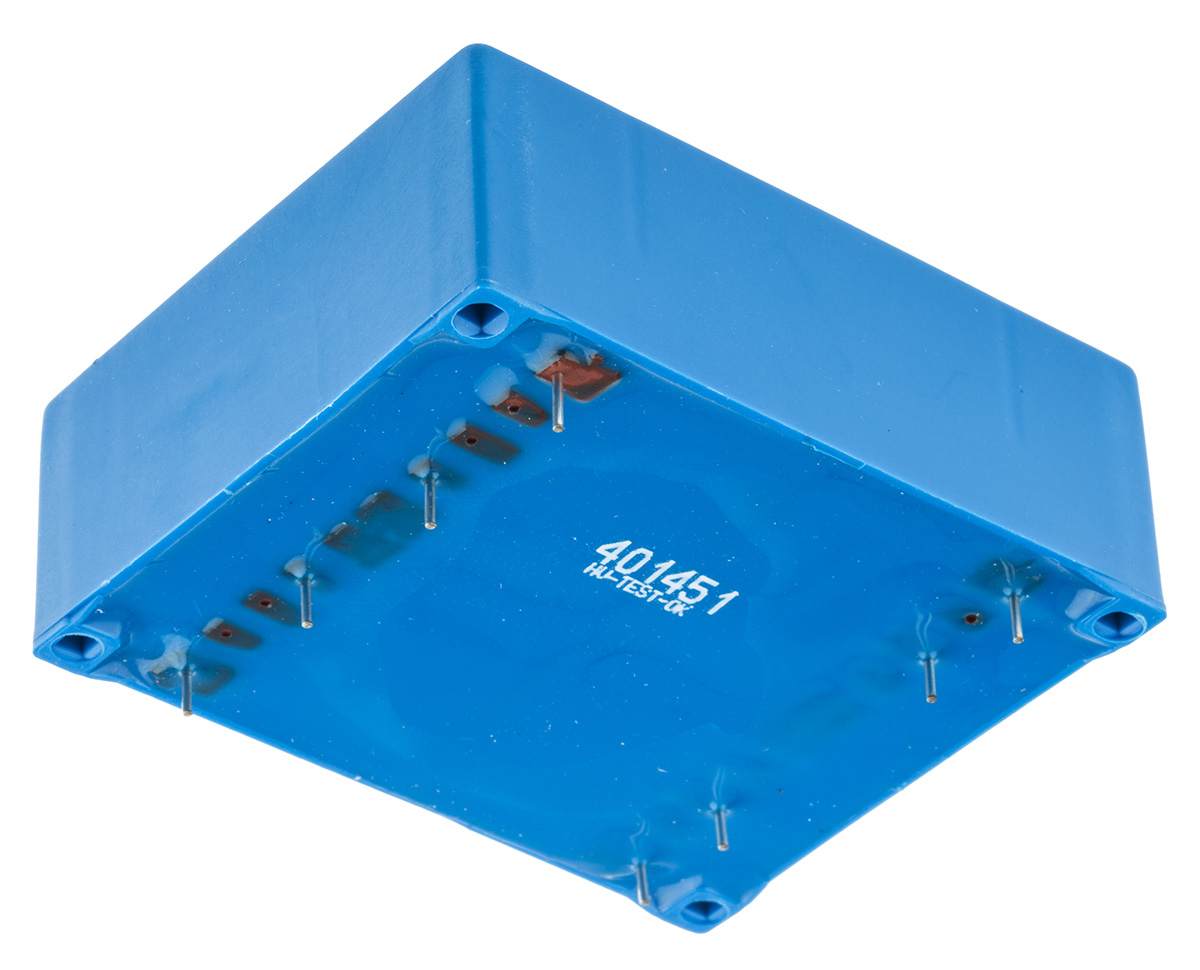

9V ac 2 Output Through Hole PCB Transformer, 14VA
Manufacturer:
Block
Manufacturer Part No:
FL 14/9
Enrgtech Part No:
ET16767205
Warranty:
Manufacturer
£ 25.92
Checking for live stock
Secondary Voltage Rating:
9V ac
Power Rating:
14VA
Primary Voltage Rating:
115V ac, 230V ac
Number of Outputs:
2
Length:
68mm
Width:
24.4mm
Depth:
57mm
Dimensions:
68 x 24.4 x 57mm
Weight:
315g
Mounting Type:
Through Hole
Maximum Temperature:
+40°C
Minimum Operating Frequency:
50Hz
