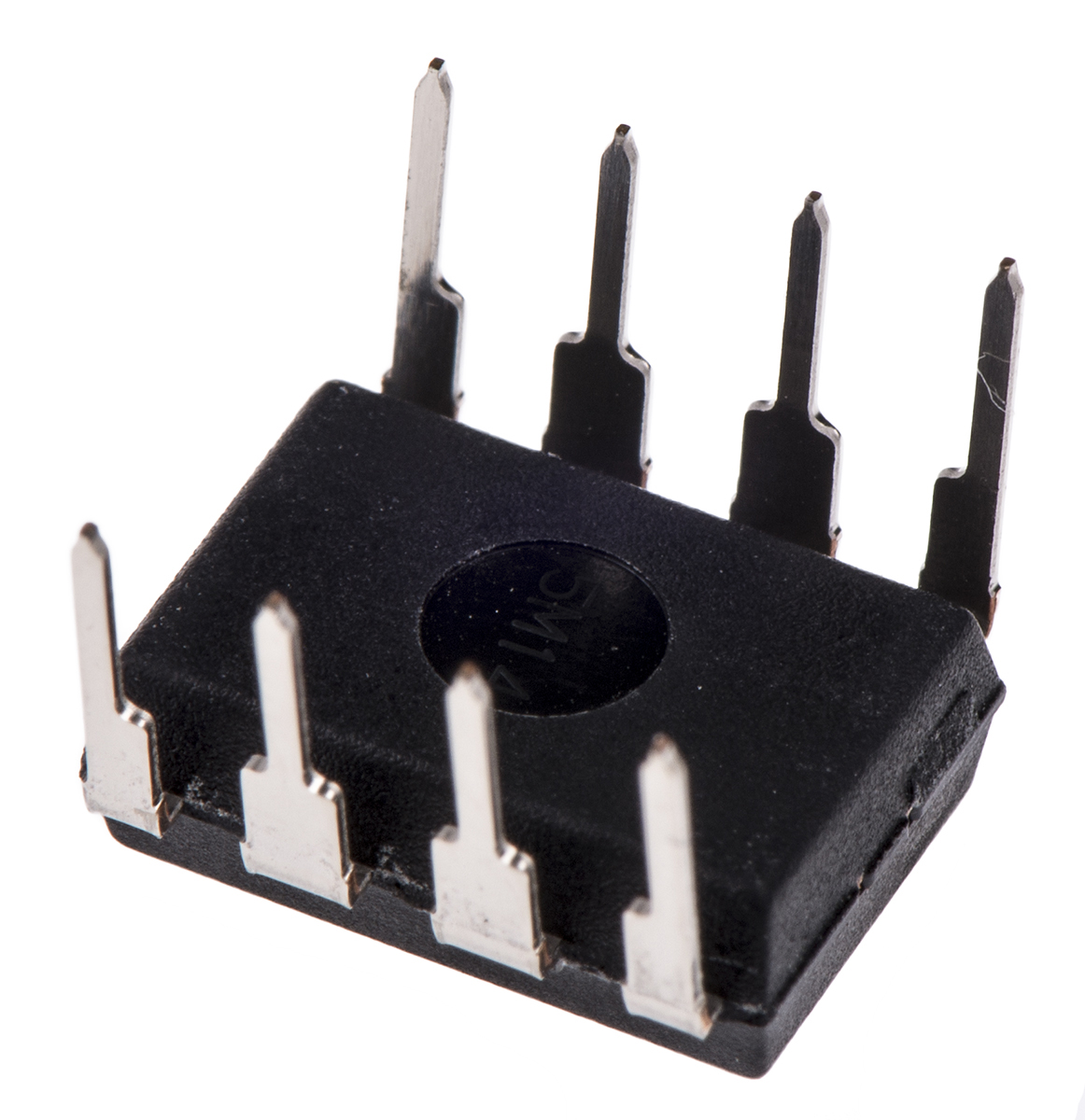

Dual Peripheral Driver 8-Pin PDIP, SN75451BP

Number of Drivers:

2

Maximum Turn-On Delay Time:

8ns

Maximum Turn-Off Delay Time:

12ns

Maximum Supply Current:

65 mA

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

8

Maximum Power Dissipation:

1 W

Maximum Input Voltage:

5.5 V

Dimensions:

9.81 x 6.35 x 4.57mm

Length:

9.81mm

Width:

6.35mm

Height:

4.57mm

Maximum Operating Temperature:

+70 °C

Minimum Operating Temperature:

0 °C
