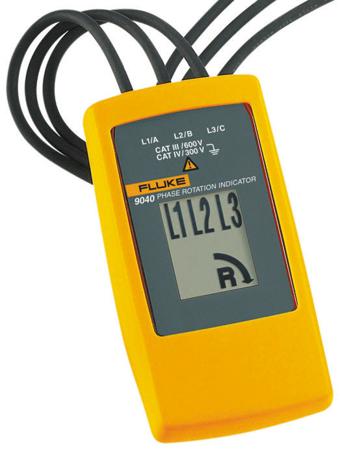

Fluke 9040
The Fluke phase rotation indicator has a voltage range of 40V to 700V and frequency range of 15Hz to 400Hz. It shows a clear indication of three-phase systems and the phase rotation direction to determine correct connections. This allows rapid determination of phase sequence and frequency range, suitable for commercial and industrial applications. It includes test probes with a variable clamping range for safe contact, also in sockets.
Supplied with
3 fused test probes, 1000 V CAT III
3 alligator clips, 1000 V CAT III/600 V CAT IV
Users Manual

9040 Phase Rotation Tester, CAT III 600 V, CAT IV 300 V, 400Hz Max, 700V Max with RS Calibration
Manufacturer:
Fluke
Manufacturer Part No:
FLUKE 9040/UK
Enrgtech Part No:
ET14136731
Warranty:
Manufacturer
£ 247.00
Checking for live stock
Connection Type:
Test Probe
Overvoltage Category:
CAT III 600V, CAT IV 300V
Display Type:
LCD
Safety Category:
CAT III 600 V, CAT IV 300 V
Calibrated:
RSCAL
Current Consumption:
1mA
Dimensions:
61 x 27 x 124mm
Weight:
200g
Height:
124mm
Length:
61mm
Maximum Frequency:
400Hz
Maximum Operating Temperature:
+40°C
