Overview Maximum performance for handling demanding detection tasks involving tiny objects. With its precise laser light spot, the W4SL-3 miniature product family sets new standards by providing high optical light immunity from undesired background reflections and immunity to ambient light - even from modern energy-saving lamps. The combination of SICK's proprietary laser and ASIC technologies reduces incorrect switching to minimize machine downtime, reducing the variety of devices and saving on storage costs. The photoelectric sensors also provide an IO-Link interface for initial system performance diagnostics. Furthermore, IO-Link permits the integration of additional functions such as meters directly into the sensor. There is no need for complex control programming. At a glance Precise laser light spot, laser class 1 Teach-in pushbutton can be switched between detection of transparent and non-transparent objects Sensing ranges between 25 mm and 60 m Latest SICK proprietary ASIC and laser technologies with second emitter LED to provide outstanding background suppression and ambient light immunity Choice of adjustment via teach-in button, potentiometer, cable, or IO-Link Your Benefit Precise laser light spot for highly accurate switching behavior High optical ambient light immunity reduces incorrect switching and thus machine downtime, even when modern energy-saving lamps are used The highest degree of machine design flexibility BGS (background suppression) eliminates the effect of undesired background reflections. In addition, autocollimation allows detection through small drilled holes One device for detecting both transparent objects and the smallest non-transparent objects, thus reducing the variety of sensors and saving on storage costs IO-Link facilitates initial system performance diagnostics and uses additional sensor functions (optional) to reduce complex contr...

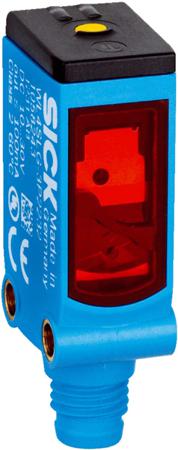

Sick W4SL-3 Photoelectric Sensor Retro Reflective 12000 mm Detection Range PNP

Manufacturer:
Manufacturer Part No:
WL4SL-3P2232
Enrgtech Part No:
ET20303153
Warranty:
Manufacturer
£ 282.62
Checking for live stock
Maximum DC Voltage:
30V
IP Rating:
IP66, IP67
Series:
W4SL-3
Electrical Connection:
M8 Connector
Detection Type:
Retroreflective
Output Type:
PNP
Housing Material:
Plastic
Detection Range:
12 m
Minimum Operating Temperature:
-10°C
Sensor Style:
Block
Response Time:
500 μs
Maximum Operating Temperature:
+50°C
Terminal Type:
4 Pin Connector
pdf icon
Datasheet - WL4SL-3P2232(Technical Reference)
