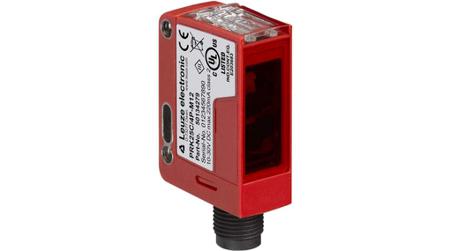

The polarized retro-reflective photoelectric sensor operates on the reflection principle and has an operating range of 0 to 10 meters with a reflector TK(S) 100x100. It features an LED light source with a wavelength of 640 nm and a pulsed transmitted-signal shape. The sensor is protected against polarity reversal and short circuits. With a supply voltage of 10 to 30 V DC, it offers two digital switching outputs and a switching frequency of 1,500 Hz. This is housed in a compact cubic design and has a wide operating temperature range of -40 to 60 °C. It is IP 69K and IP 67 rated, making it suitable for use in harsh environments. Operating range of 0 to 10 meters with reflector TK(S) 100x100
LED light source with a wavelength of 640 nm
Pulsed transmitted-signal shape
Protected against polarity reversal and short circuits
Wide supply voltage range of 10 to 30 V DC
Two digital switching outputs with a maximum switching current of 100 mA
Compact and robust cubic design
Wide operating temperature range of -40 to 60 °C
High degree of protection with IP 69K and IP 67 ratings
