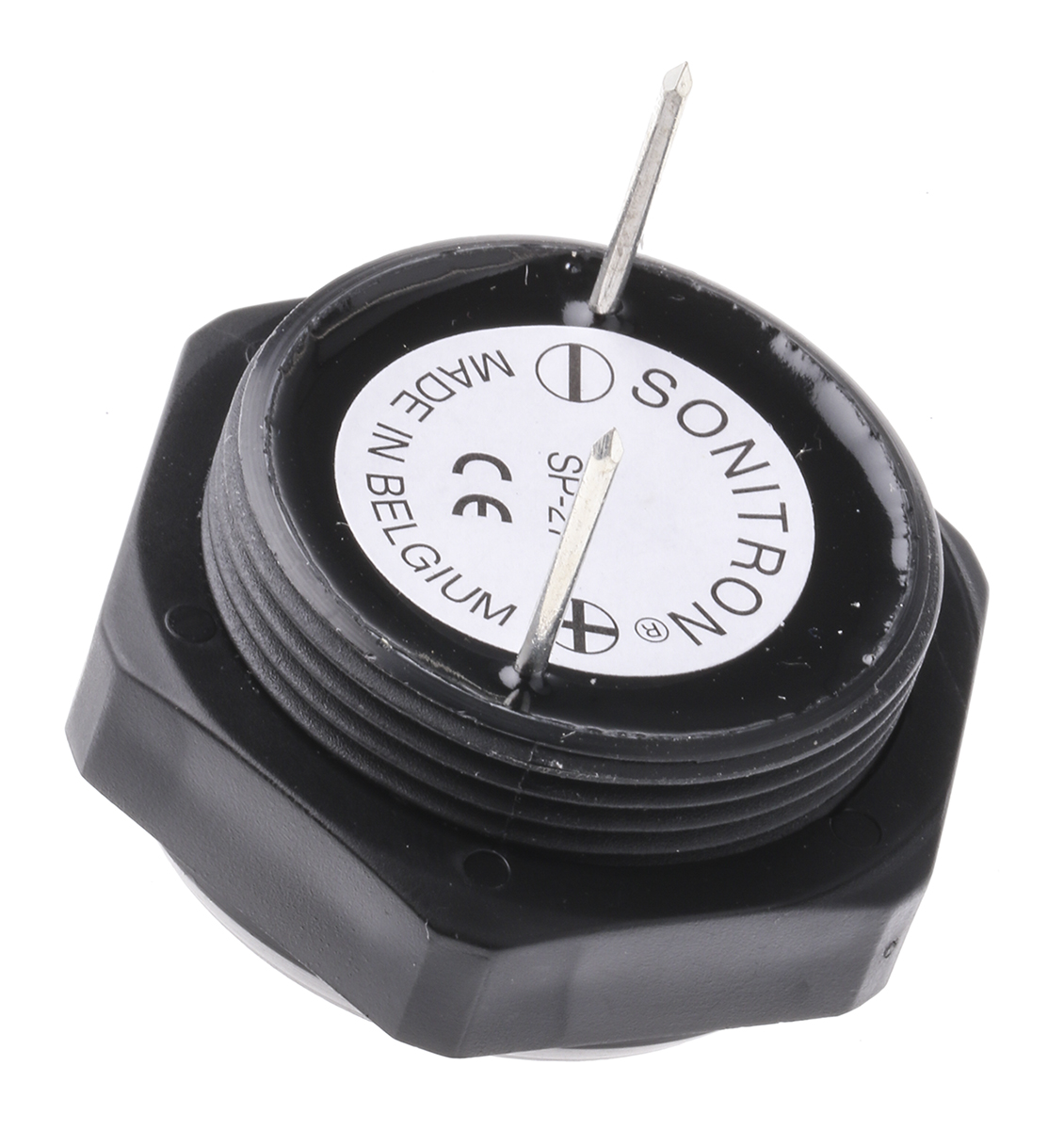

94dB Panel Mount Continuous Internal Buzzer, 35.5 x 8mm, 4V dc Min, 16V dc Max

Mounting Type:

Panel Mount

Minimum Supply Voltage:

4V dc

Maximum Supply Voltage:

16V dc

Sound Level:

94dB

Drive Type:

Internal

Tone Type:

Continuous

Diameter:

36.5mm

Depth:

19mm

Height:

19mm

Dimensions:

35.5 x 8mm

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+75°C

Maximum Frequency:

4.025kHz

Minimum Frequency:

2975Hz

Supply Current:

12mA

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=23714&DisplayLogo=False
