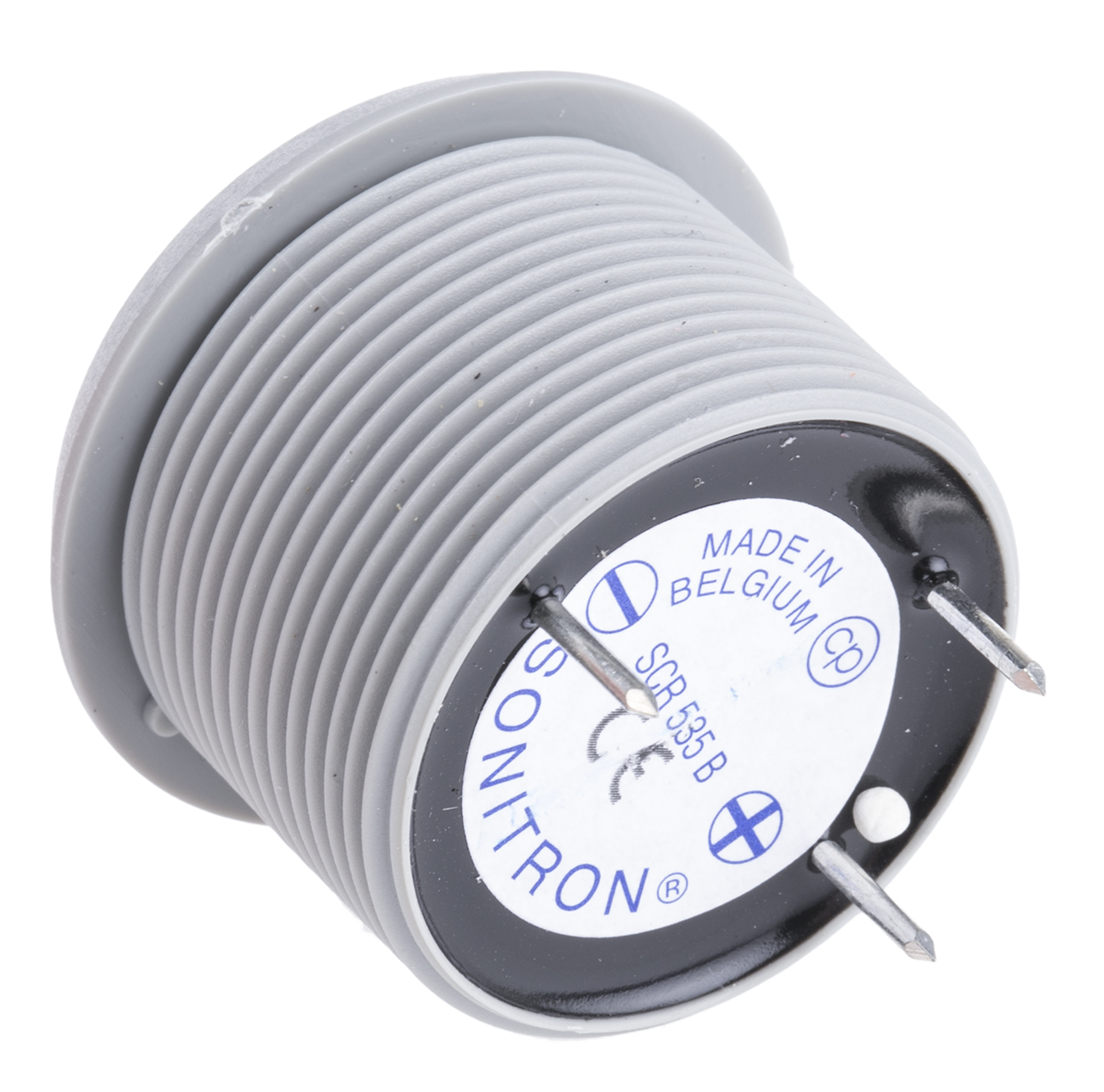

Panel hole mount pulsed tone buzzer PCB pins
Panel hole mounting
Pulsed tone buzzer
PCB pin type connections
High output levels
Internal circuitry for dc operation
Pulsed tone buzzer
PCB pin type connections
High output levels
Internal circuitry for dc operation
84dB Panel Mount Multifunction Internal Buzzer, 36.5 (Dia.) x 26mm, 5V dc Min, 35V dc Max
Manufacturer:
Sonitron
Manufacturer Part No:
SCR535B
Enrgtech Part No:
ET13959771
Warranty:
Manufacturer
£ 26.66
Checking for live stock
Mounting Type:
Panel Mount
Minimum Supply Voltage:
5V dc
Maximum Supply Voltage:
35V dc
Sound Level:
84dB
Drive Type:
Internal
Tone Type:
Multifunction
Diameter:
36.5mm
Height:
26mm
Dimensions:
36.5 (Dia.) x 26mm
Minimum Operating Temperature:
-35°C
Maximum Operating Temperature:
+75°C
Maximum Frequency:
4.025kHz
