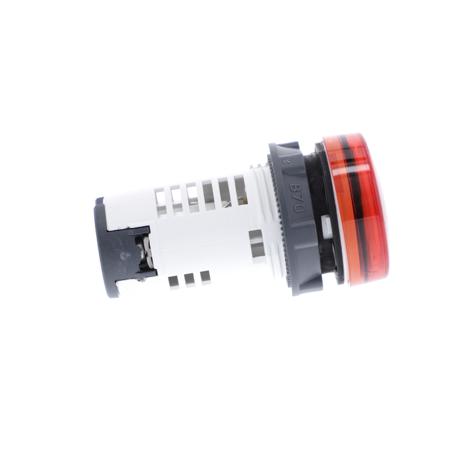

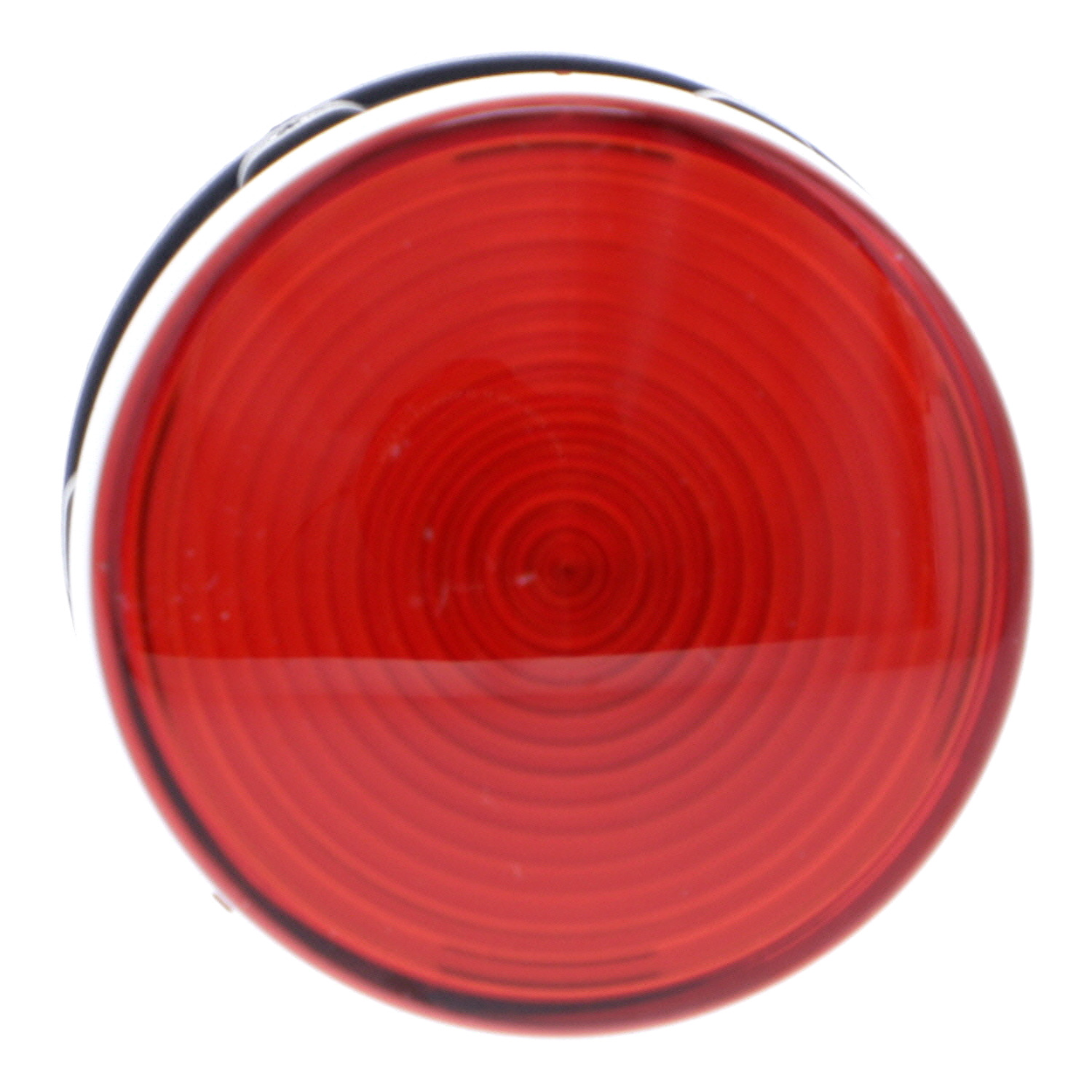

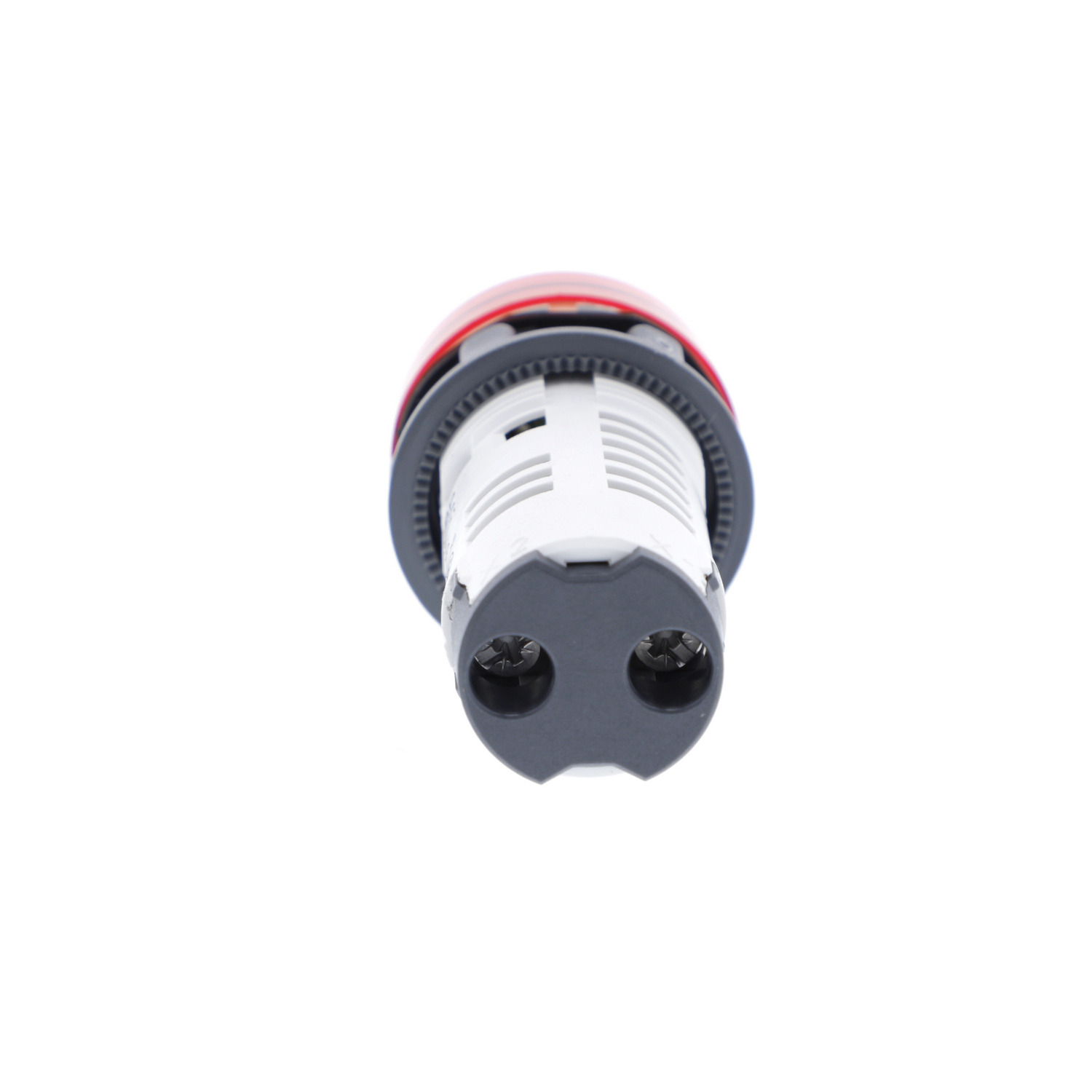

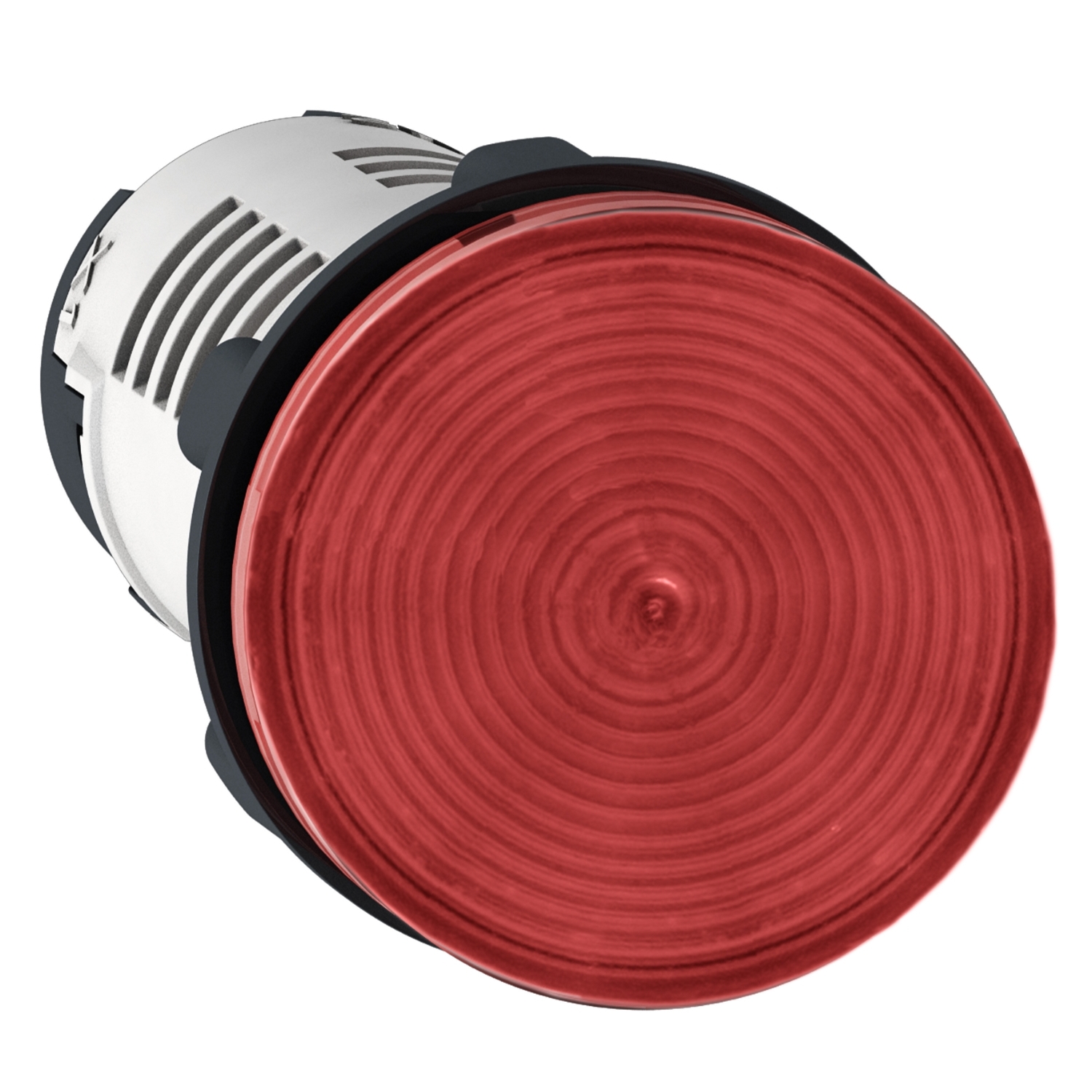

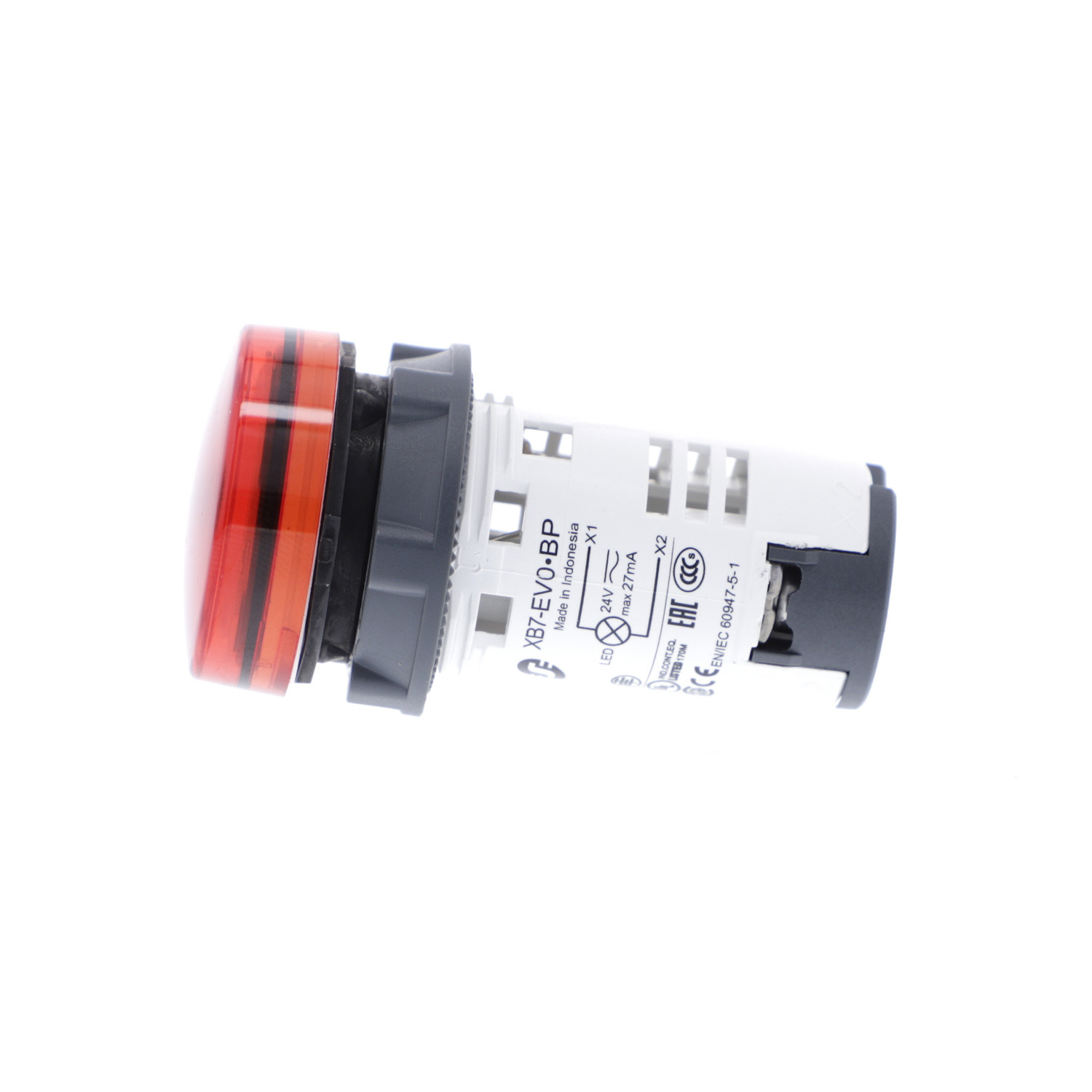

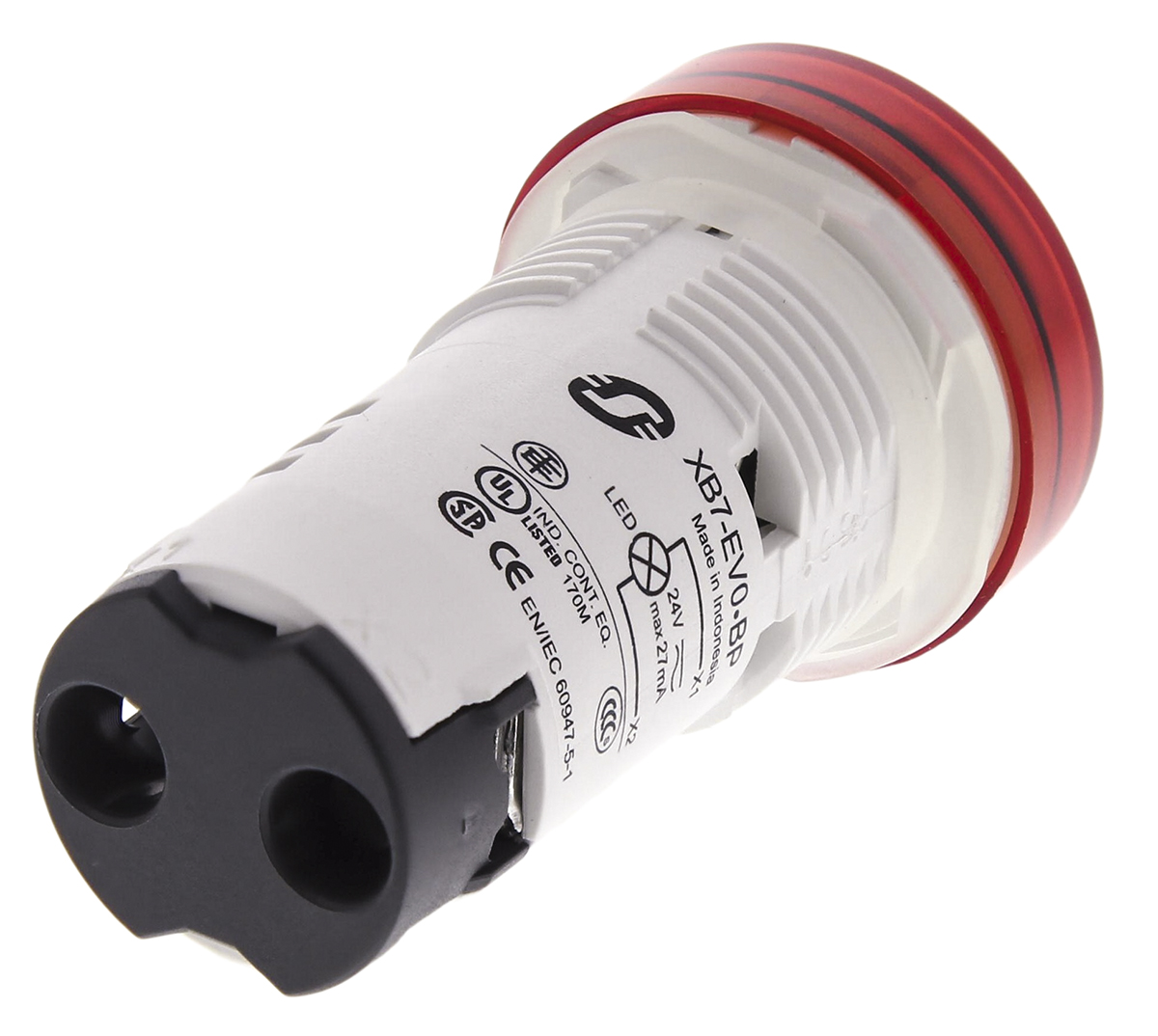

Harmony XB7 Red LED Pilot Light Head, 22.5mm Cutout, IP20 (Rear Face), IP54 (Front Face), 24 V

Better World Verification:

Green Premium

Better World Product:

Yes

Mounting Type:

Panel Mount

IP Rating:

IP20, IP65

Pilot Light Colour:

Red

Series:

Harmony XB7

Voltage Rating:

24V

Body Material:

Plastic

Pilot Light Type:

Pilot Light Head

Range:

Harmony XB7

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=177529&DisplayLogo=False

For Use With:

XAL Series, XALF Series, XB7 Series

Cutout Diameter:

22mm

Lamp Type:

LED

Pilot Light Shape:

Round

Terminal Type:

Screw

Ratings:

AC/DC

HTSUS:

8541.41.0000

RoHS Status:

ROHS3 Compliant

Termination Style:

Screw Terminal

REACH Status:

REACH Unaffected

Current:

20mA ~ 27mA

Millicandela Rating:

-

Panel Cutout Dimensions:

0.89" (22.50mm)

Type:

LED

Panel Cutout Shape:

Round

Lens Style:

Round with Convex Top

Viewing Angle:

-

Wavelength - Peak:

-

Lamp Color:

-

Manufacturer:

Schneider Electric

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Lens Color:

Red

standardLeadTime:

5 Weeks

Ingress Protection:

IP20, IP65, NEMA 4, 12

Features:

-

Lens Size:

29.00mm Dia

Lens Transparency:

-

Series:

Harmony XB7

Packaging:

Box

Voltage:

24V

ECCN:

EAR99
