Schneider Electric XB5FVG1

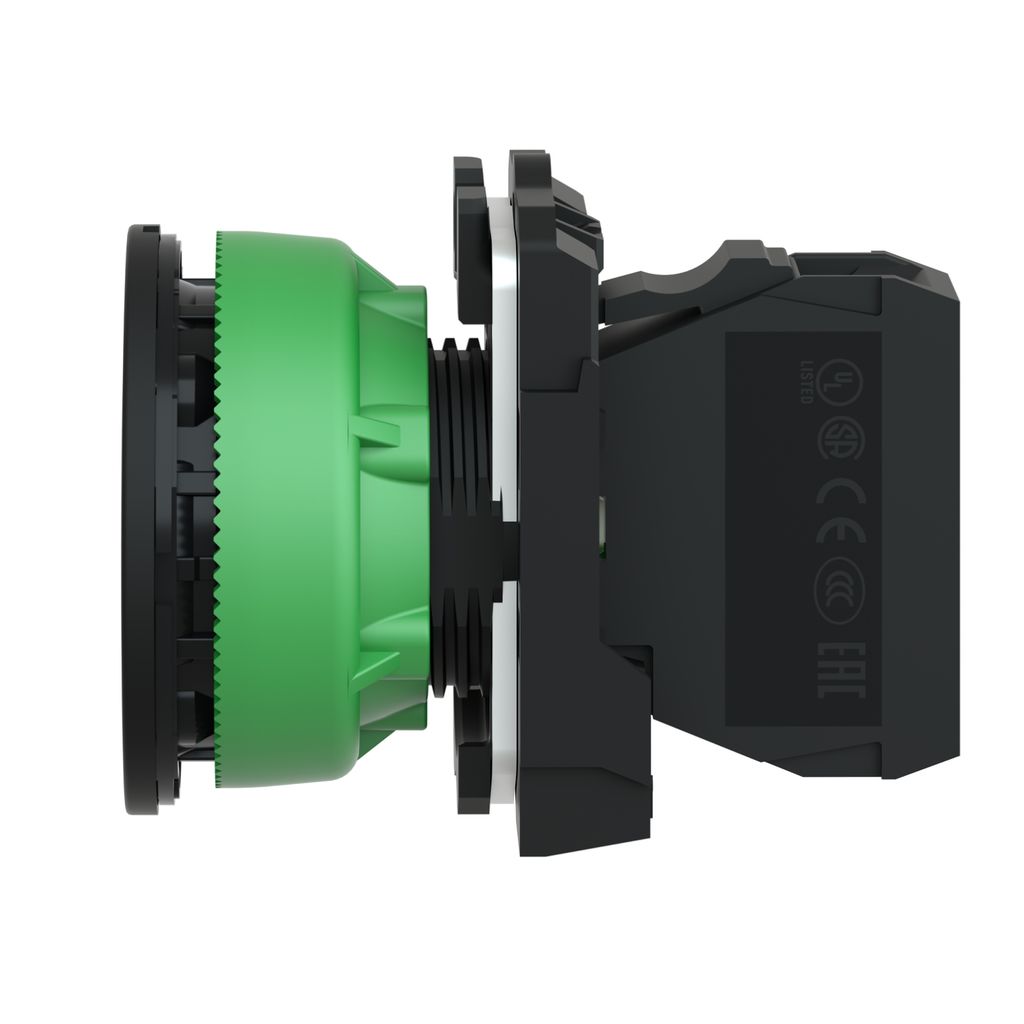

This flush mounted pilot light is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 110 V to 120 V AC. Customized marking option through web customization tool is available in Schneider Electric website. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. It has a plain lens and the source of light is a universal LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and white. The bezel and the fixing collar is plastic. The weight of this pilot light is 38 grams, height is 42 mm and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
Operating temperature from -40°C to 70°C High chemical robustness High vibration resistance with shake-proof terminal screws Large set of accessories to customize your panels Various types of connection are available: screw clamp, connector, Faston connector, spring terminal, or printed circuit board. A wide choice of contact blocks for general purpose or specific applications (low current, standard, or high power switching) Benefits High performance in chemical environments (cleaning solvents, alcohol, detergent, cutting oil, milk) Attractive and affordable flush mount versions, stylish and easy to clean Flexibility and adaptability through modular design Simplicity and speed of installation Wide offer providing a solution for all of your applications Applications General purpose offer covering all segments and applications:Industry Machines and control panels in packaging, material handling, pumping… Ideal in extreme environments: food and beverage, marine, etc. Building and infrastructure Energy distribution panels, public works, restaurants, commercial buildings, airports, etc.
Flush mounted pilot light - complete - 110...120V – white
