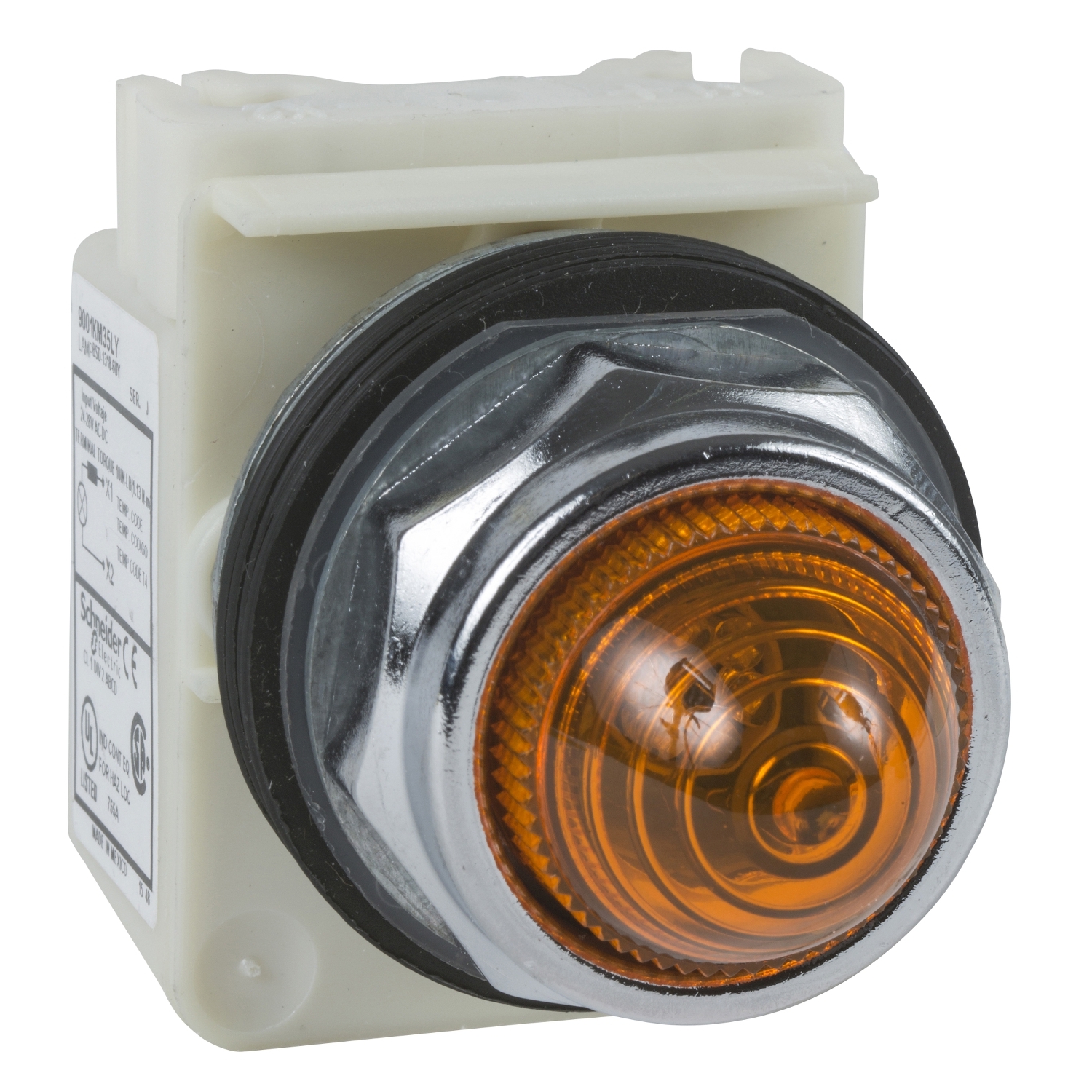

Schneider Electric Harmony 9001K Series Pilot Light, 120V AC/DC Voltage Rating, IP66 - 9001KP38LYA9 This pilot light is a complete unit designed for reliable signalling in industrial applications. With a cutout diameter of 30mm, it features a round shape and an orange lens for clear visibility. Rated for 120V AC/DC operation, this pilot light operates smoothly across diverse environments, adhering to stringent industry standards. Features & Benefits • High luminosity LED ensures bright signalling
• IP66 rating provides excellent protection against dust and water
• Screw terminal type allows efficient and secure connections
• Domed plastic lens enhances visibility from multiple angles
• Built to operate in temperatures ranging from -25°C to 70°C
• Compact dimensions make it suitable for various installations Applications • Ideal for machine and equipment status indication
• Useful in control panels for automation systems
• Employed in factory settings for alert signalling
• Commonly used in electrical switchgear and distribution boards What type of connections does this unit use? It utilises screw clamp terminals, accommodating conductors from 0.22mm² to 1.5mm². This ensures a secure and compliant connection following IEC standards. Can it function in extreme temperature conditions? Yes, it is designed to operate effectively in ambient temperatures between -25°C and 70°C, making it suitable for various environments. What is the significance of the IP66 rating? The IP66 rating indicates robust protection against dust ingress and high-pressure water jets, ensuring long-term reliability in demanding conditions. How does the LED technology improve visibility? The use of high luminosity LED technology provides brighter and more energy-efficient lighting compared to traditional bulbs, enhancing visibility in low-light situations. Is there a specific mounting method recommended for this product? It is designed to fit a cutout diameter of 30mm, and it can be mounted in any position, offering flexibility during installation.
