Modicon M340 Analogue Input/Output The BMX AMM 0600 module is a high-level analogue input/output module with 4 non-isolated voltage or current inputs and 2 non-isolated voltage (±10V) and current outputs. The module offers: Protection of the module against overvoltages Conversion of digital signals (11 bits or 12 bits depending on the range) to analogue signals Conversion of application data into data that can be used by the digital/analogue converter Module monitoring and fault indication to the application: Converter test, range overshoot test, watchdog test For each input, the BMX AMM 0600 module offers the following ranges: Voltage ±10V, ±5V, 0 to 10V, 0 to 5V and 1 to 5V Current 0...20mA, 4…20mA and ±20mA, depending on the choice made during configuration Schneider Electric Modicon M340 PLC Equipped with astounding memory and performances, this featherweight version will inspire your applications with new momentum. Designed to operate in total synergy with other Schneider Electric devices, Modicon M340 a building block towards your total solution. Performance Data rate: 20kb/s to 1Mb/s (bus length dependent) Internal RAM capacity: 4Mb (3584kb of program memory); 256kb of data memory Compact design 3 communication ports integrated in the processor Mounting in low depth cabinet (High-density discrete I/O modules with 64 channels in a 32mm wide format Communicative, with its integrated ports CANopen machine and installation bus Ethernet TCP/IP network - Transparent Ready Modbus serial link or character mode Remote access via STN, GSM, Radio or ADSL Expert Counter modules with ready-to-use functions Function block li...

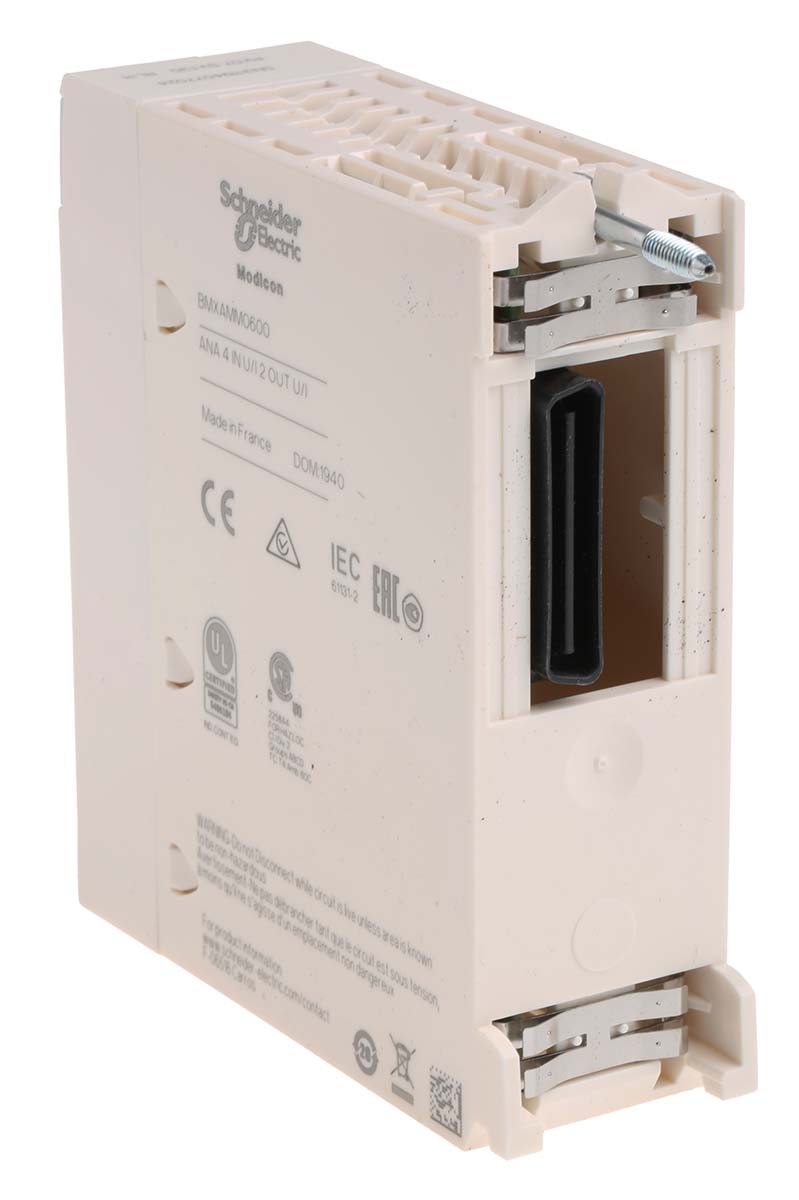

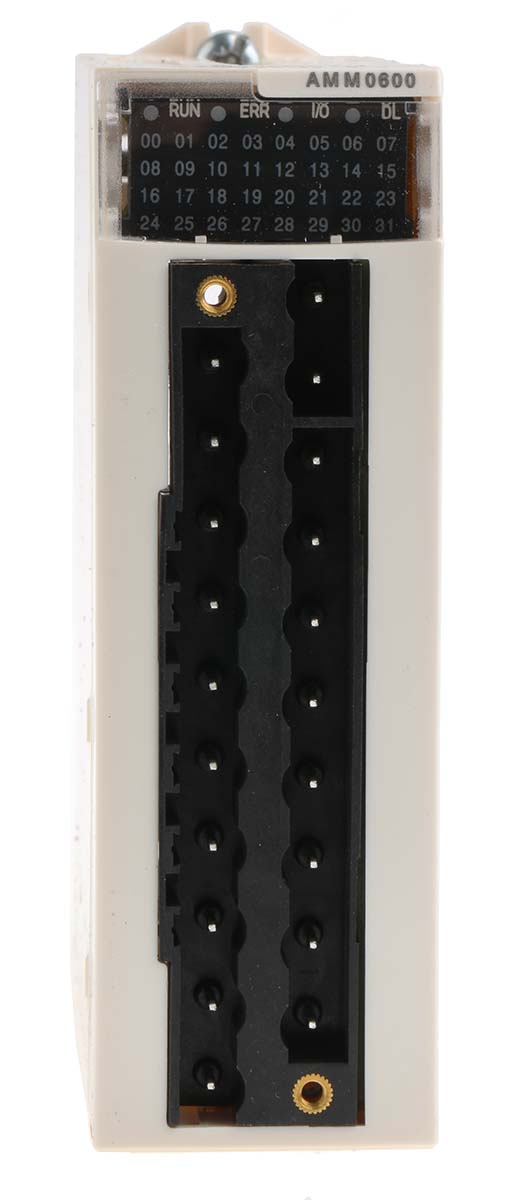

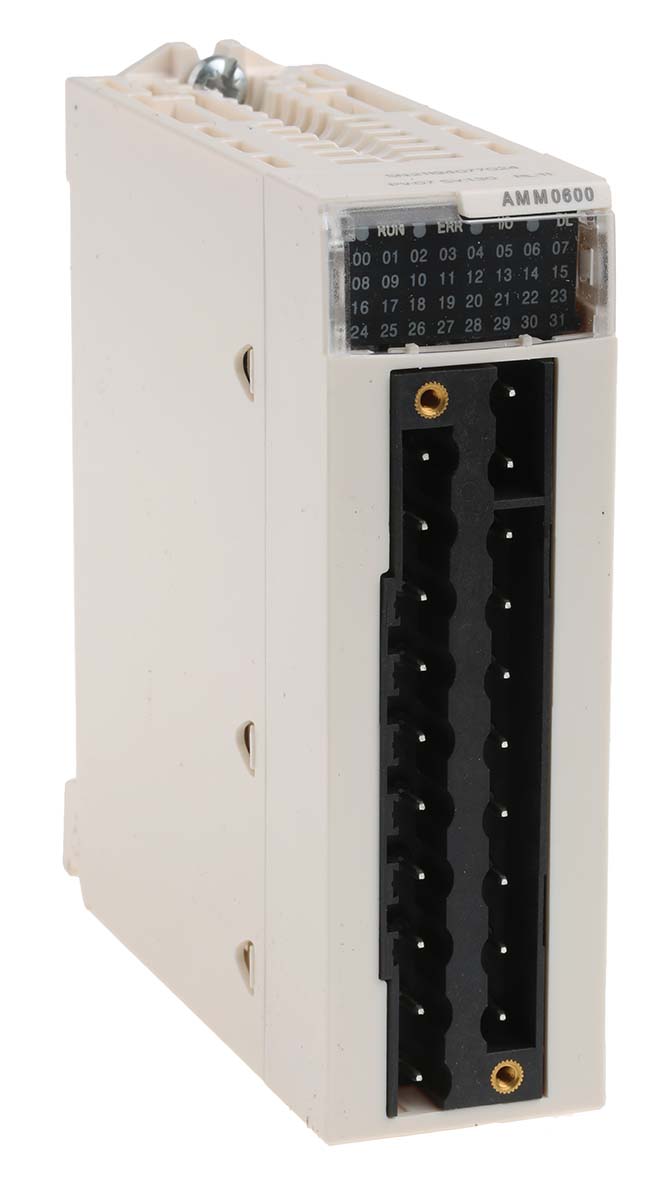

Schneider Electric BMXAMM0600, Modicon M340 Series PLC I/O Module 4 Inputs, 2 Outputs 0 → 20 mA 24 V dc

Manufacturer:
Manufacturer Part No:
BMXAMM0600
Enrgtech Part No:
ET13864306
Warranty:
Manufacturer
£ 619.97
Checking for live stock
Number of Outputs:
2
Better World Verification:
Green Premium
Better World Product:
Yes
Dimensions:
307.6 x 100 x 140 mm
Output Current:
0 → 20 mA
Series:
NLC-IO-6I-04QTP-01A
Accessory Type:
PLC I/O Module
Output Type:
Analogue
Range:
Modicon X80
Input Type:
Analogue
For Use With:
Modicon M340
Maximum Operating Temperature:
+60°C
Number of Inputs:
4
pdf icon
Datasheet(Technical Reference)
pdf icon
BMXAMM0600 Product Data Sheet(Technical Reference)
pdf icon
BMXAMM0600 Catalogue Extract(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
